DS18 MRX1

DS18’s HYDRO MRX1 is the ultimate all-in-one marine head unit for power, precision, and durability.

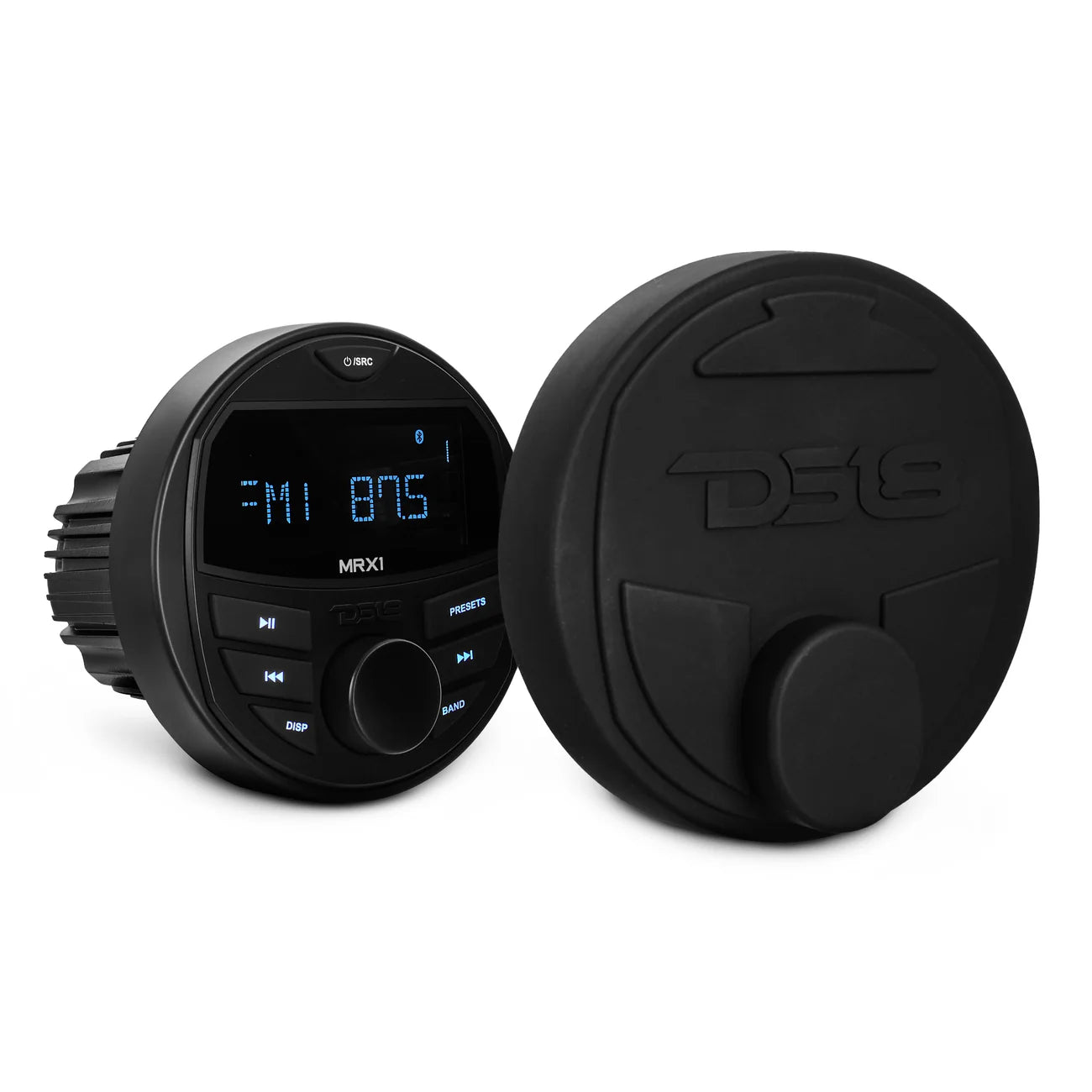

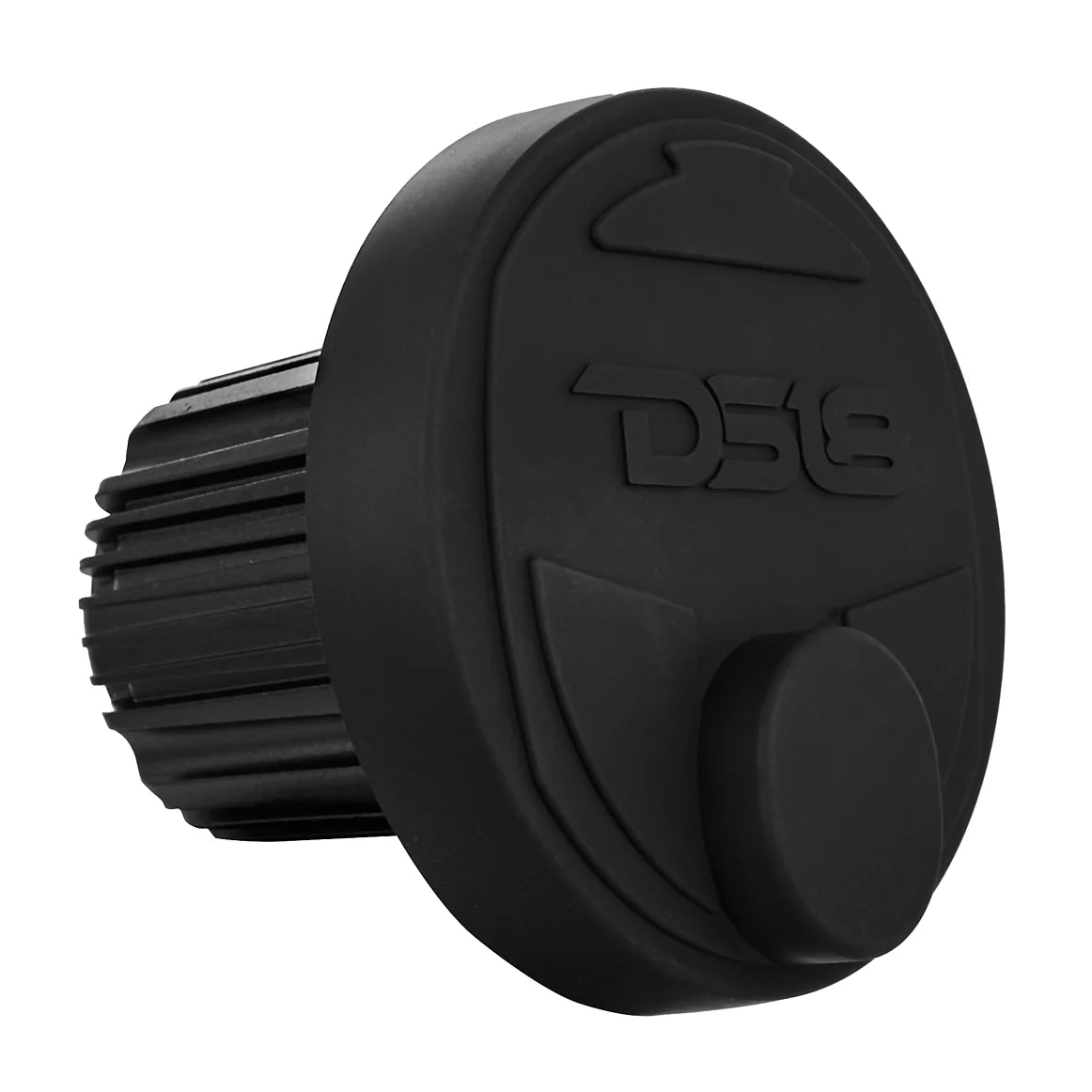

This beast handles whatever you throw at it with its IP65 water resistance, UV protection, salt spray shield, and conformal coating. Plus, it comes with a silicone cover for extra protection when not in use.

With V4.2 Bluetooth pairing capabilities, you can easily connect your phone or any Bluetooth-enabled device to play music directly through the MRX1. Experience precise sound control with adjustable bass, treble, balance, fade, EQ, loudness, and Subwoofer crossover settings. Choose from preset EQ options like FLAT, POP, ROCK, CLASSICAL, or turn off the EQ altogether for a customized sound experience. Adjusting settings has never been easier thanks to CT sync, which allows you to fine-tune time settings using over-the-air radio frequencies. Not only does the MRX1 deliver superior sound quality and functionality, but it also features a wideband AM/FM receiver for enjoying all your favorite radio stations.

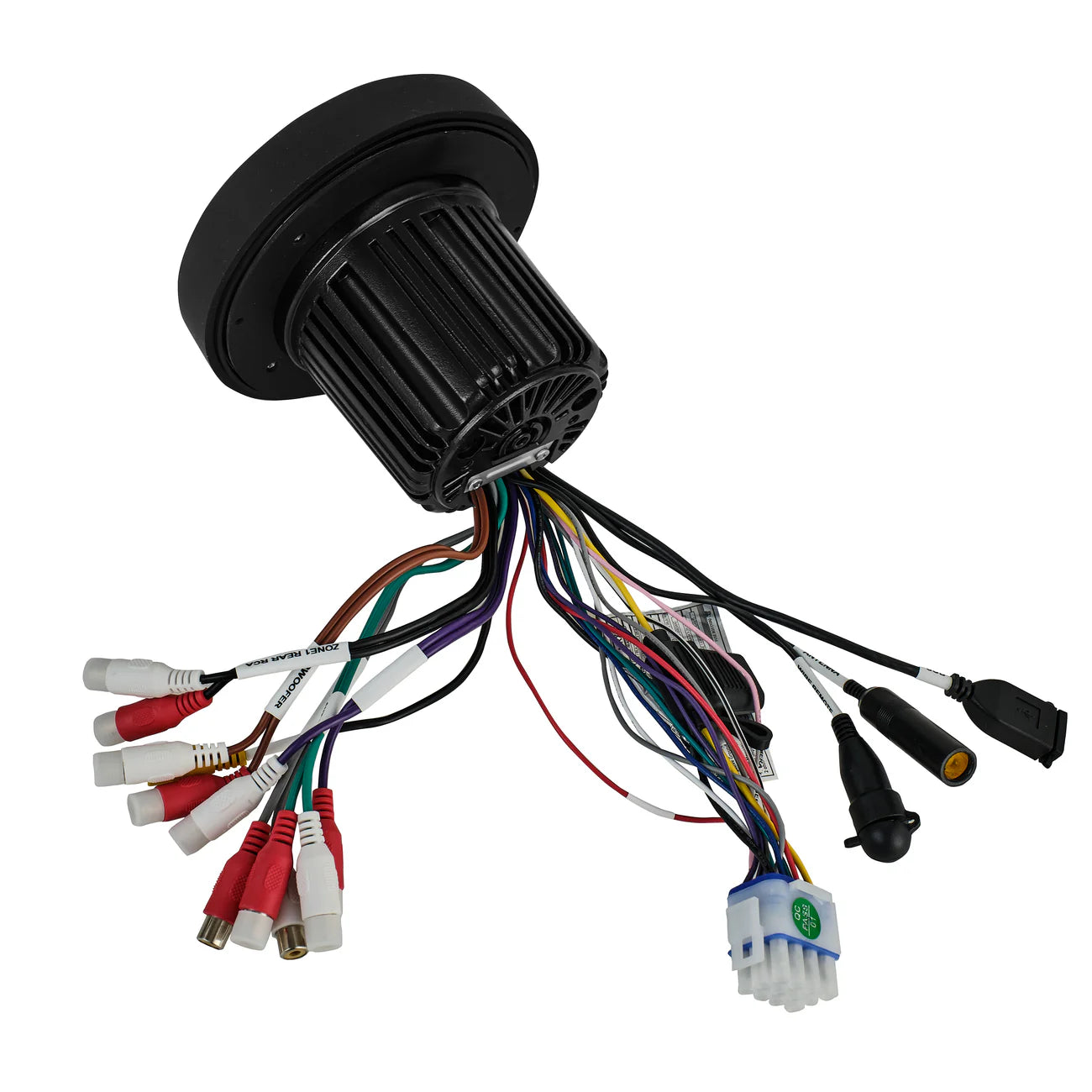

The MRX1 boasts three outputs for easy integration into fully applied systems, including front, rear, and sub high-quality outputs. The USB port not only enables music transfer but also charges your device at a rate of 2a. The MRX1’s 4 ohm load, offers 4x15W RMS, while a 2 ohm load offers 4x20W RMS. Prepare to be blown away by the MRX1's unmatched sound output. With 4v preamp outputs, you can expect exceptional audio quality with the voltage to push it.

The MRX1 is the ultimate companion for those seeking exceptional sound.

SPECS

SKU
MRX1
AM/FM, Antenna
Yes
Audio Imput (L+R)
Yes
USB for music & charging
Yes, Charging 2A
Wired Remote input
Yes


Outputs - Rear Chassis

Speaker Power Plug
Yes, Molex Plug 12 pin Water Resistant
Audio output Front (L+R)
Yes
Audio output Rear (L+R)
Yes
Subwoofer output RCA
Yes
Sub out low pass filer
Yes, 80/120/160Hz, Gain 0-12


Media Playback

USB (64G memory)
Yes
Bluetooth v4.2
Yes
BT streaming ID3 Tag info
Yes


Other Features

Operating Voltage
12V
Preamp Output
4V RMS differential
LCD Display Tape
Negative VA
Blacklight
Yes
IR Remote
No
Low Battery Beep
Yes
EEPROM
Yes
Conformal Coating
Yes
IP Rating
IP65
UV Resistance
Yes
Salt Spray Resistance
Yes


GENERAL

Power Supply Requeriments
DC 12 Volts, Negative Ground
Chassis Dimensions
115(W) x 115 (D) x 74 (H)
Bass (at 100 Hz)
±10 dB
Treble (at 10 kHz)
±10 dB
Maximum Output Power
4 x 40 watts
RMS continuous power
4 x 15 W @ 4 ohm
Current Drain
10 Ampere (max.)
Protective cover
Silicone Cover


MEASUREMENTS

Product Weight
2 lbs
Product Dimensions
6 x 6 x 6.75
M/C Weight
26 lbs
M/C Dimensions
18.5 x 12.75 x 14
M/C QTY
12
Sold In
Piece
