Product Overview

Description

Product Overview

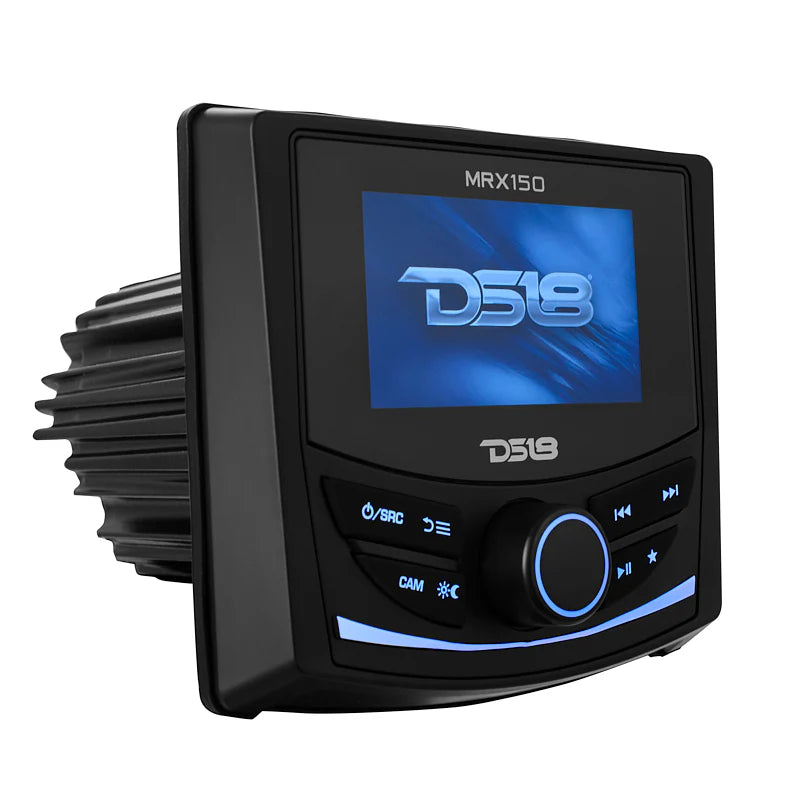

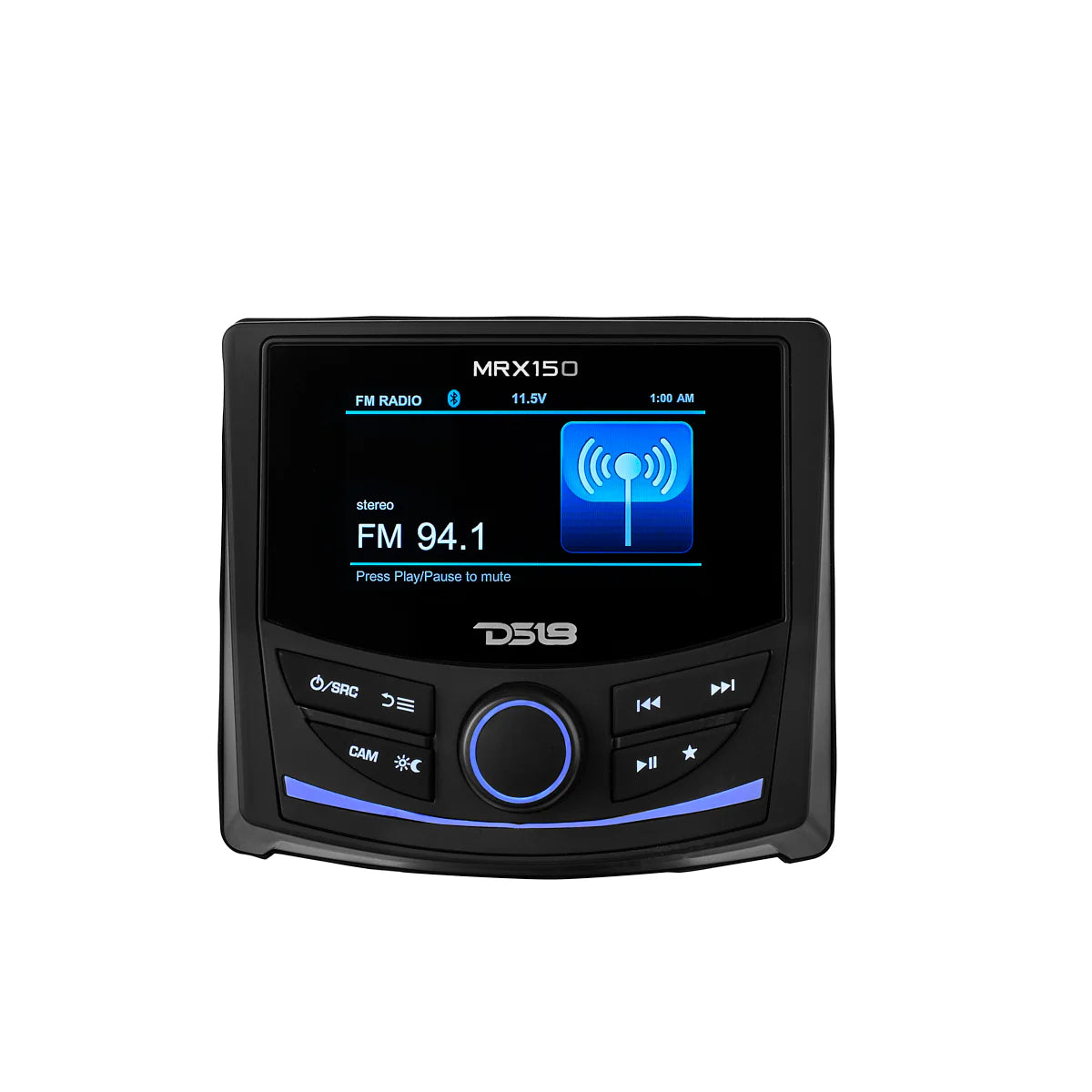

DS18 MRX150

Marine and Powersports Head Unit

DS18’s MRX150 is made to handle rough rides and loud sound. It gives you full control of your music on the water and off-road.

Weather-Ready Performance You Can Trust
The MRX150 has an IP65 waterproof rating: that means it can handles splashes, rain, and spray from any angle. Its Gorilla Glass screen is strong and resists scratches and cracks. It’s also protected from rust and salt damage. This head unit is made for all marine and powersports applications.

Audio Control, Customized Your Way
You can stream music wirelessly with Bluetooth 5.0. The MRX150 also comes with AM, FM, and Weather Band radio. It saves up to 37 radio stations and allows for two audio zones with separate controls for bass, treble, and volume in each zone. There are eight channels of pre-amp outputs that send strong, clear sound to your amplifiers and speakers.

Built Tough, Plays Loud

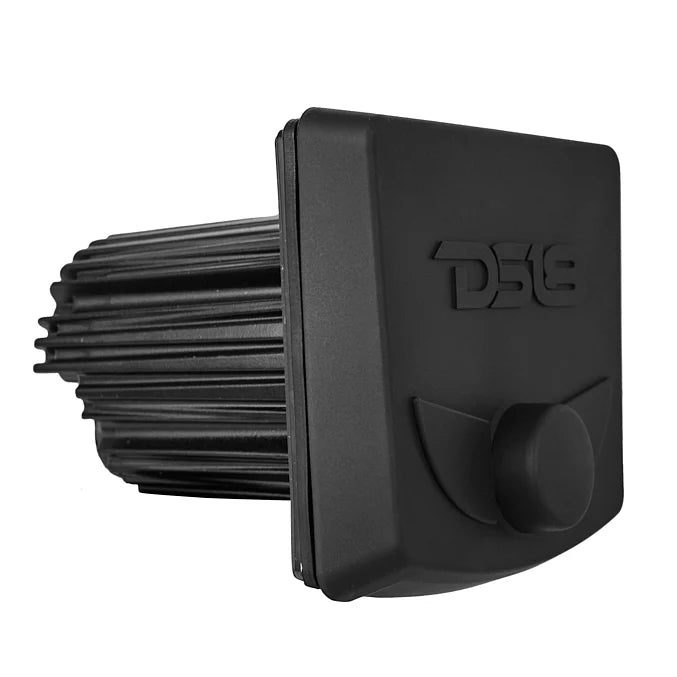

The MRX150 sends out four channels at 25W each to power marine and powersports speakers. It has a voltmeter built in, so you can check your battery’s power. When you’re done riding, a silicone cover protects the unit.

Take control of your marine or powersports sound system today with DS18’s MRX150!

GENERAL SPECIFICATIONS

SKU
MRX150
Operating Voltage
10.5 – 16 Volts
Current Drain
15 Ampere / (Max)
Low Voltage Warning Alert
YES (< 10.8V)
Waterproof Rating
IP65 / Silicone Cover Included
UV/Salt Protection
YES
Buttons
Rubber + RGB Backlit (Blue Color)


DISPLAY

Screen Panel
Gorilla Glass with OCA Full Bonding
Type
TFT LCD With IPS


AUDIO

RMS
4 x 18W @ 4ohm (14.4v)
RMS
4 x 25W @ 2ohm (14.4v)
MAX
4 x 50W @ 2ohm (14.4v)
Minimum Load
2 ohm Stable per Channel
Frequency Response
20Hz to 20KHz
RCA Pre-Out Voltage
4 Volts
Output Impedance
500 ohm
Equalizer
2 Bands / Bass 100Hz ±10dB / Treble 10Khz ±10dB
Presets
YES (S-Bass / Vocal / Powerful / Clarity)
Subwoofer Control
Level / (-10 to +10)
Audio Zones
2 Zones (Zone 1: Front R+L, Rear R+L / Zone 2: R+L)
Independent Zone Control
YES (Level/Tone)
Audio Input
L+R RCA (Aux Input)


TUNER

FM Frequency Range
87.5 – 107.9 MHz
AM Frequency Range
162.40 – 162.55 MHz
NOAA Weather Band
YES
Tuner Presets
18 FM / 12 AM / 6 WB
Radio Data System
YES (AF/TA/NEWS)
IF
10.7MHz (FM), 450KHz (AM)
Sensitivity
4µV (FM), 36dBuV (AM)
Signal to Noise Ratio
>30dB (FM)
Stereo Separation
>25dB


CONNECTIVITY

BT Version
5.0 + EDR
Audio Streaming
A2DP
USB Compatibility
v2.0
USB Capacity
64 Gb Max
USB Charge Capacity
2.1 Amp
Audio Files Compatibility
MP3, WMA
Remote Control
Wired 3.5mm Jack Input (Compatible with MXRC)


MEASUREMENTS

Product Weight
2.3 lbs
Product Dimensions
6.25 x 6 x 8
M/C Weight
19.5 lbs
M/C Dimensions
13 x 13 x 17
M/C QTY
8
Sold In
Piece
