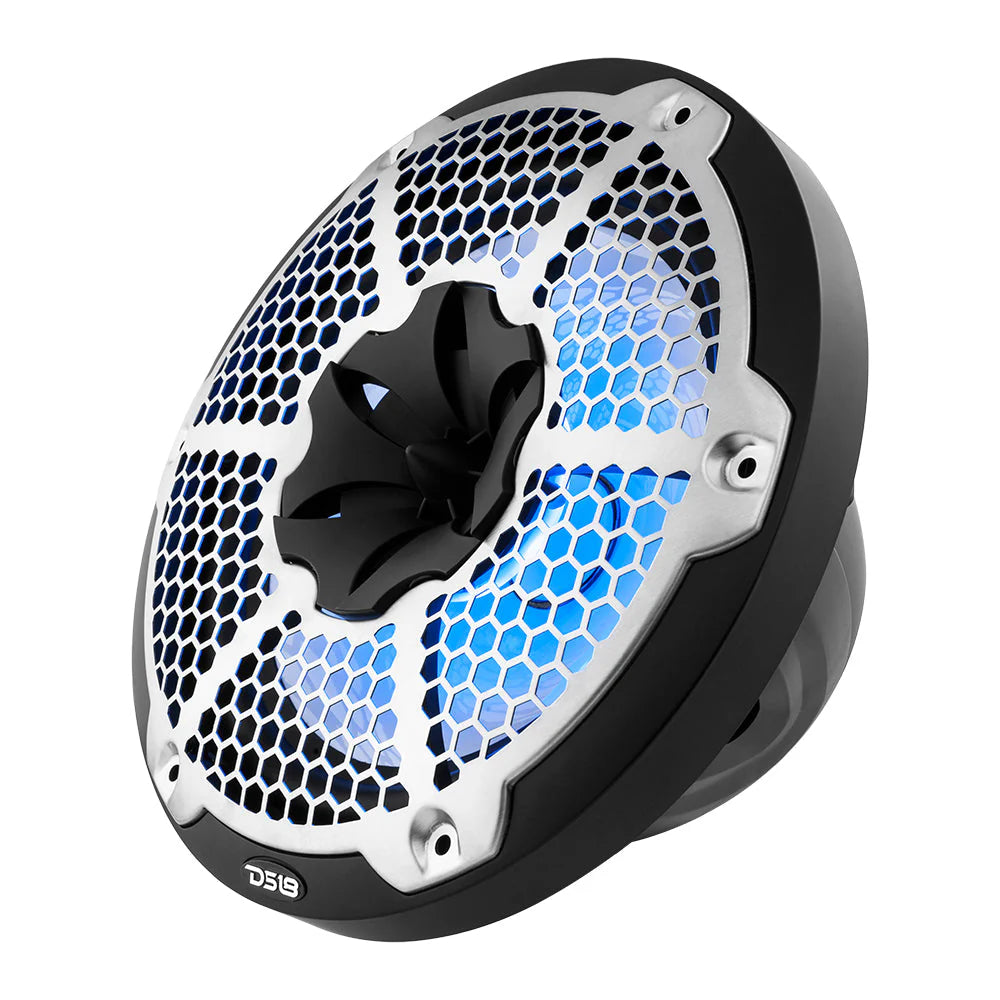

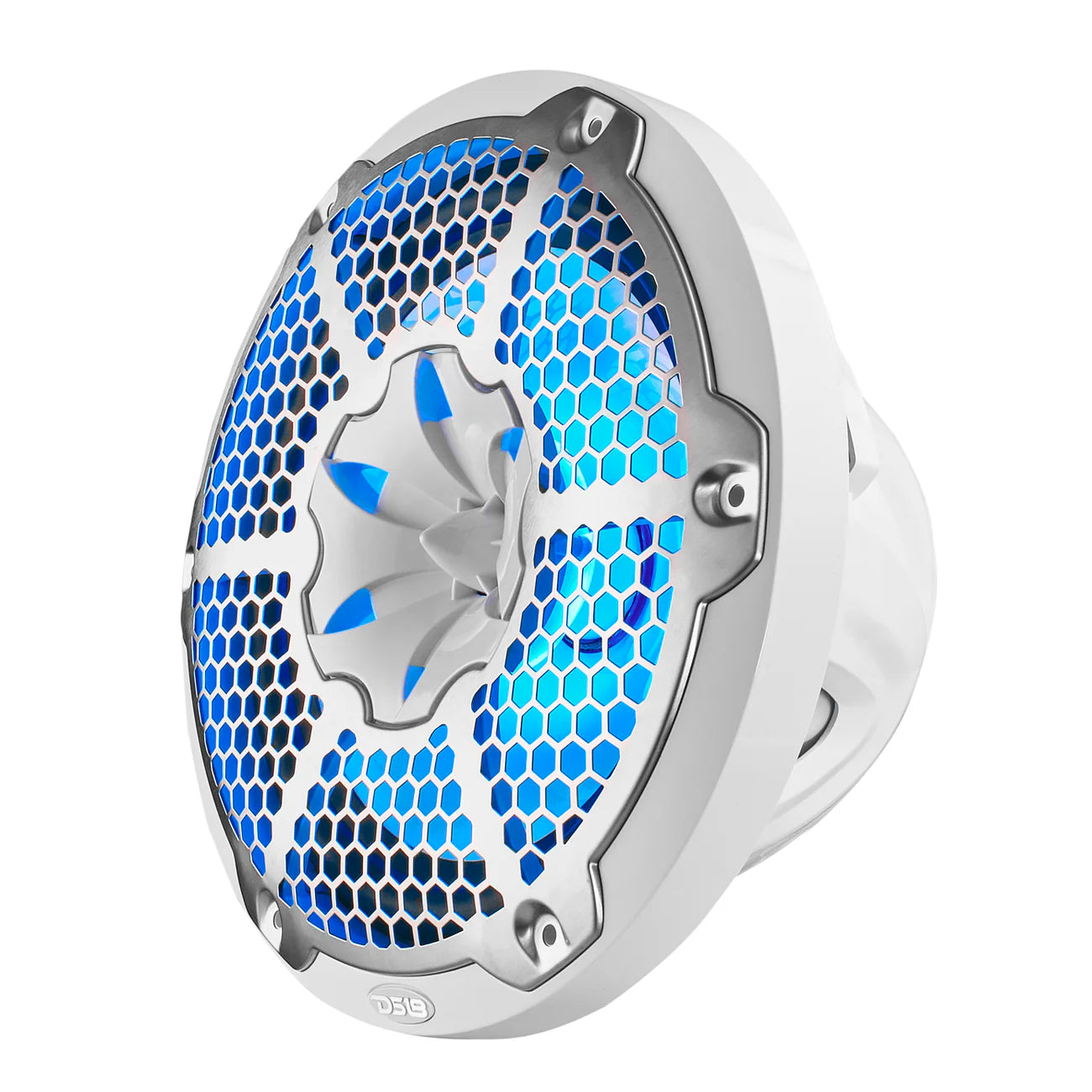

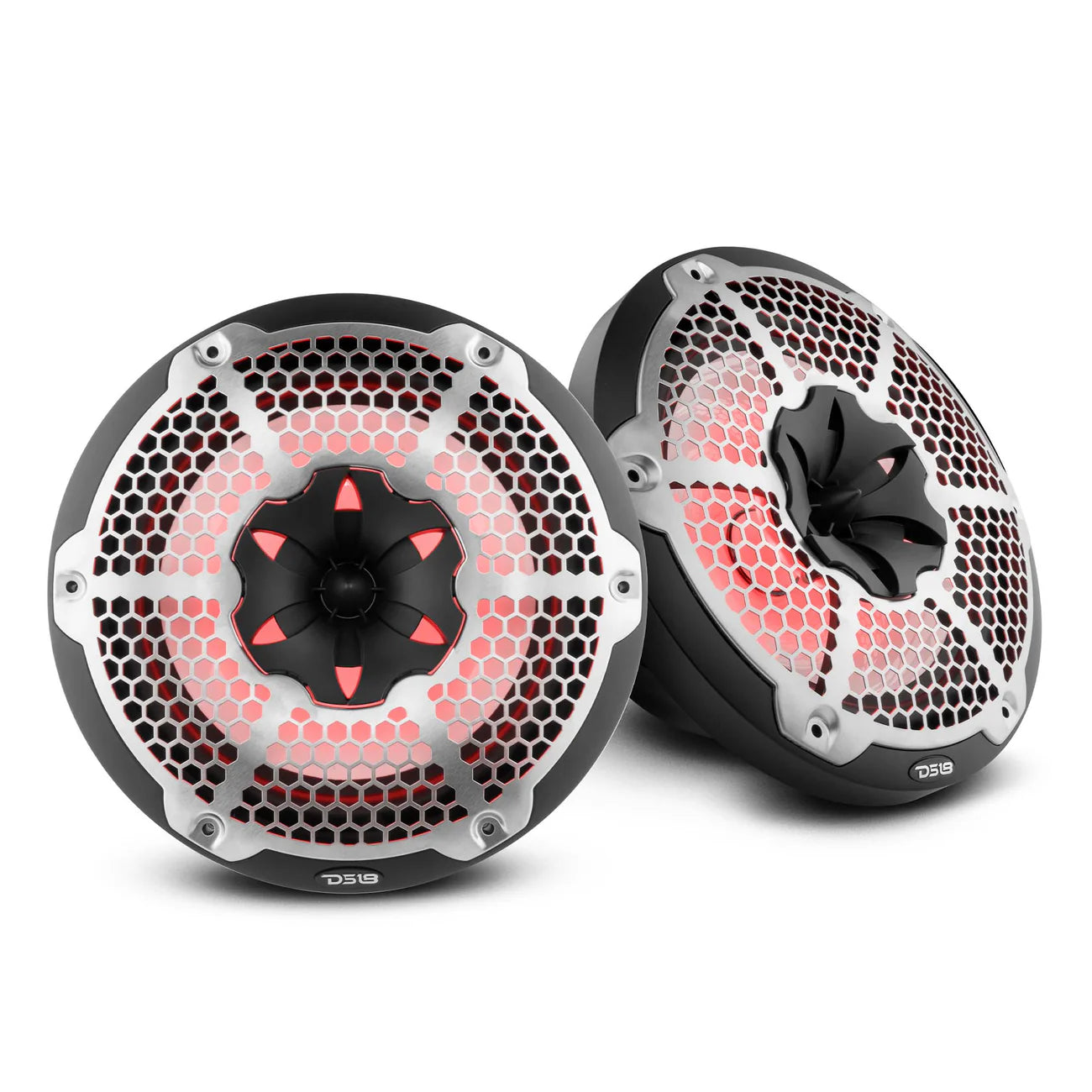

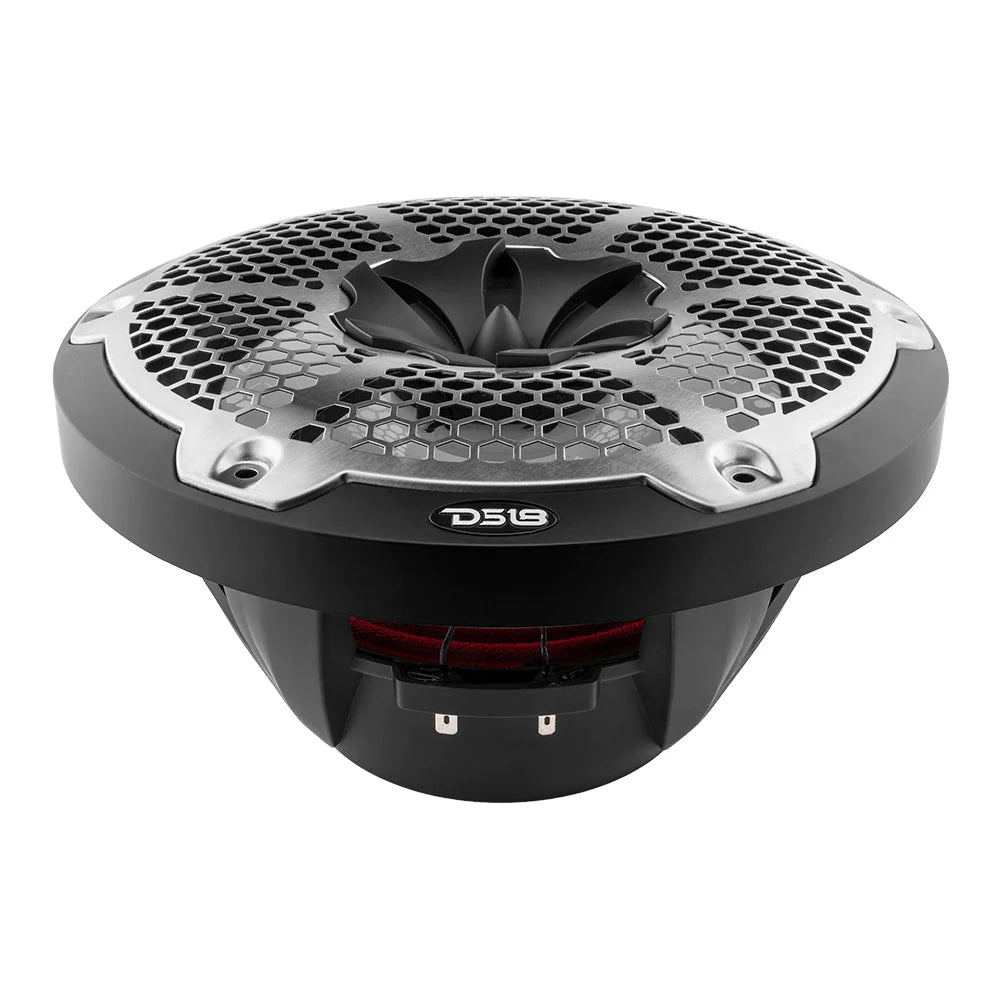

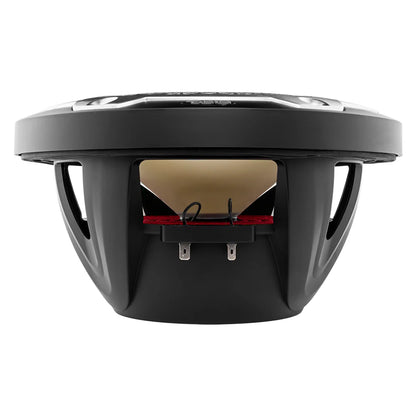

DS18 NXL-10M

10" 2-Way Marine Water Resistant Speakers with Integrated RGB LED Lights 600W

The NXL-10M’s cutting-edge design and impressive features make it the ultimate companion for every marine adventure.
Built for extreme conditions, the NXL-10M is IP65-rated for superior water resistance. Equipped with a 10-inch woofer and integrated tweeter, the NXL-10M offers a wide frequency response 35Hz – 20KHz, guaranteeing deep bass and crystal-clear highs for a truly immersive marine audio experience.

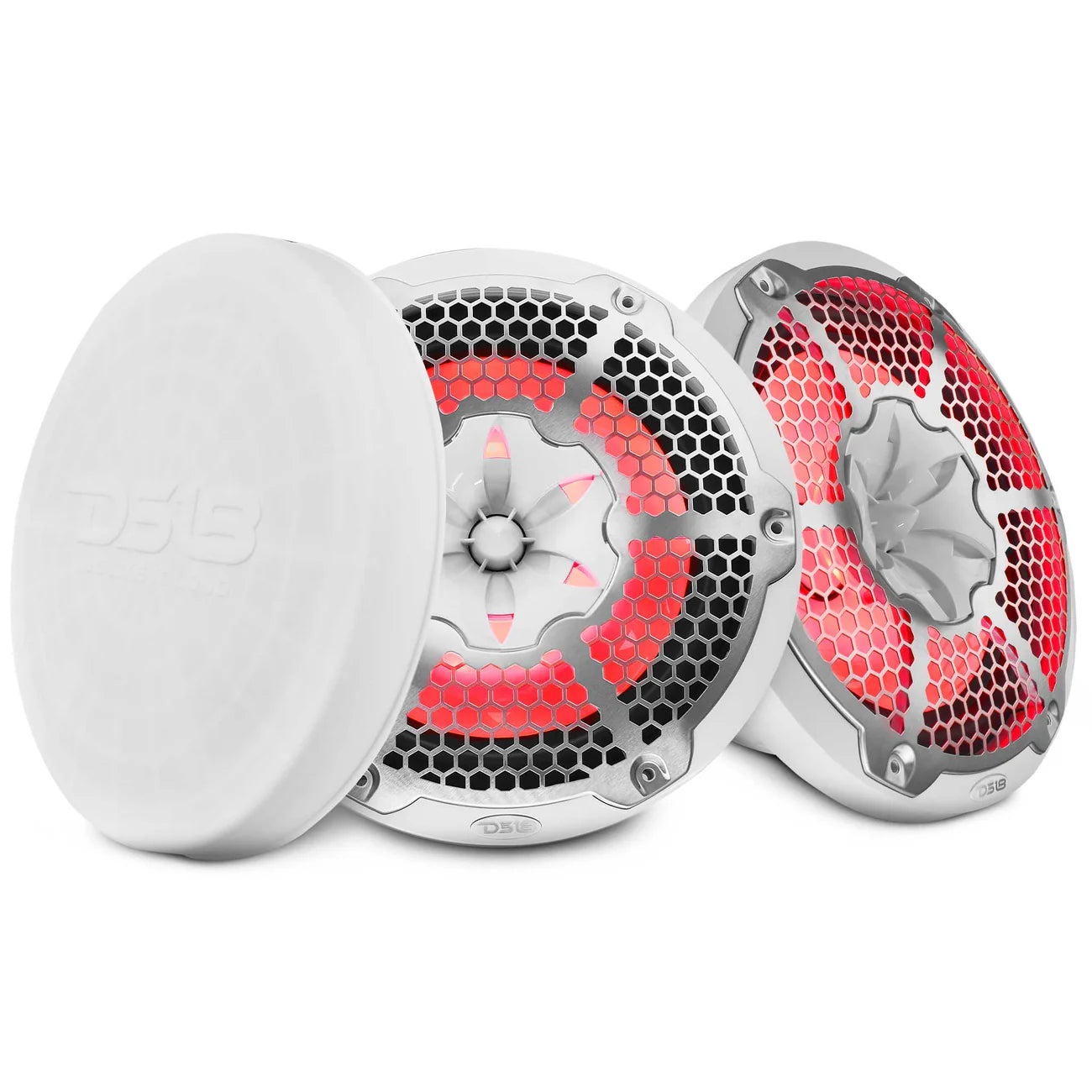

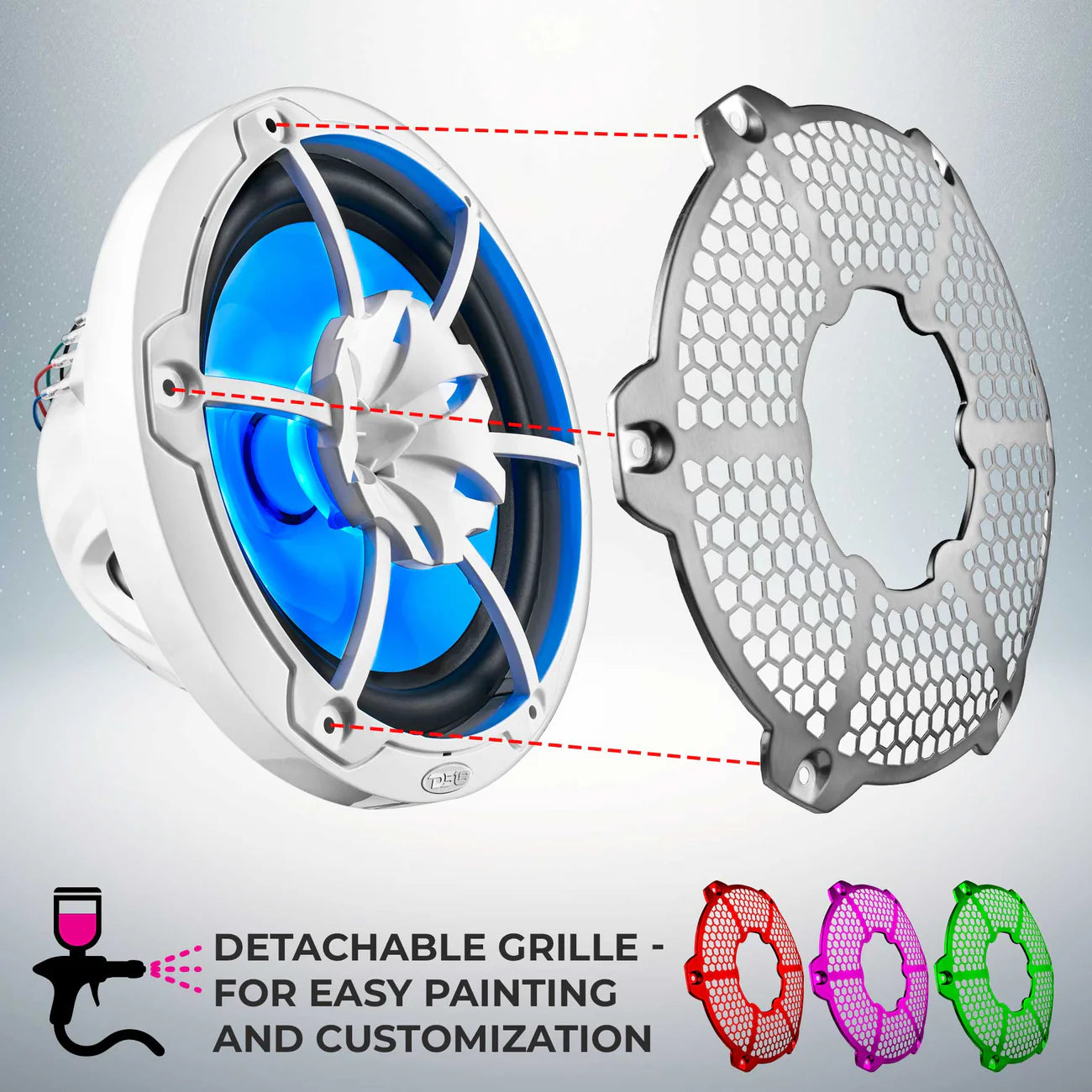

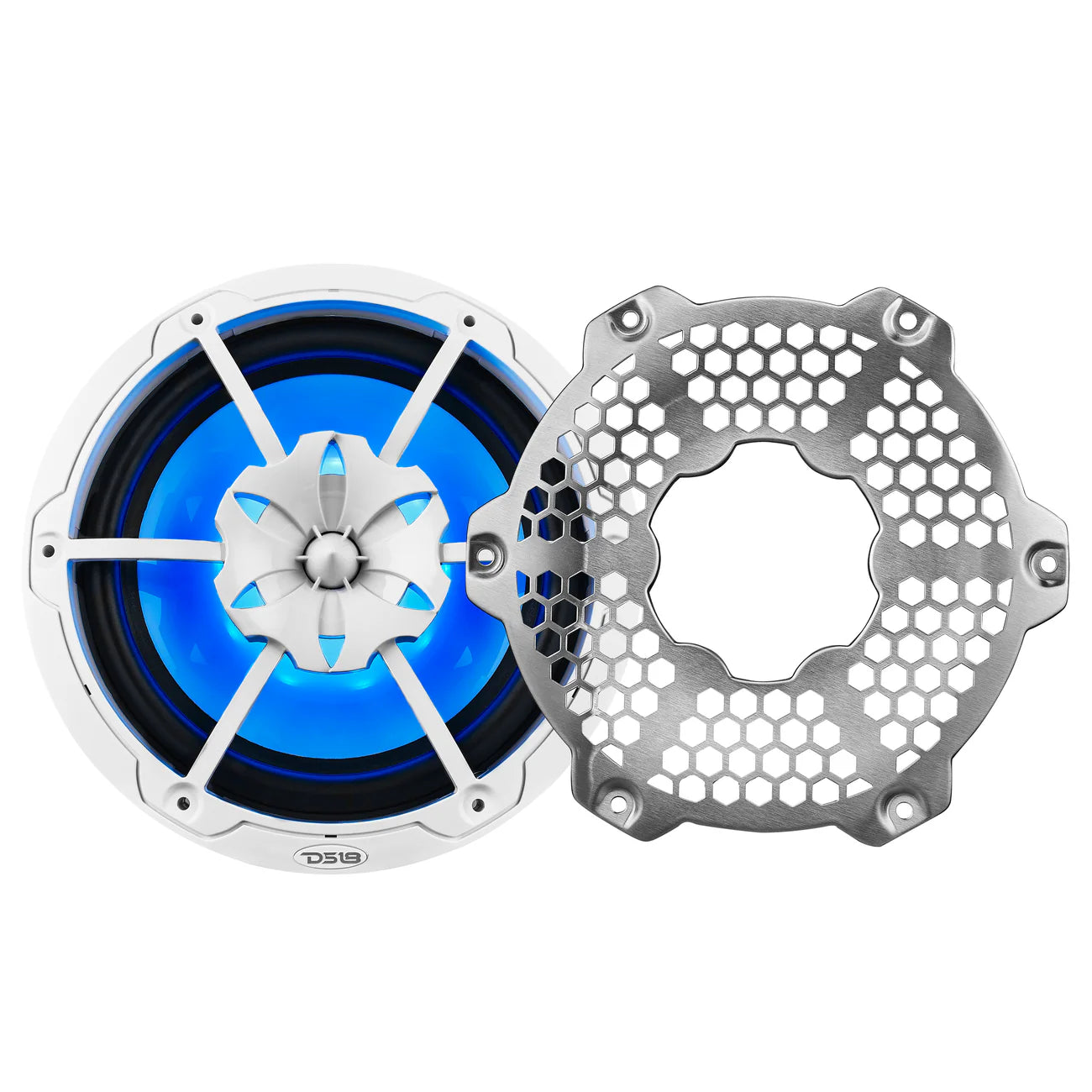

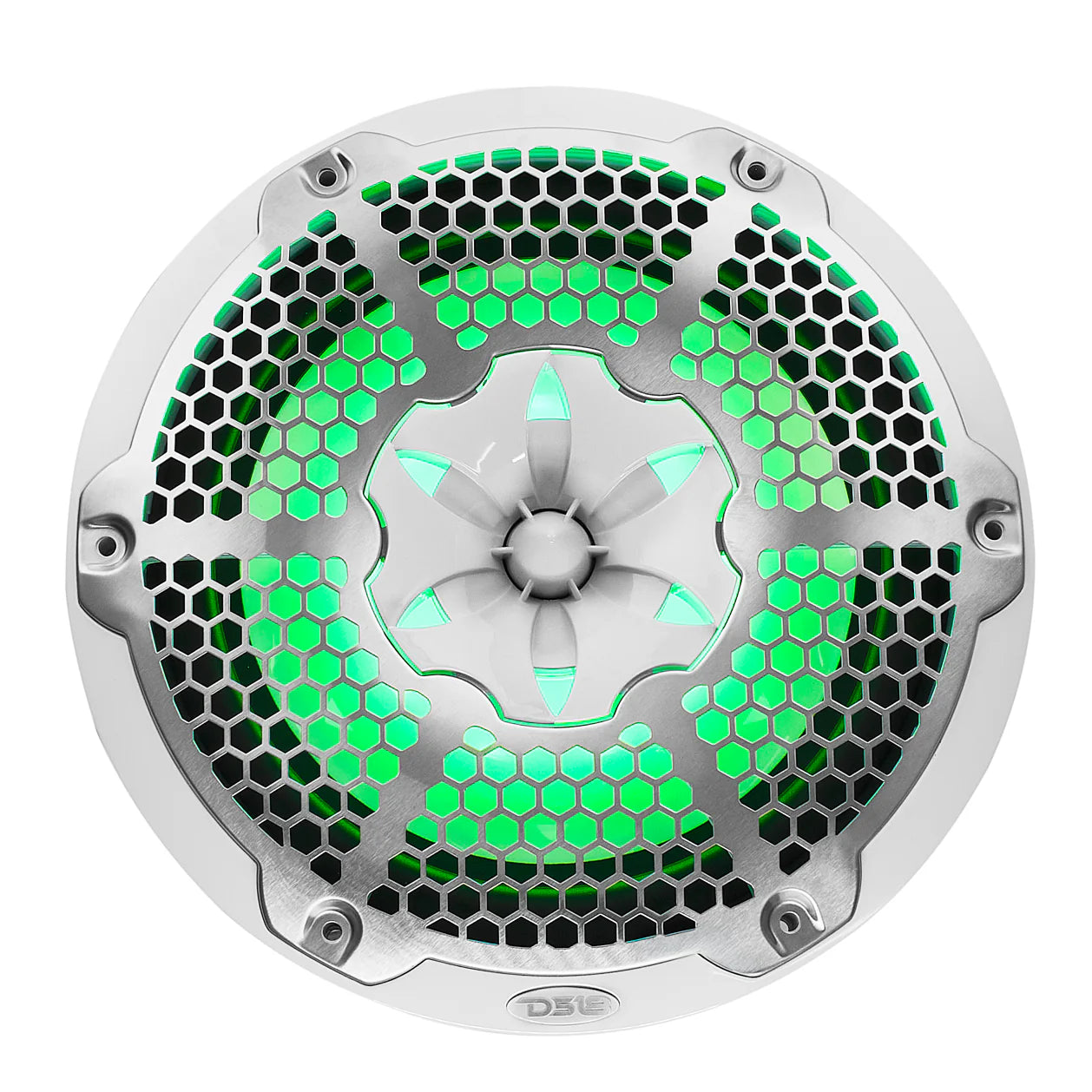

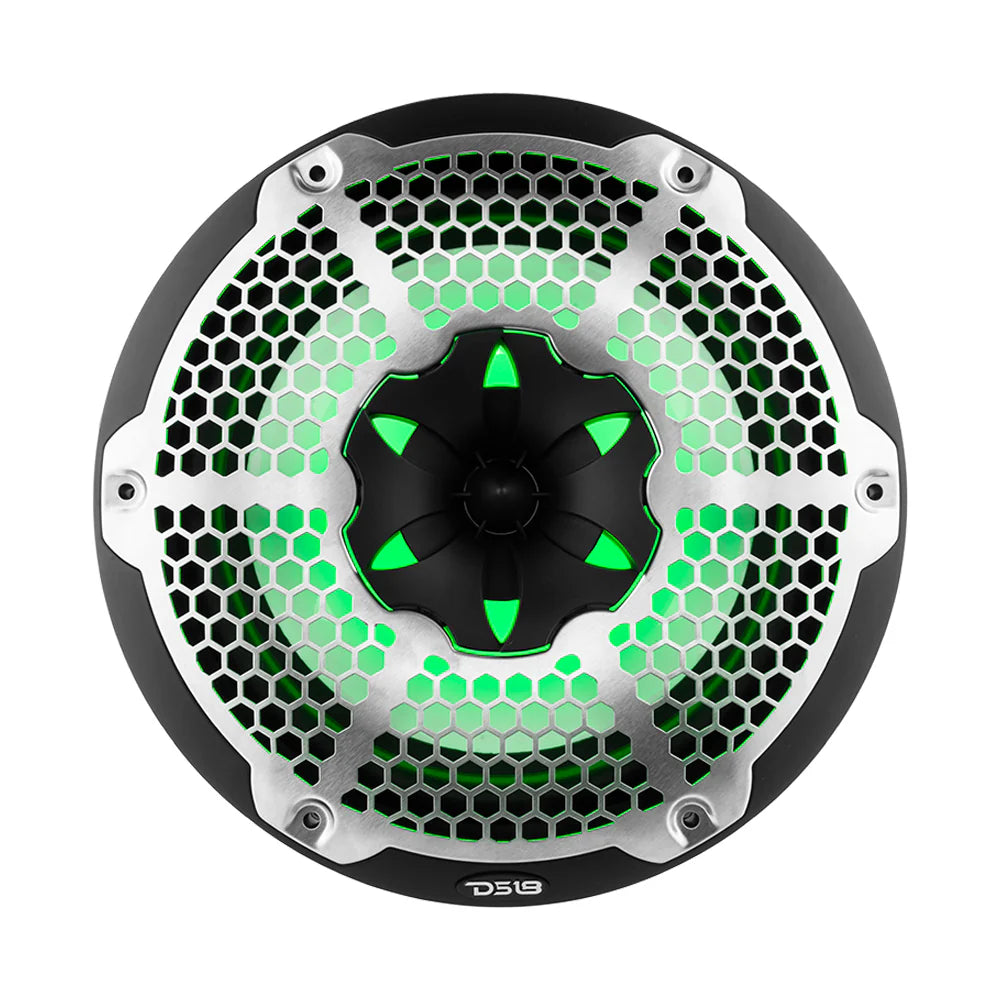

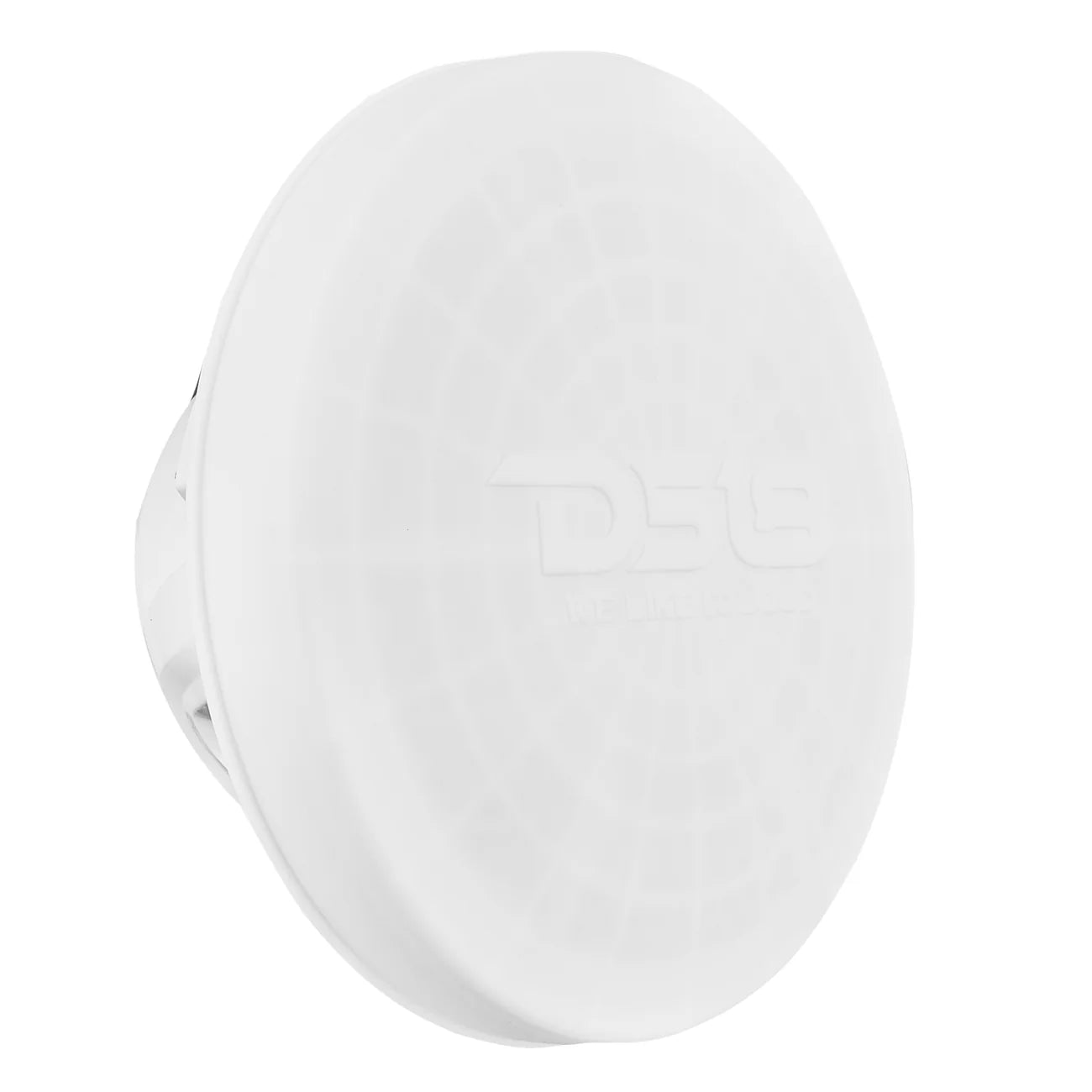

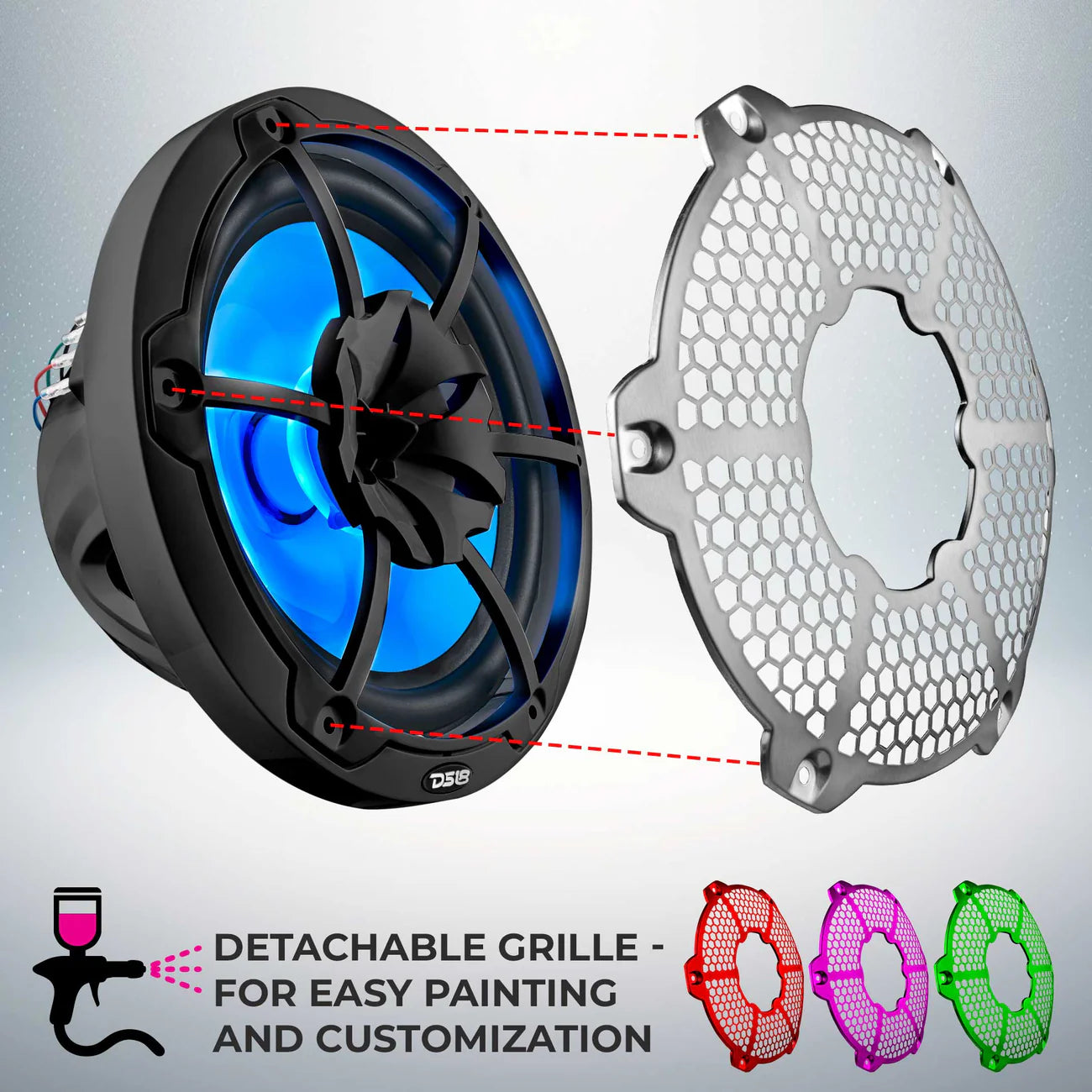

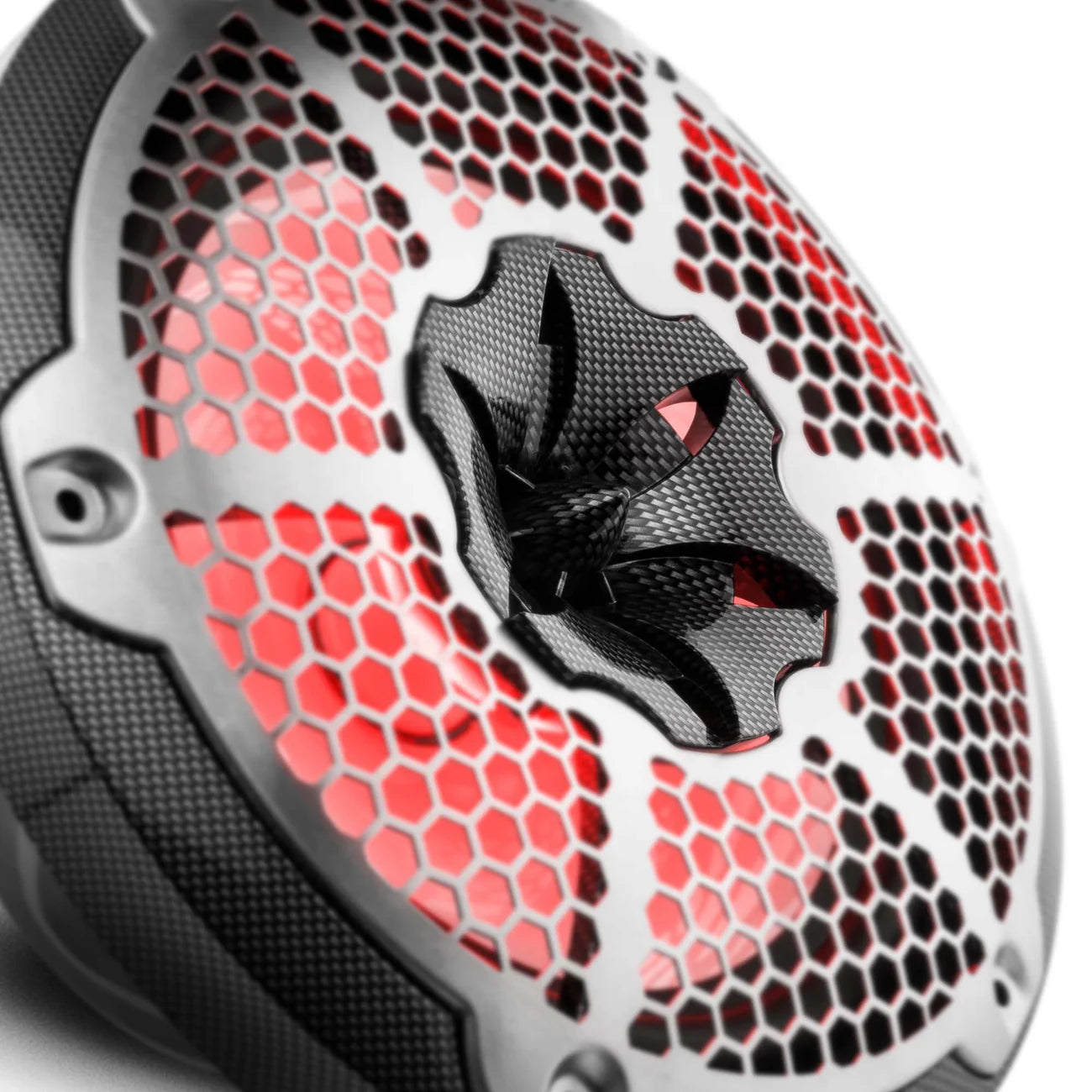

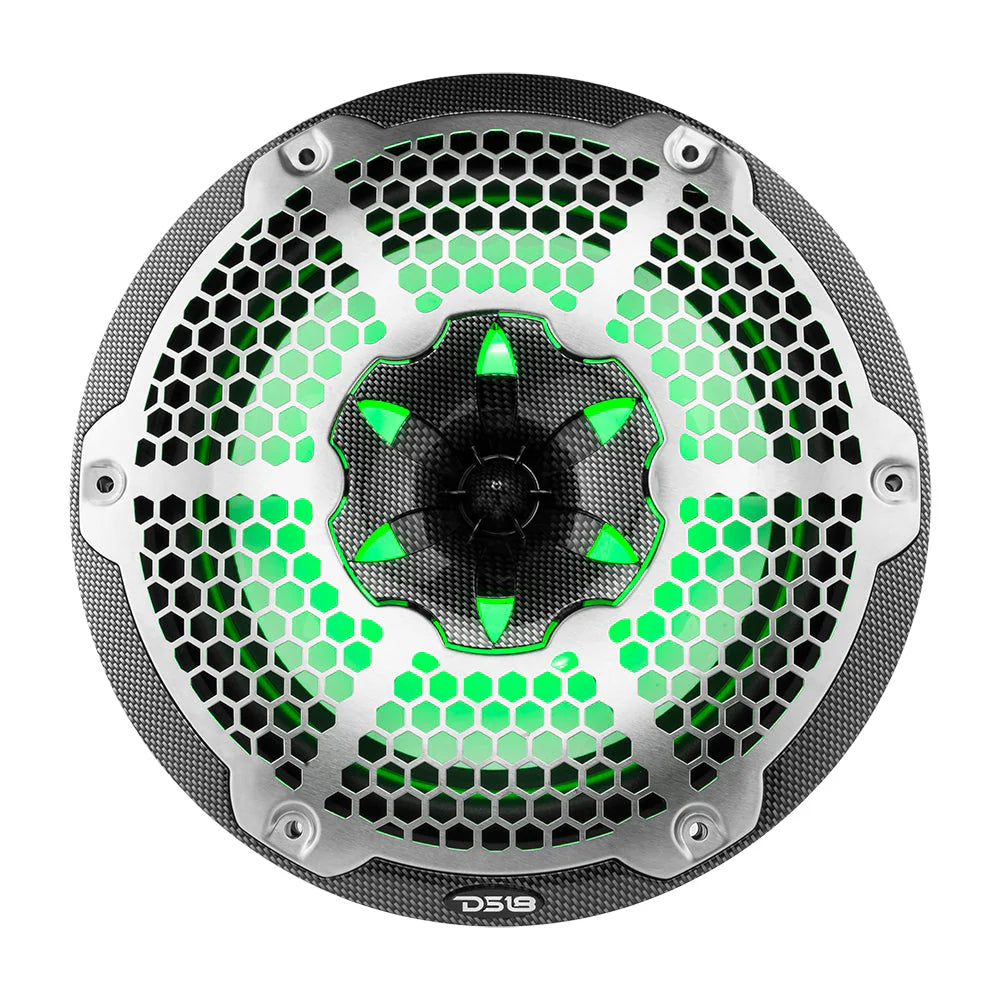

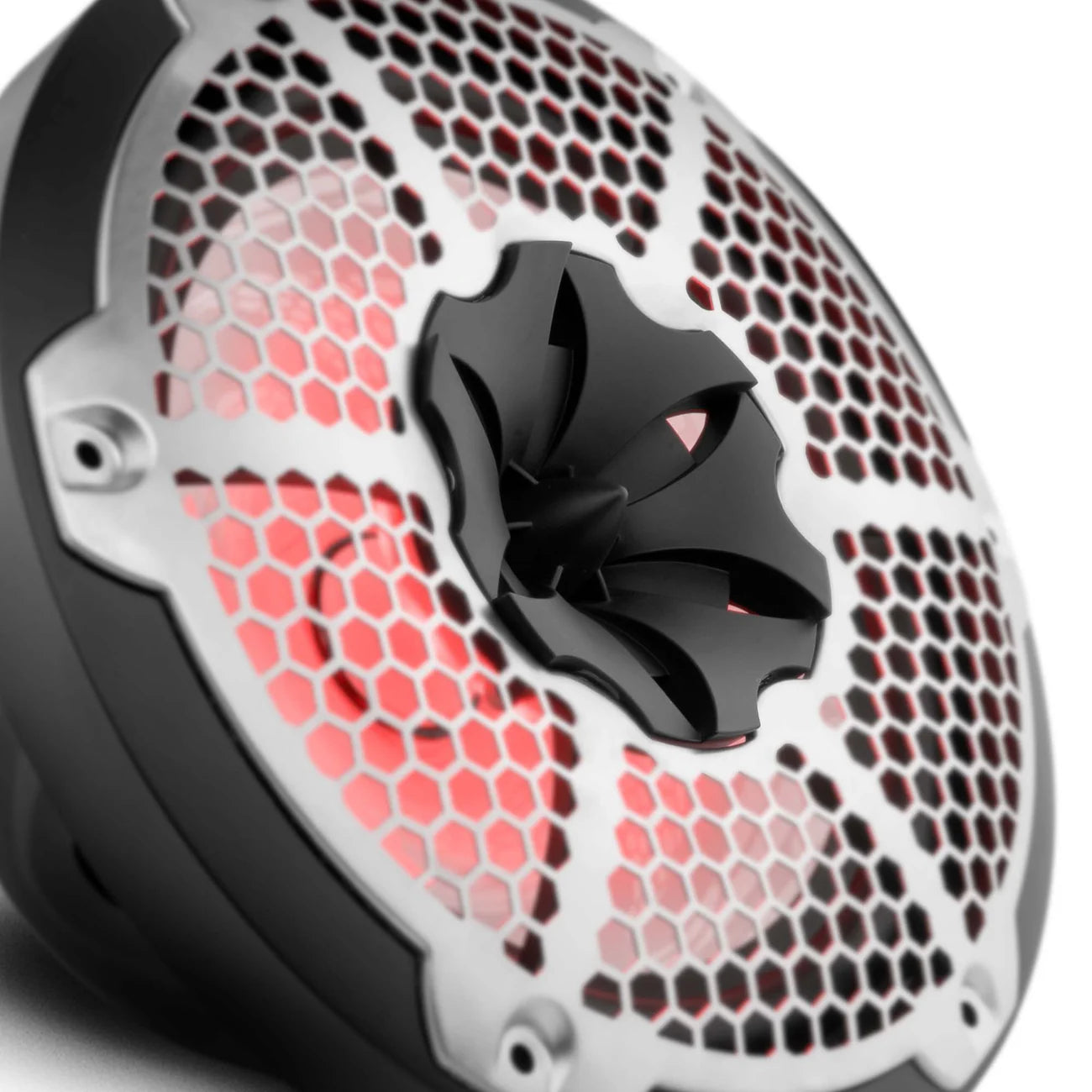

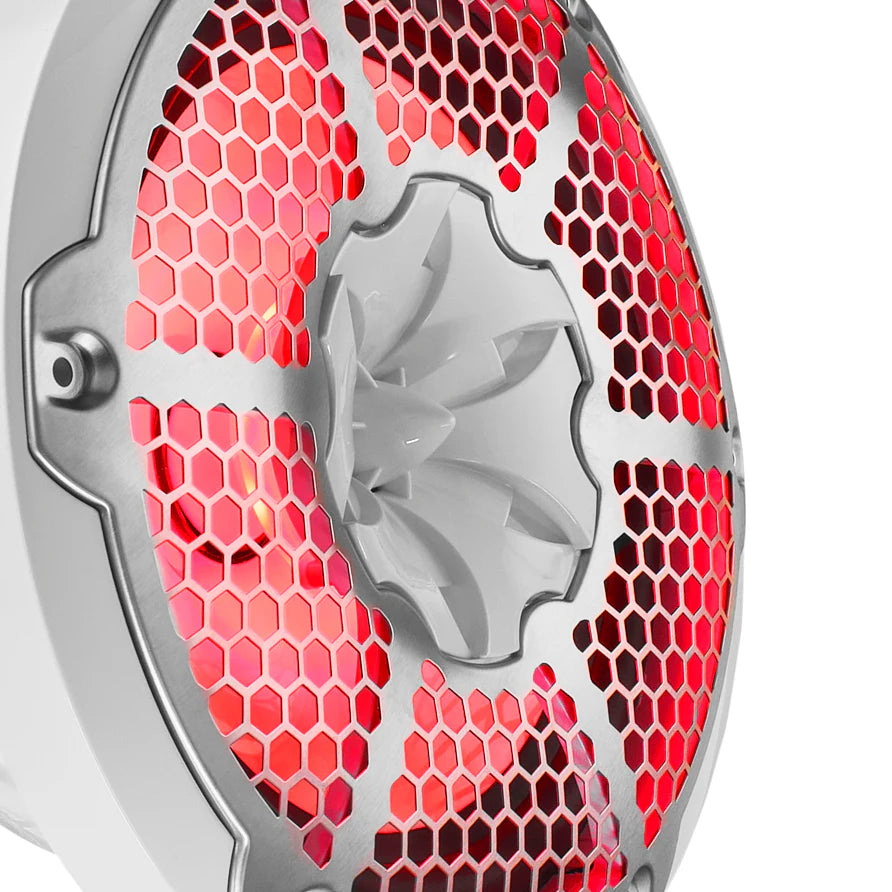

The integrated RGB LED lighting system and detachable sleek metal mesh grill provide protection while letting you customize your boat’s vibe with vibrant, adjustable colors. The included silicone cover adds an extra layer of protection, maintaining the speaker's polished appearance.
Crafted with UV-compliant materials, these speakers are built to resist damage from prolonged sun exposure, delivering reliable performance in extreme conditions.
Upgrade your marine audio system with DS18’s NXL-10M—powerful, durable, and now protected with a FREE silicone cover for long-lasting enjoyment. Order yours today and get LOUD with unbeatable performance!

SPECS

SKU
NXL-10M
Nominal Diameter
10" / 254mm
Nominal Impedance
4 Ohm
RMS Power Handling
200W
MAX Power Handling
600W
Sensitivity (1w/1m)
94.3dB
Frequency Response
35Hz-20Khz
Recommended HI Pass Crossover
50Hz


Body / Features

UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED Lights
Yes
Detachable Grill
Yes
Silicone Cover Included
Yes
Pair
Yes
Color / Finish
White / Gloss


Woofer Specifications

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite ASA with UV Protection coating
Magnet Material
Ferrite (Y35) + Neodymium (N35)
Magnet Weight
50oz + 0.56oz


Tweeter Specifications

Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
PEN
Magnet Material
Neodymium (N38H)
Magnet Weight
0.51oz


Thiele & Small Parameters

Equivalent Volume Vas
197.13L / 6.96ft3
Excursion (one way) Xmax
6mm
Free Air Resonance Fs
42Hz
Mechanical Factor Qms
6.874
Electrical Factor Qes
0.838
Total Factor Qts
0.747
Moving Mass Mms
11.37g
Compliance Cms
1.264mm/N
Bl Factor Bl
3.4
Voice Coil Inductance Le
0.60712mH
Cone Area Sd
333.29 cm2
DC Resistance Re
3.2ohms
Efficiency Bandwidth Product EBP
50.12

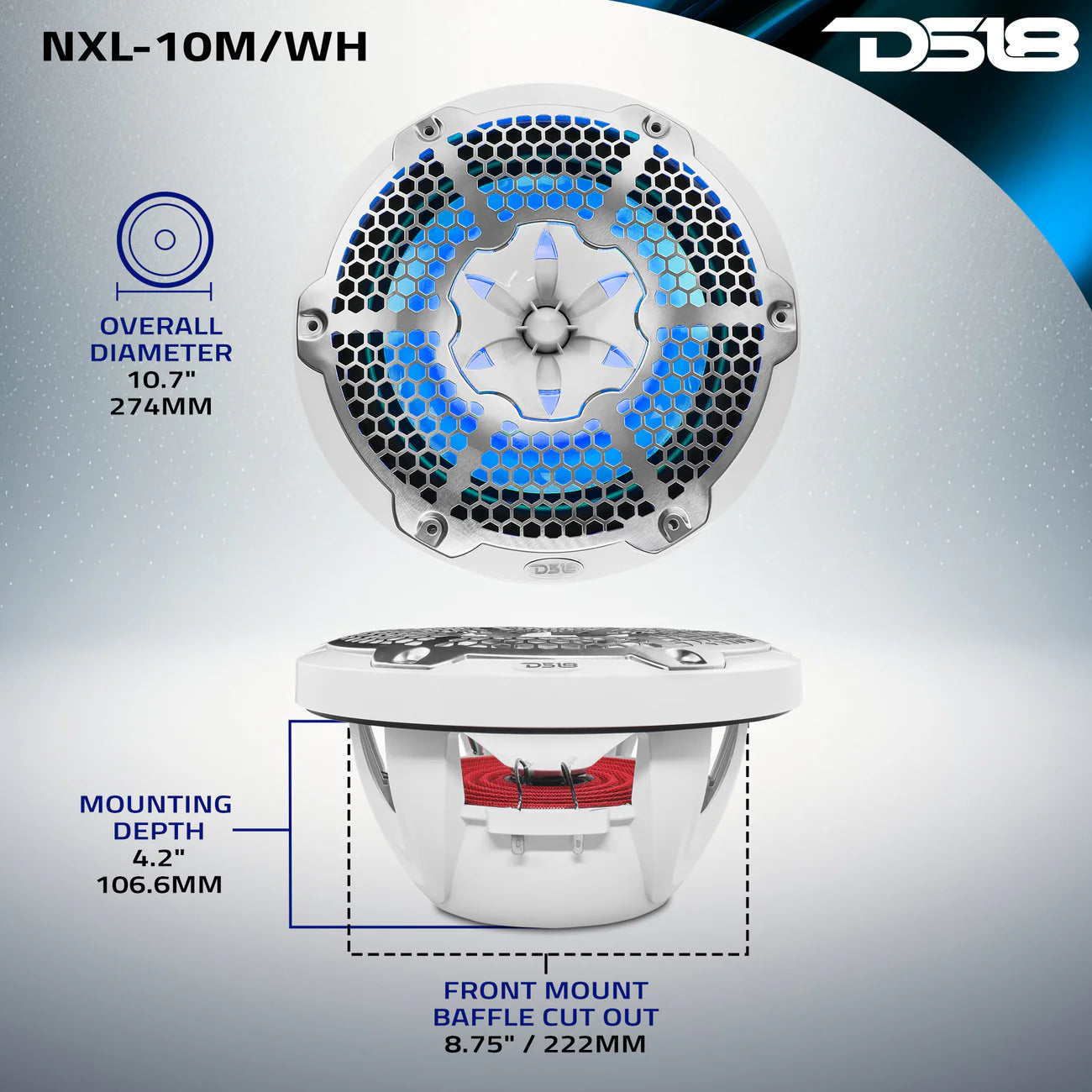

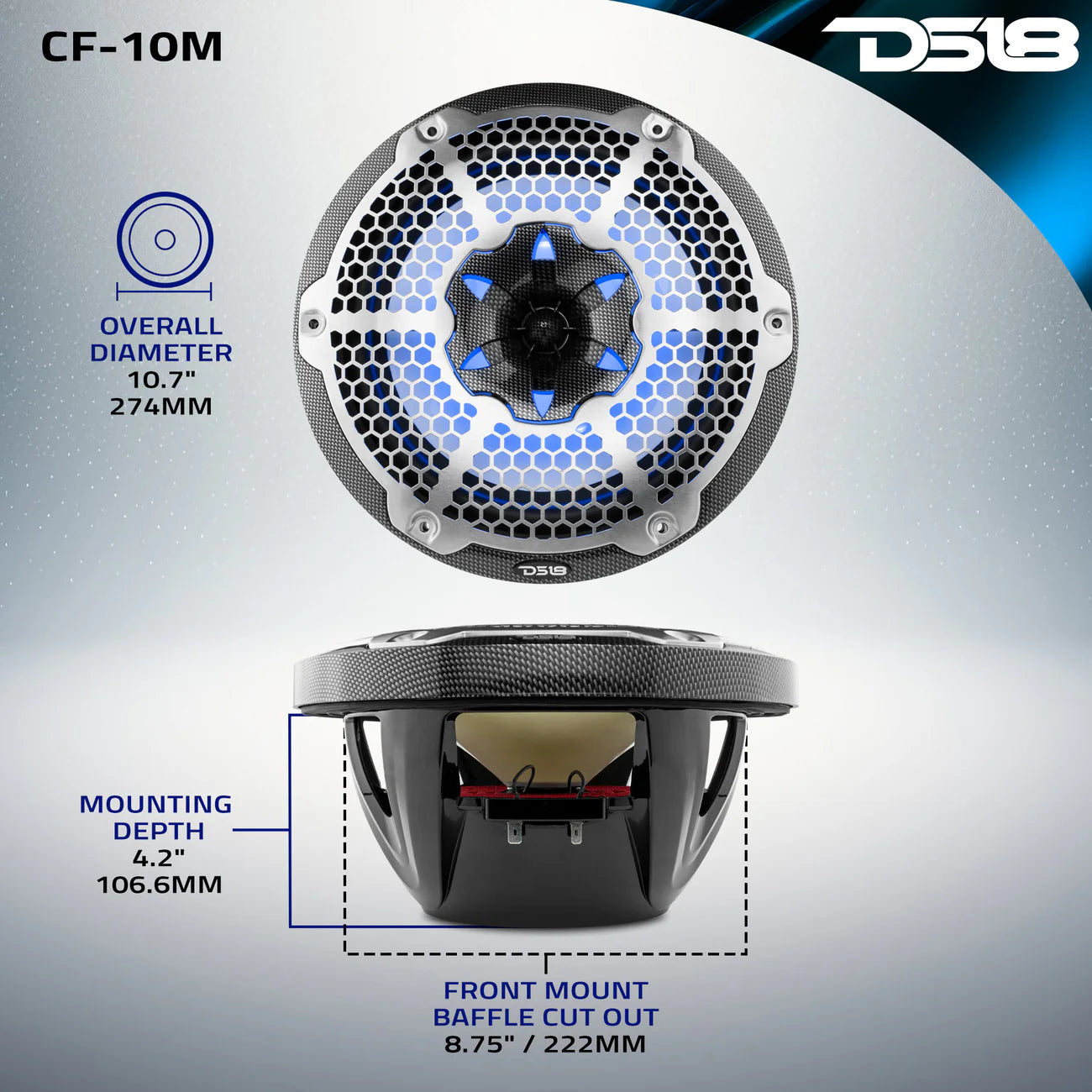

Speaker Measurement

Overall Diameter
10.7" / 274mm
Overall Depth
5.7" / 144.7mm
Front Mount Baffle Cutout
8.75" / 222mm
Mounting Depth
4.2" / 106.6mm
Motor Diameter
5.3" / 135mm
Gross Single Unit Weight (lb)
20
Single Unit Box Dimensions W x L x H (Inches)
23 x 12.75 x 7.5
Quantity of Units in Master Carton
20
Gross Master Carton Weight (lb)
41.5
Master Carton Dimensions W x L x H (Inches)
23.5 x 14 x 16
