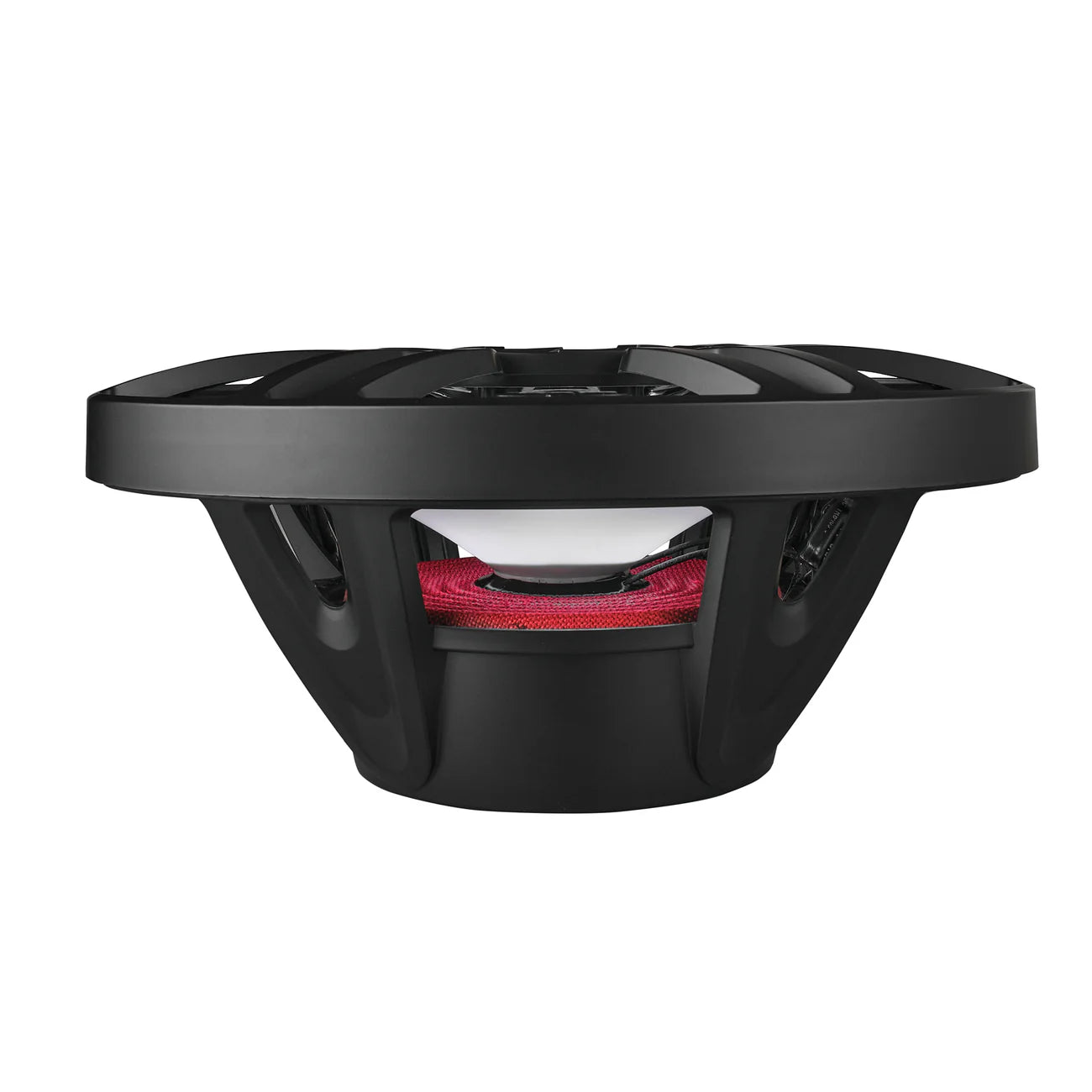

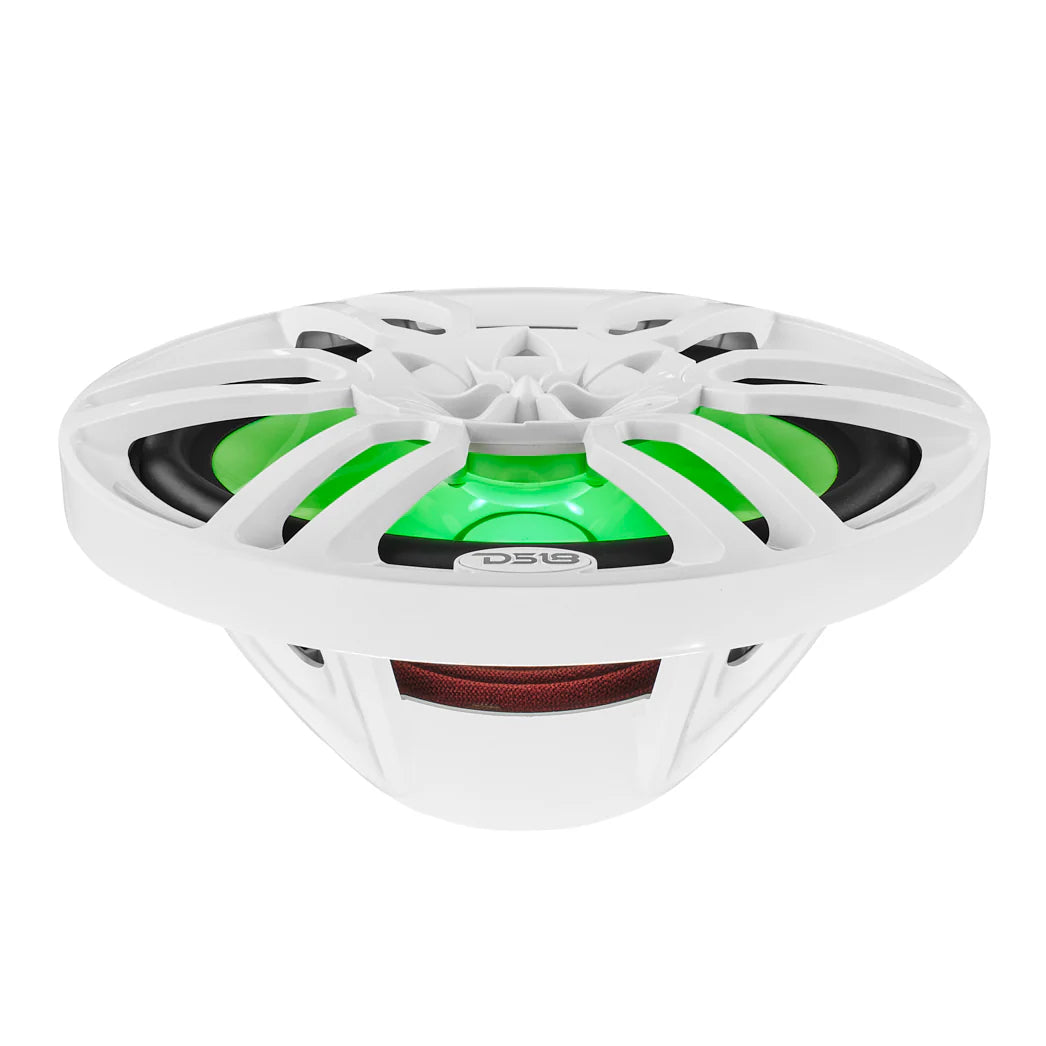

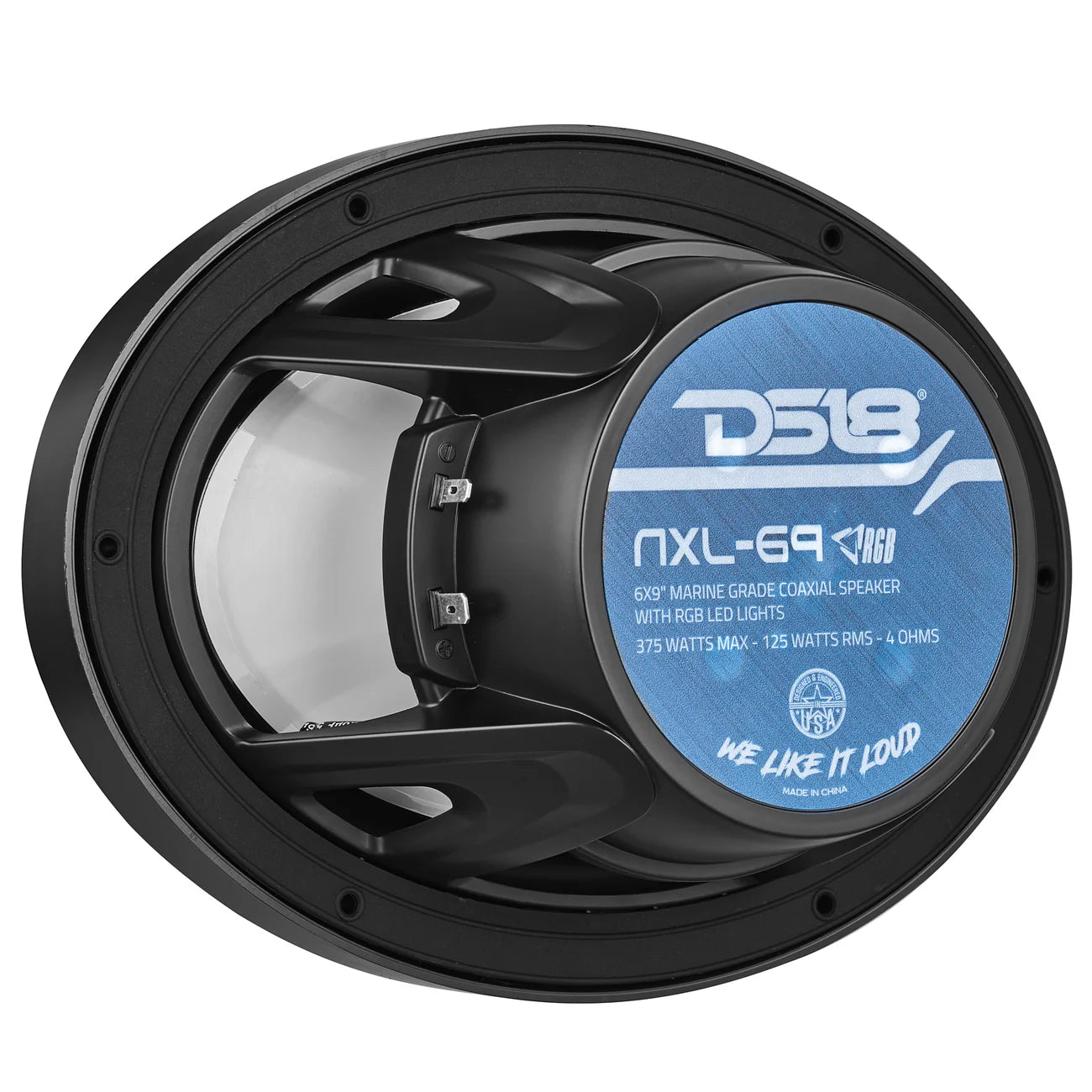

DS18 NXL-69

6x9” 2-Way Coaxial Marine Speaker With LED RGB Lights | 125W RMS | 4-Ohm - Black

Give your marine audio system a boost with DS18’s NXL-69—designed for powerful sound on the water.

Handling 125W RMS / 375W MAX, the NXL-69 offers high-volume clarity, ensuring every note is heard loud and clear, even in open-air settings. The 6x9 cone pairs with built-in coaxial tweeters to create a dynamic frequency range of 40Hz – 20KHz for full range audio that you can feel.

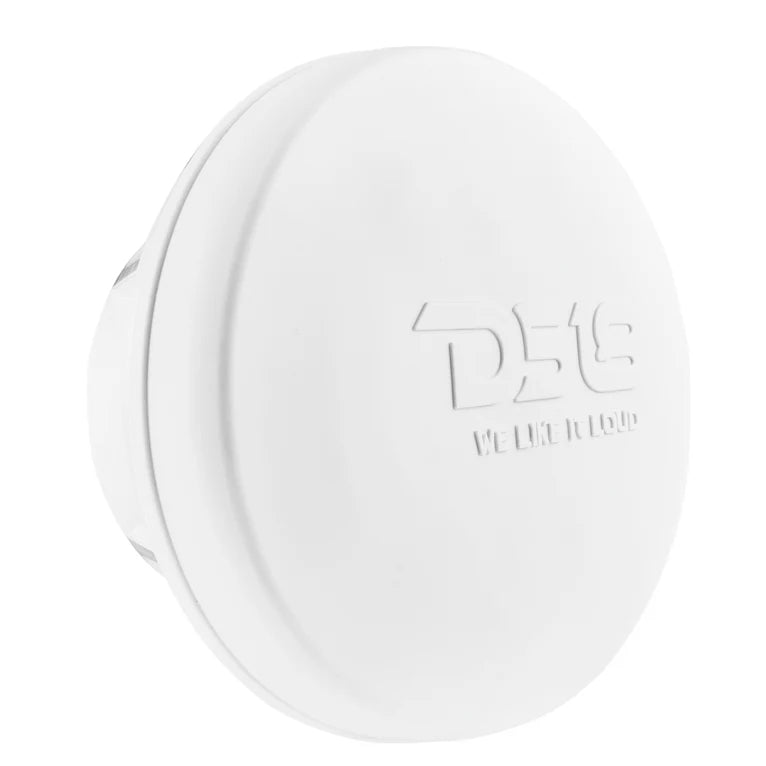

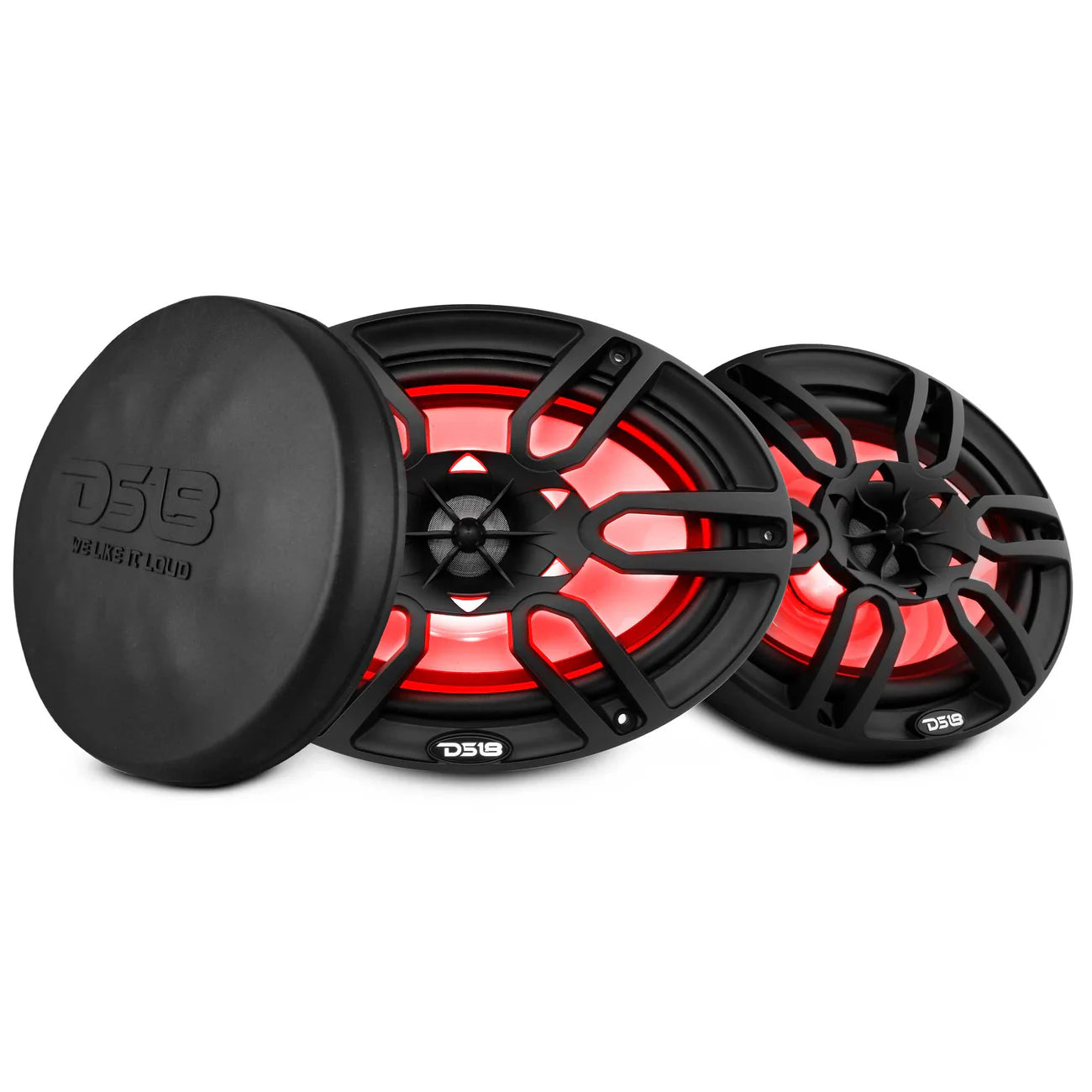

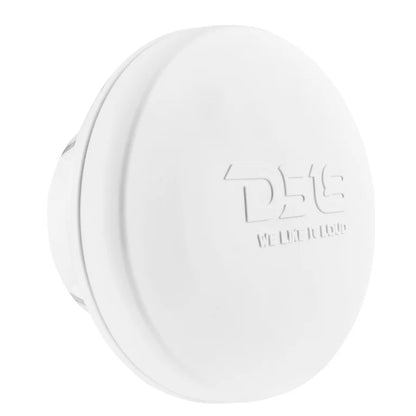

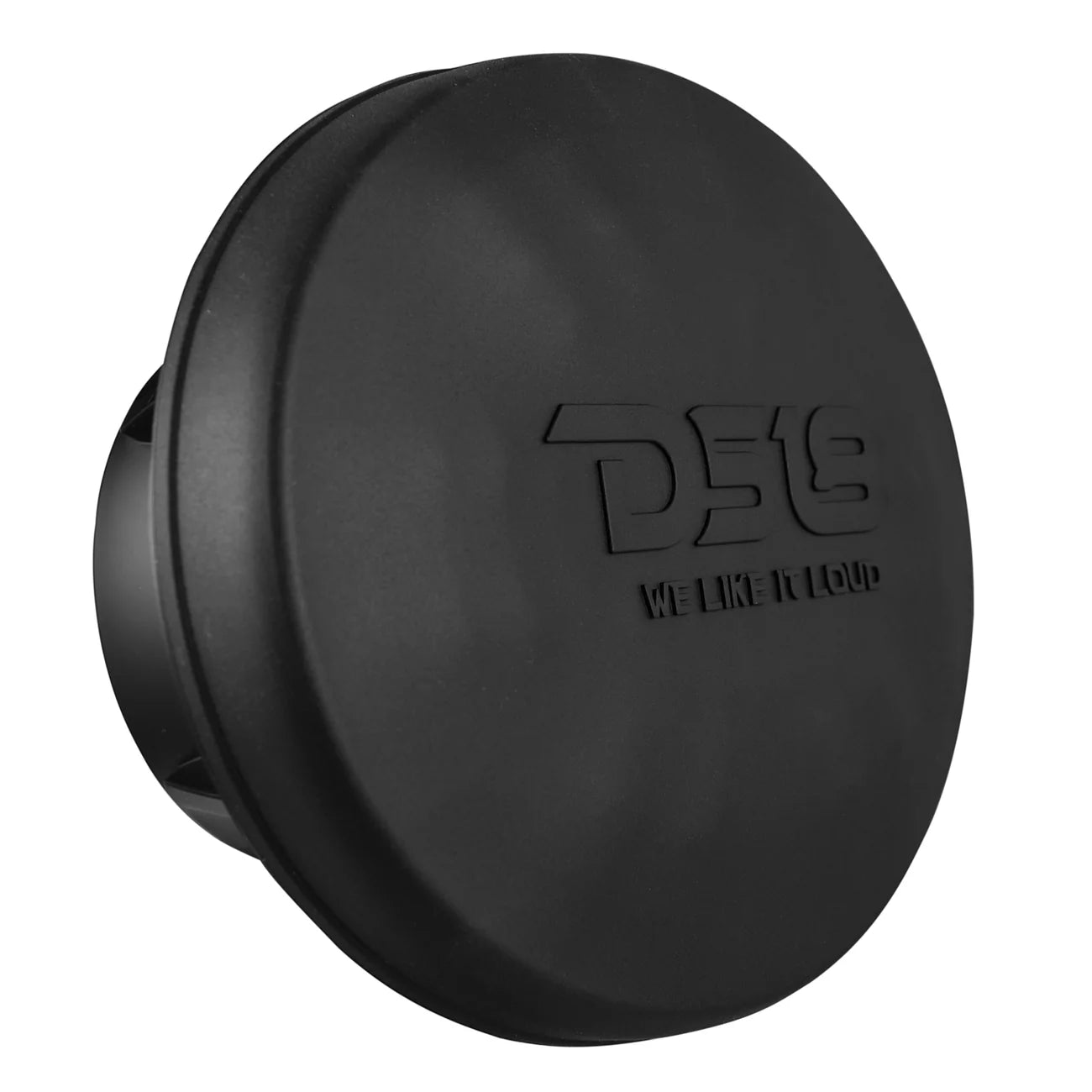

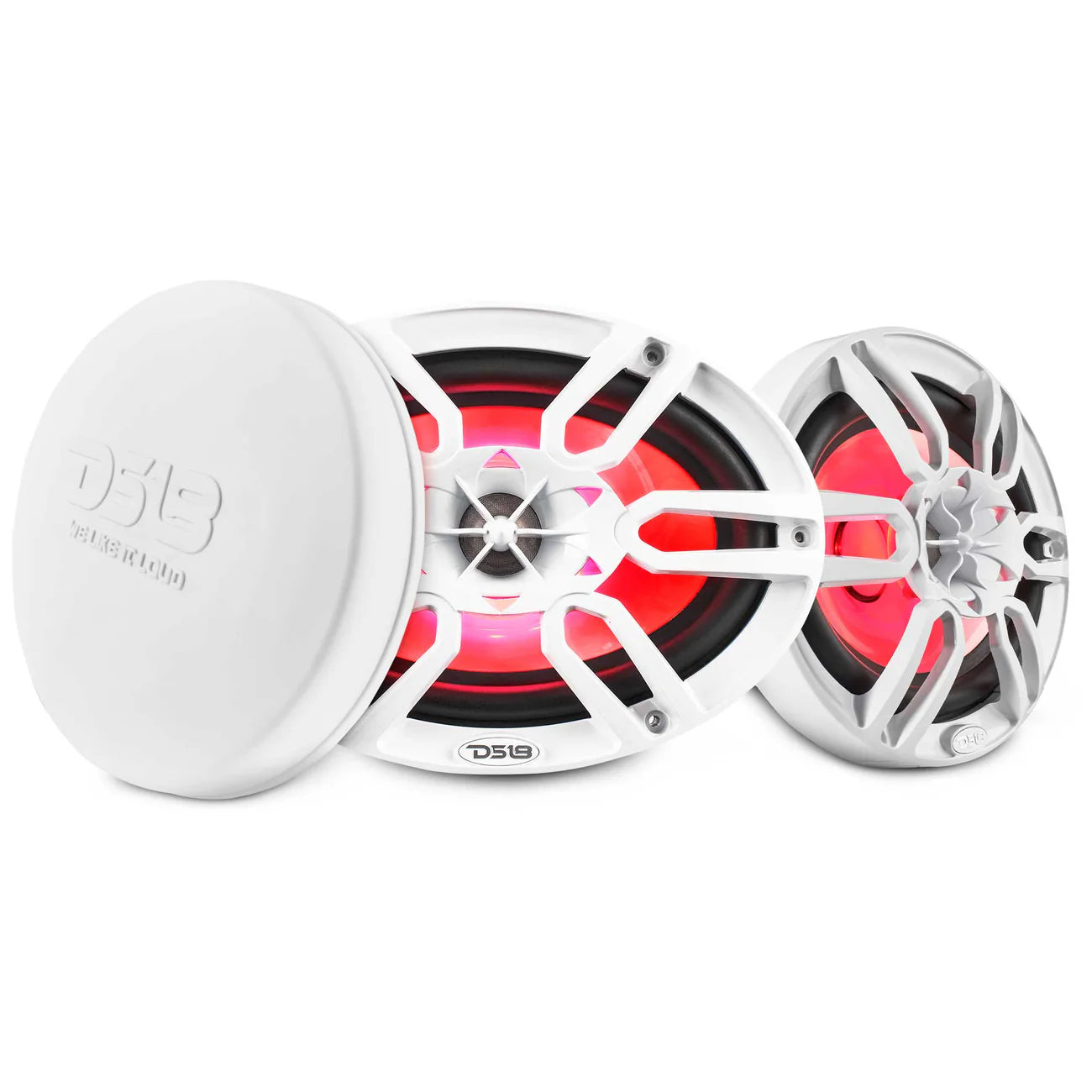

These NXL-69’s are IP65-rated to handle harsh marine conditions, and this updated model now includes a protective cover for an extra layer of defense against the elements while maintaining its sleek look.

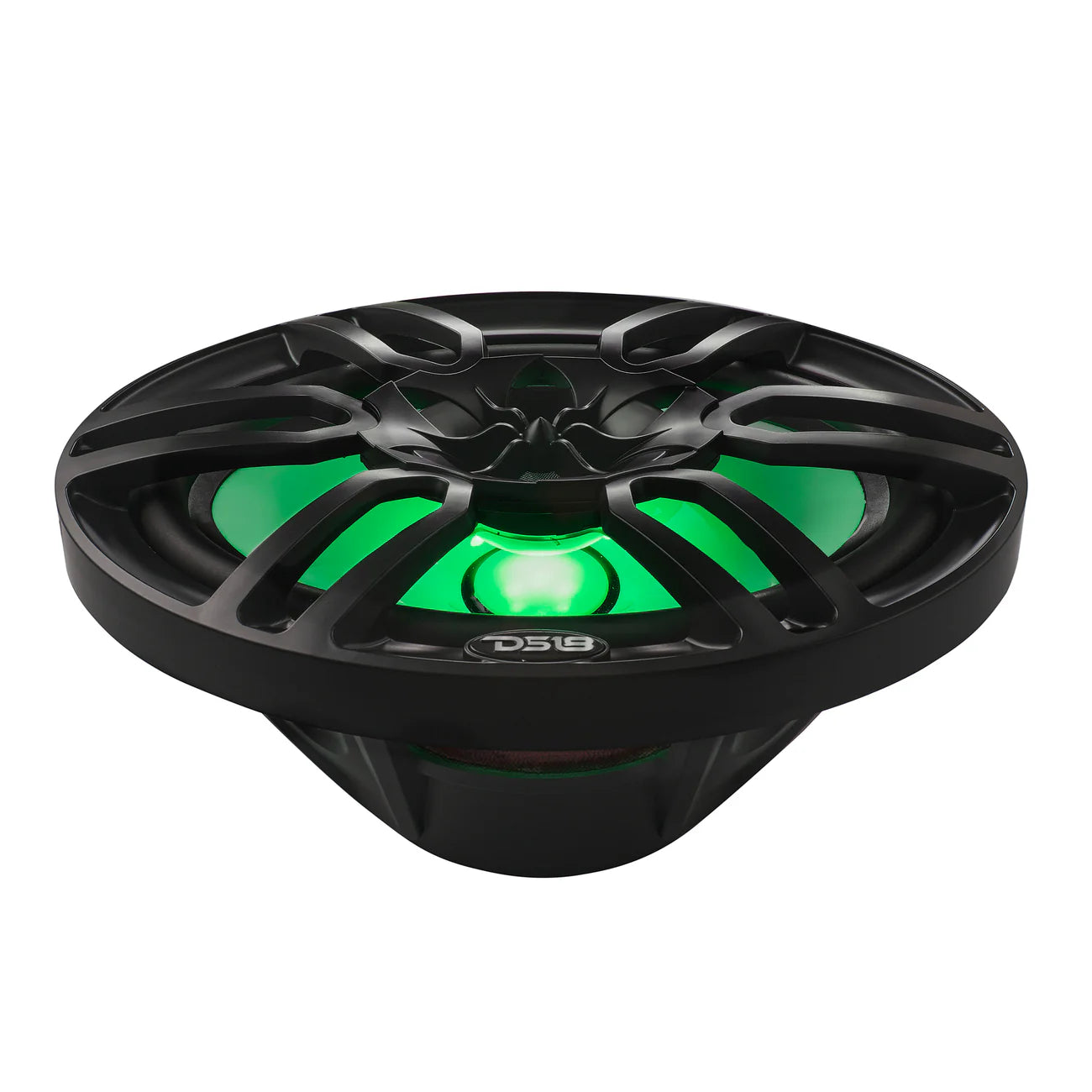

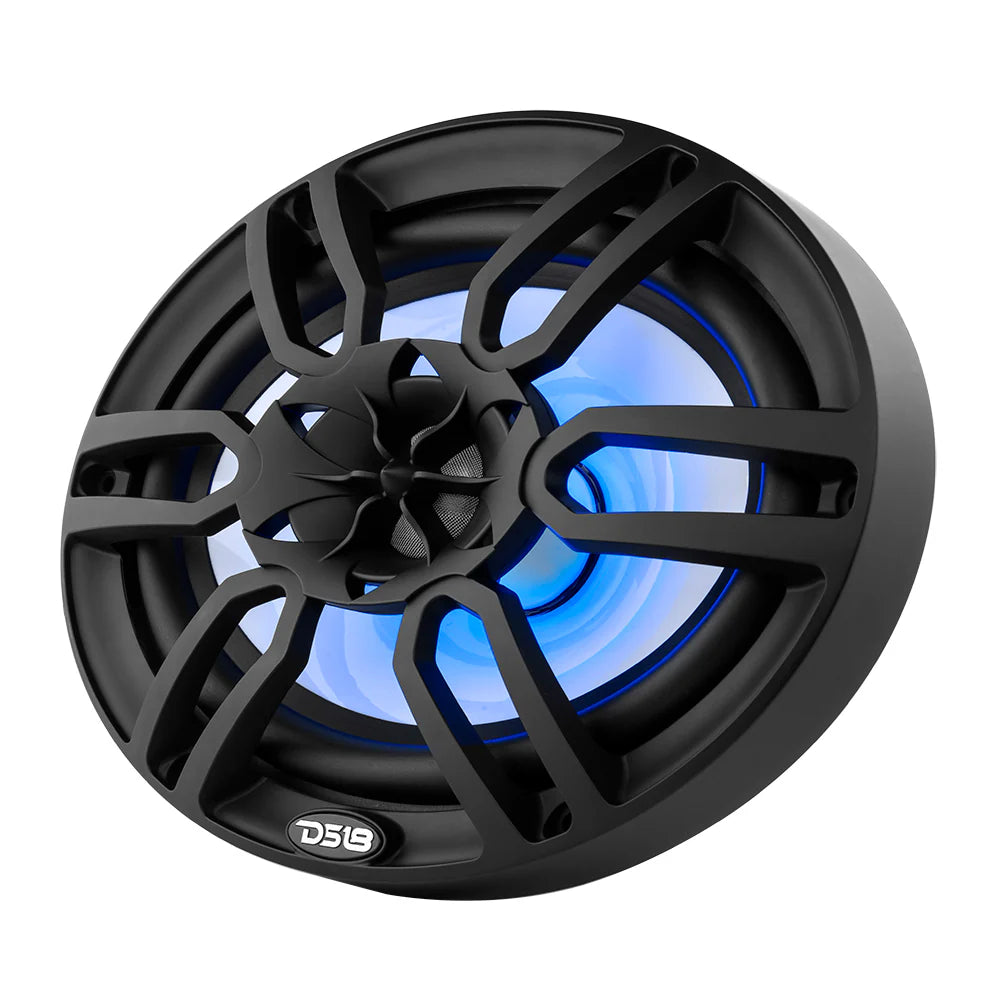

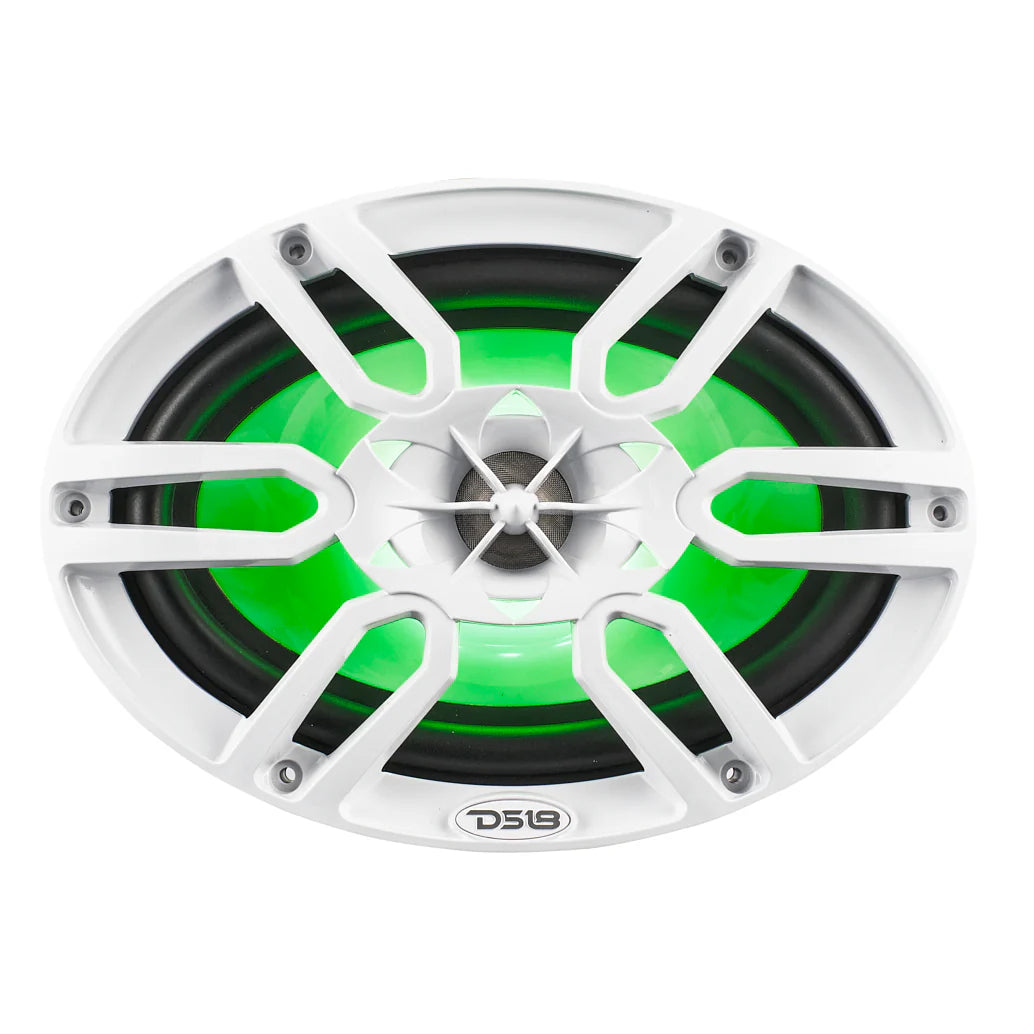

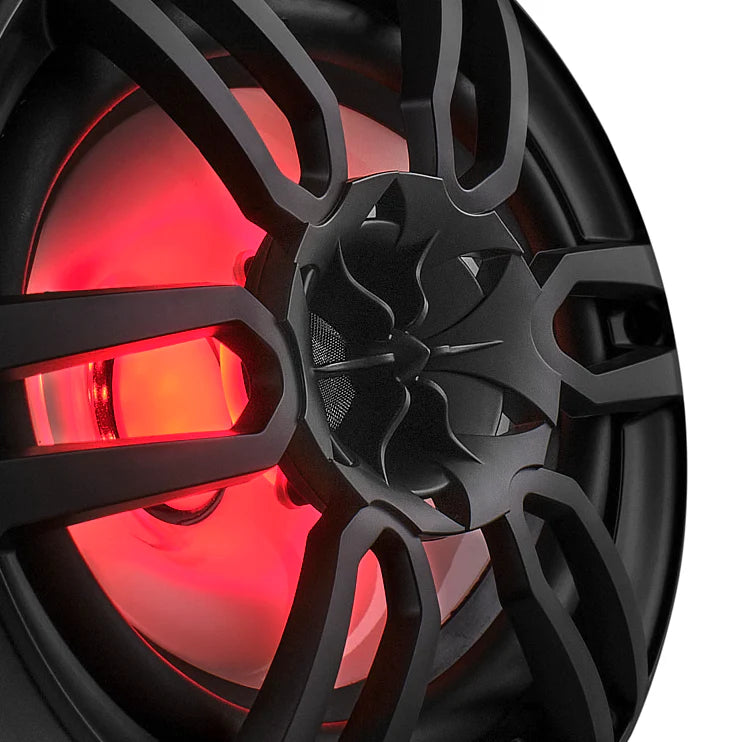

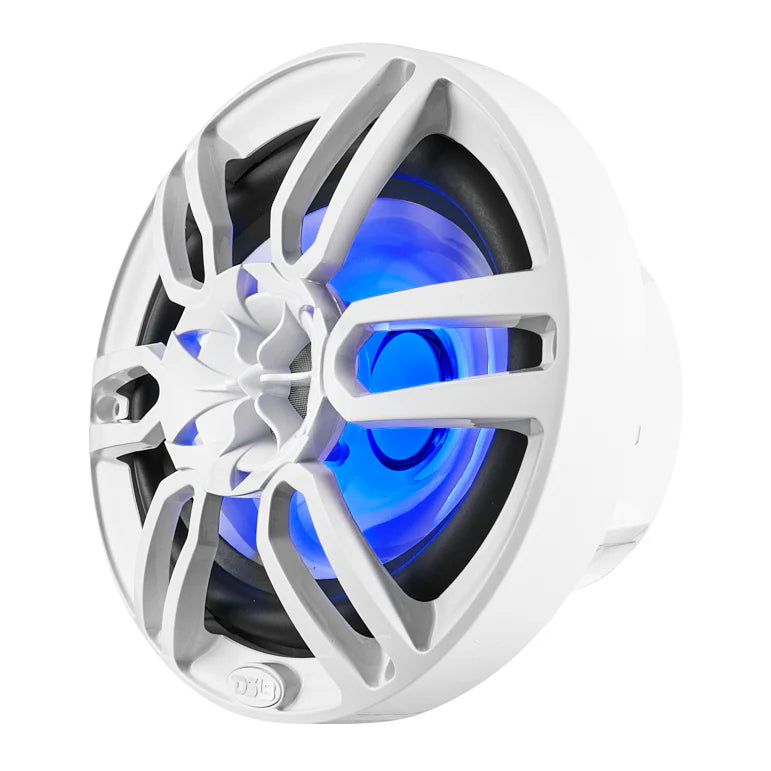

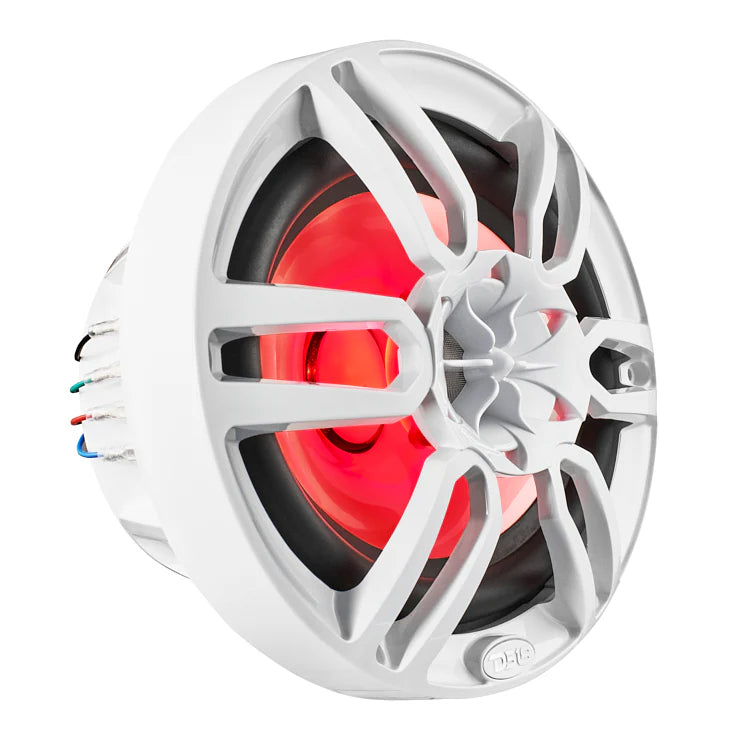

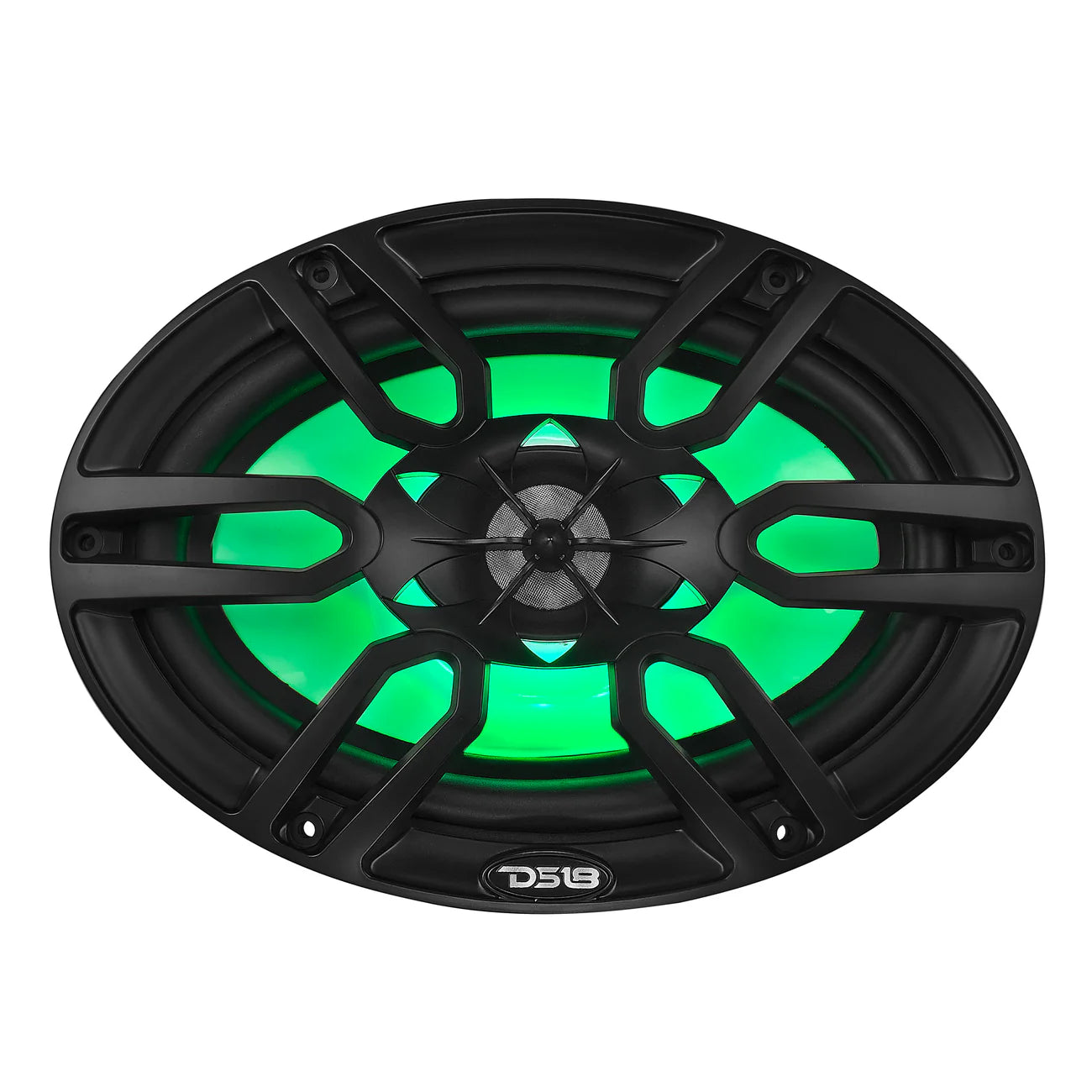

And it’s not just about sound—these speakers feature integrated RGB LED lighting, letting you set the vibe with customizable colors to match your mood or location.

Backed by years of research and development, the NXL-69 is built to last, offering a rugged yet stylish audio solution that keeps up with all your adventures.

Experience marine audio like never before with DS18’s NXL-69—order yours today and enjoy sound that’s as bold as your journey!

SPECS

SKU
NXL-69
Nominal Diameter
6x9" / 152.4x228.6mm
Nominal Impedance
4 ohms
RMS Power Handing
125 watts
Maximum Power Handing
375 watts
Sensitivity (1w/1m)
92 dB
Frequency Response
40Hz-20KHz
Recommended Hi Pass Crossover
60Hz


SPECS

Voice Coil Diameter
1.4" / 35.5mm
Voice Coil Former Material
Kapton
Winding Material
SV
Basket Material
High Temp injection Molded composite whit uv protecion coating
Magnet Weight
24 OZ +0.75 OZ


THIELE & SMALL PARAMETERS

Vas
51.43L / 1.8ft3
Xmax
6 mm
Fs
49 Hz
Qms
7.66
Qes
0.704
Qts
0.644
Re
3.1 OHM

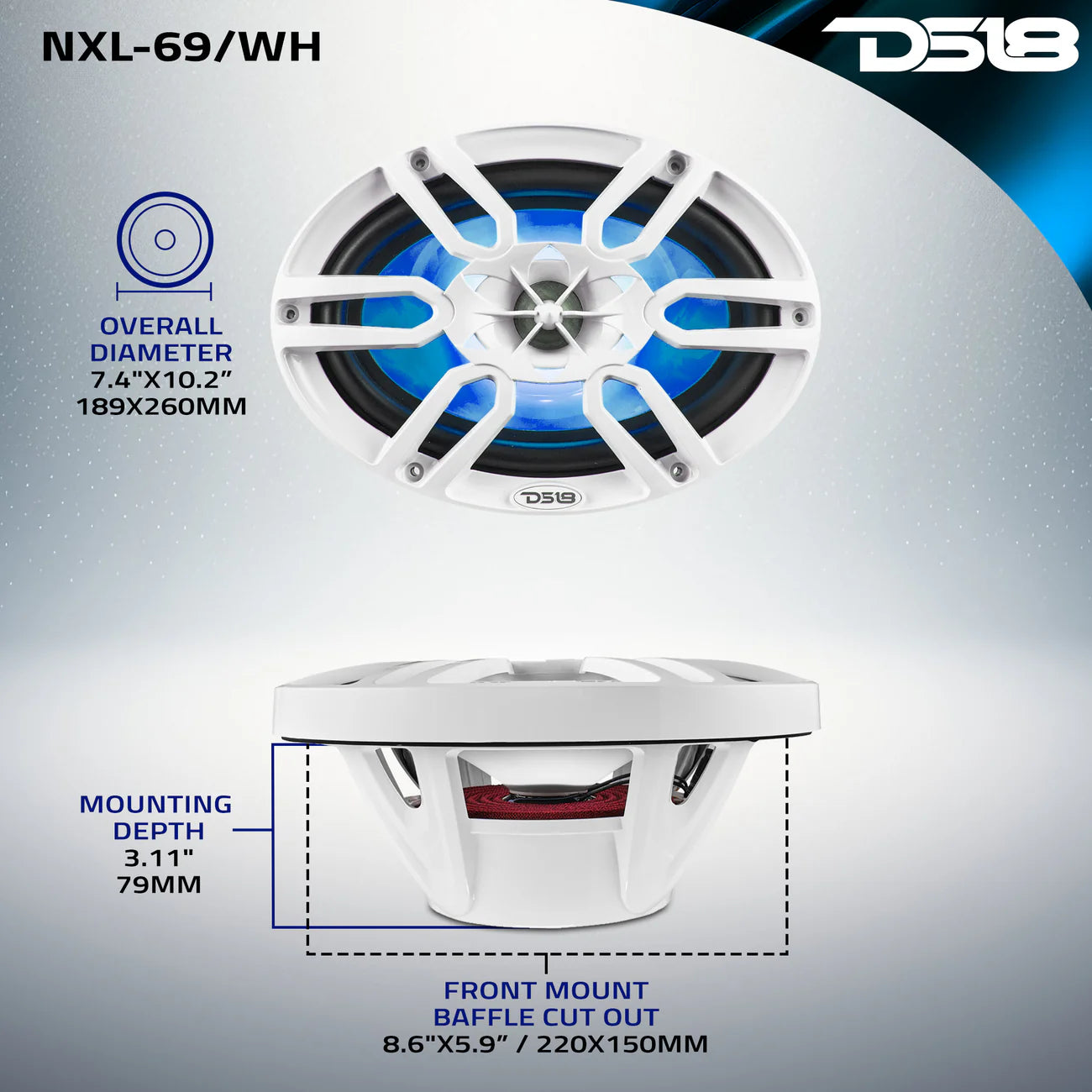

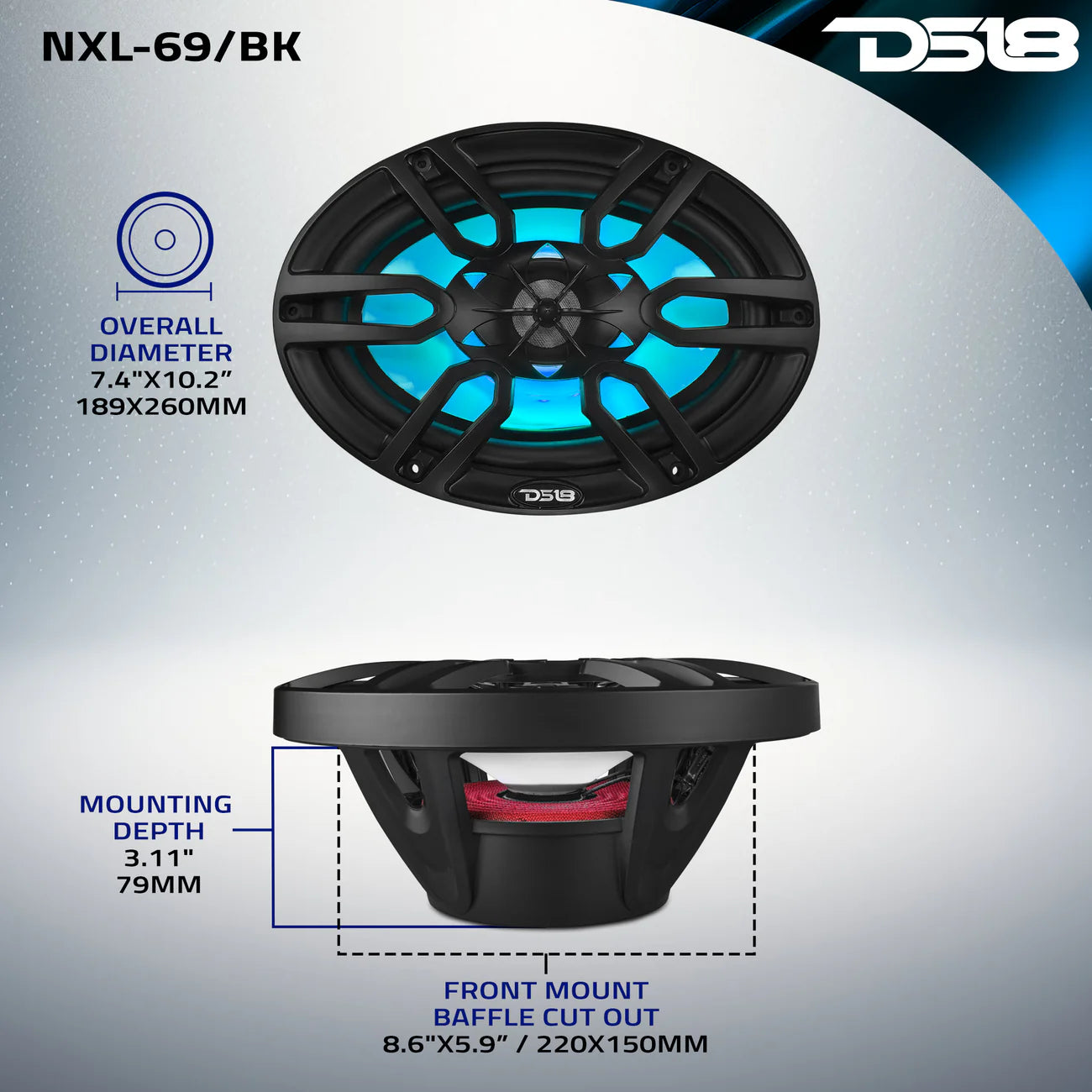

MEASUREMENTS

Overall Diameter
7.4" x 10.2" / 189 x 260mm
Front Mount Baffle Cutout
8.6" x 5.9" / 220 x 150 mm
Mounting Depth
3.11" / 79 mm
Overall Depth
4.52" / 115 mm
Product Weight
10.5 lbs
Product Dimensions
17.75 x 12 x 5.5
M/C Weight
23 lbs
M/C Dimensions
18.25 x 12.5 x 11
M/C QTY
2
Sold In
Pair
