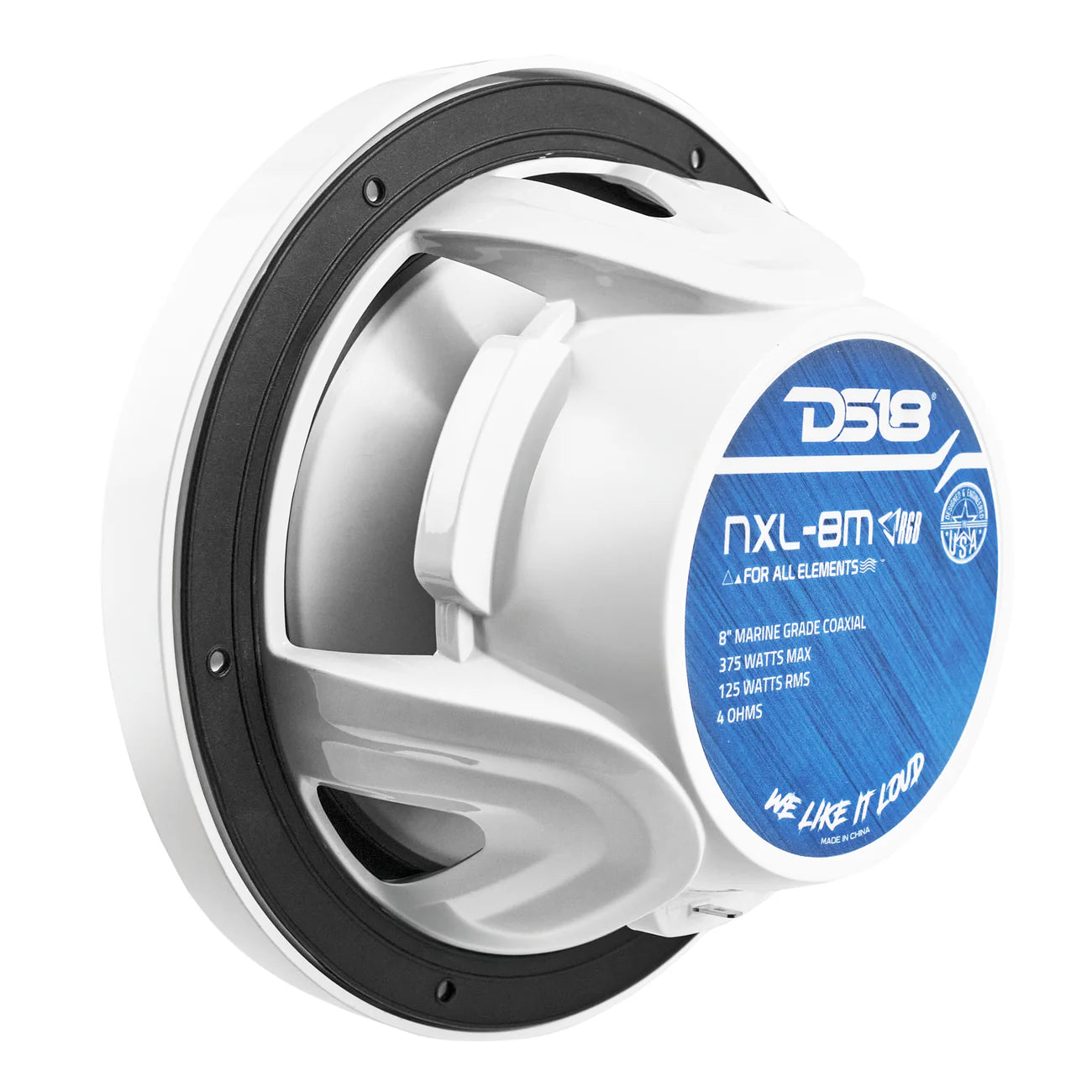

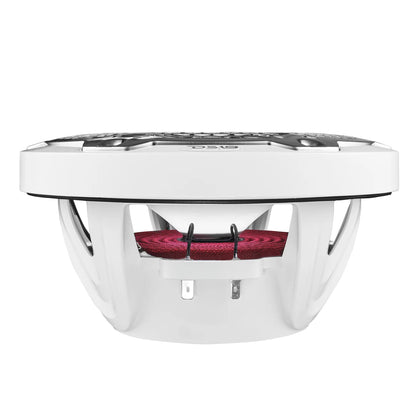

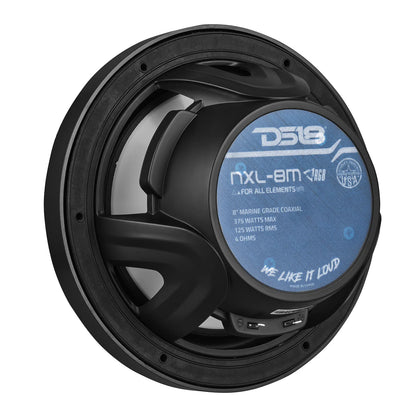

DS18 NXL-8M

8” 2-Way Marine Speakers With RGB LED Lights

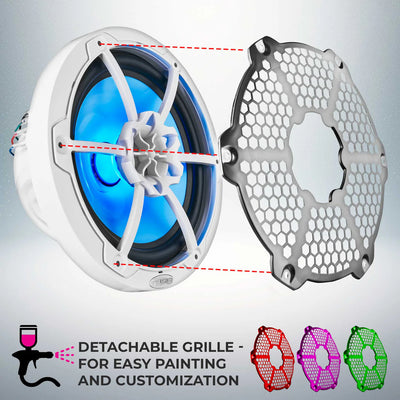

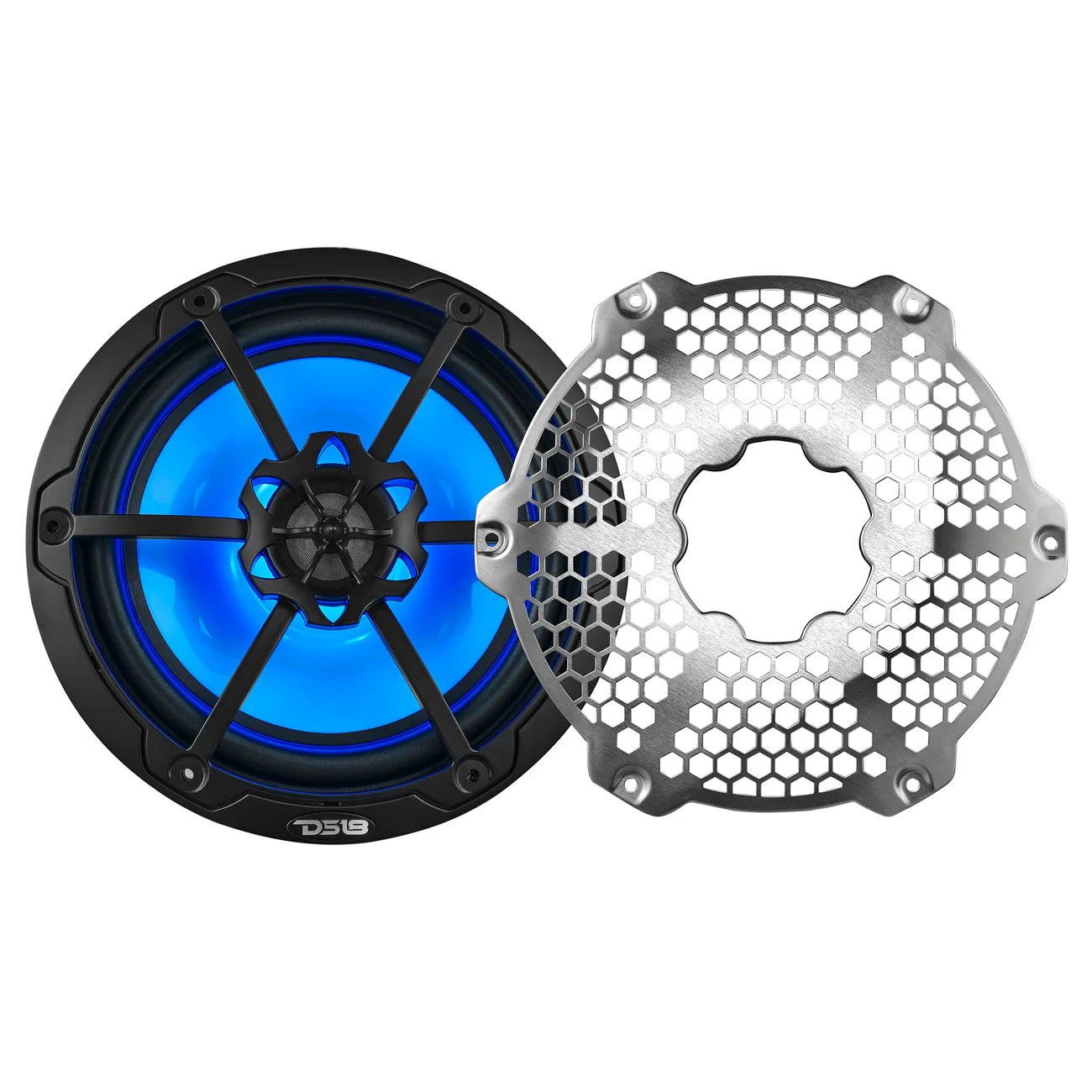

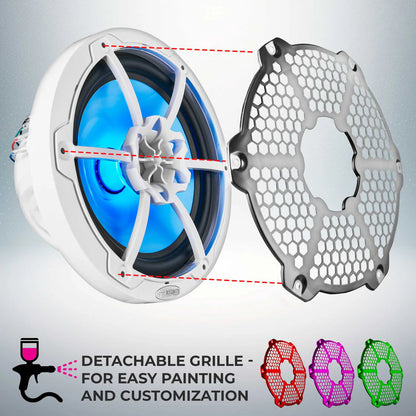

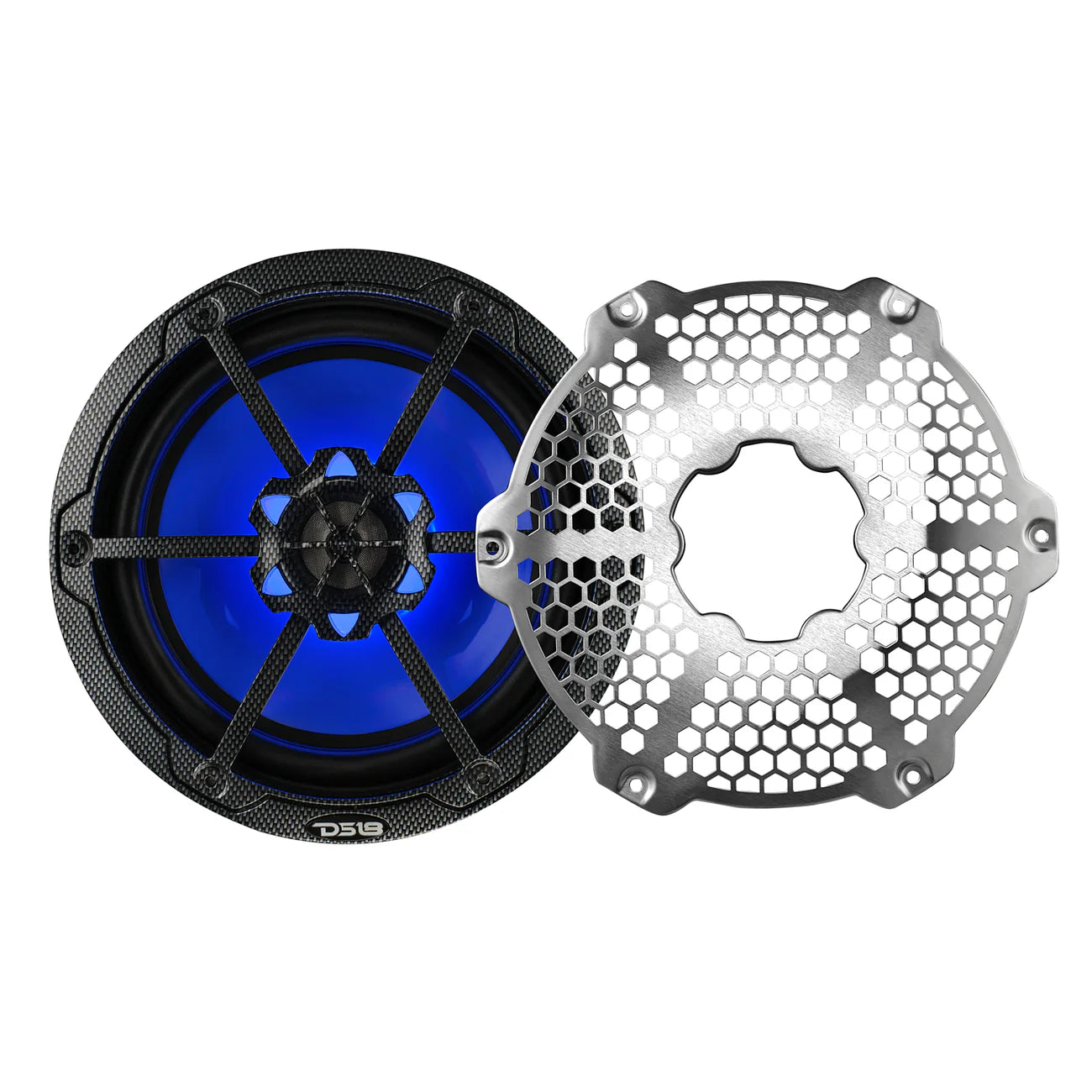

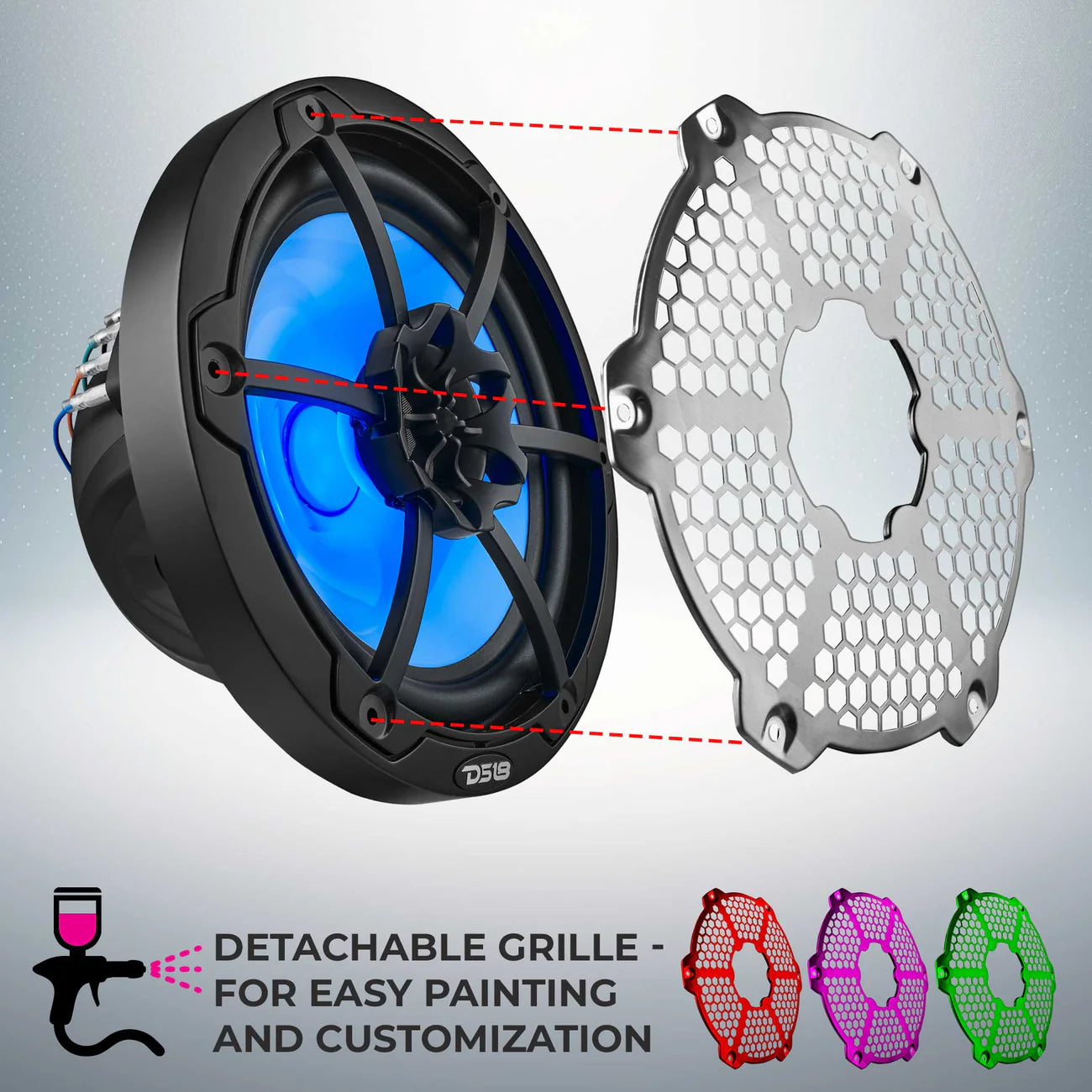

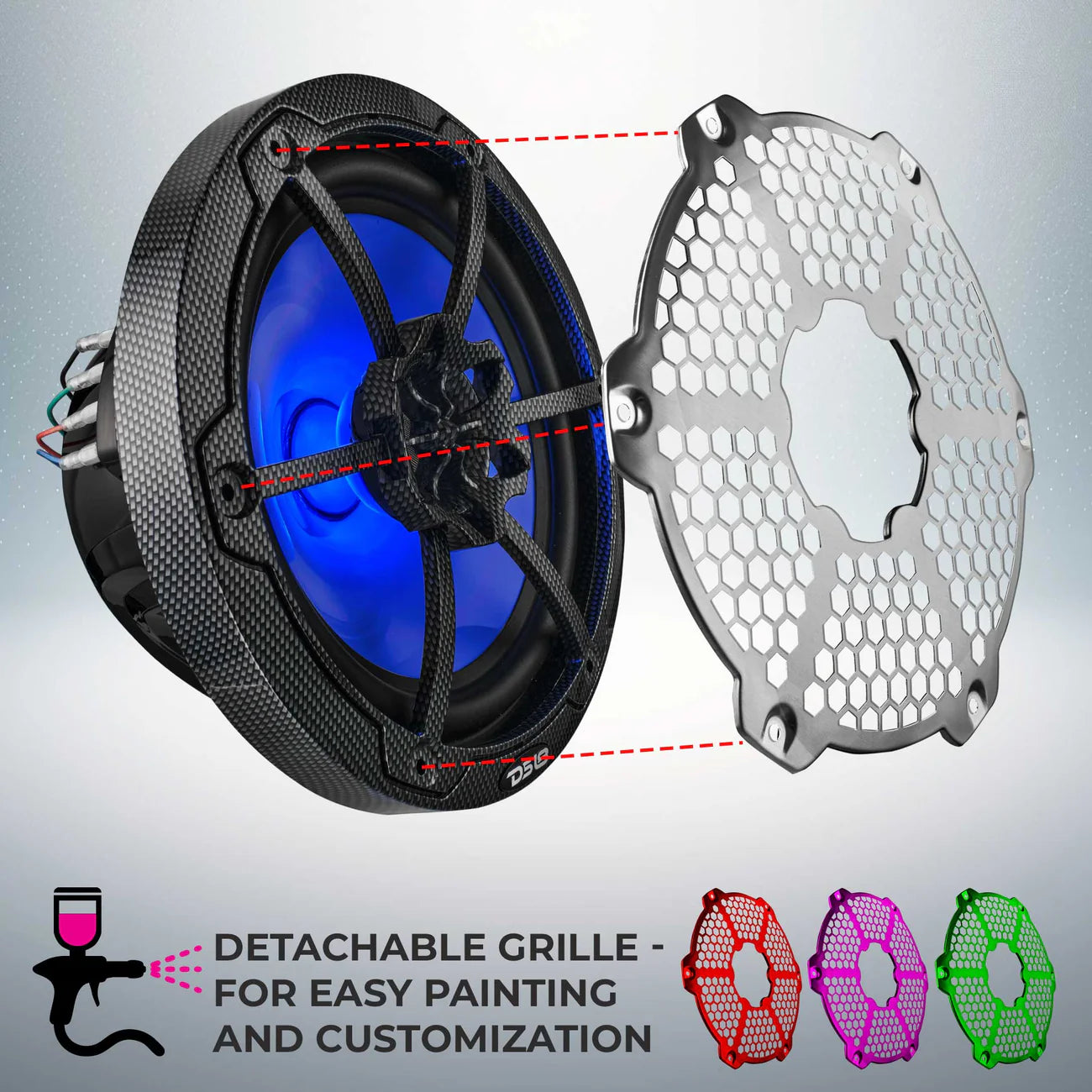

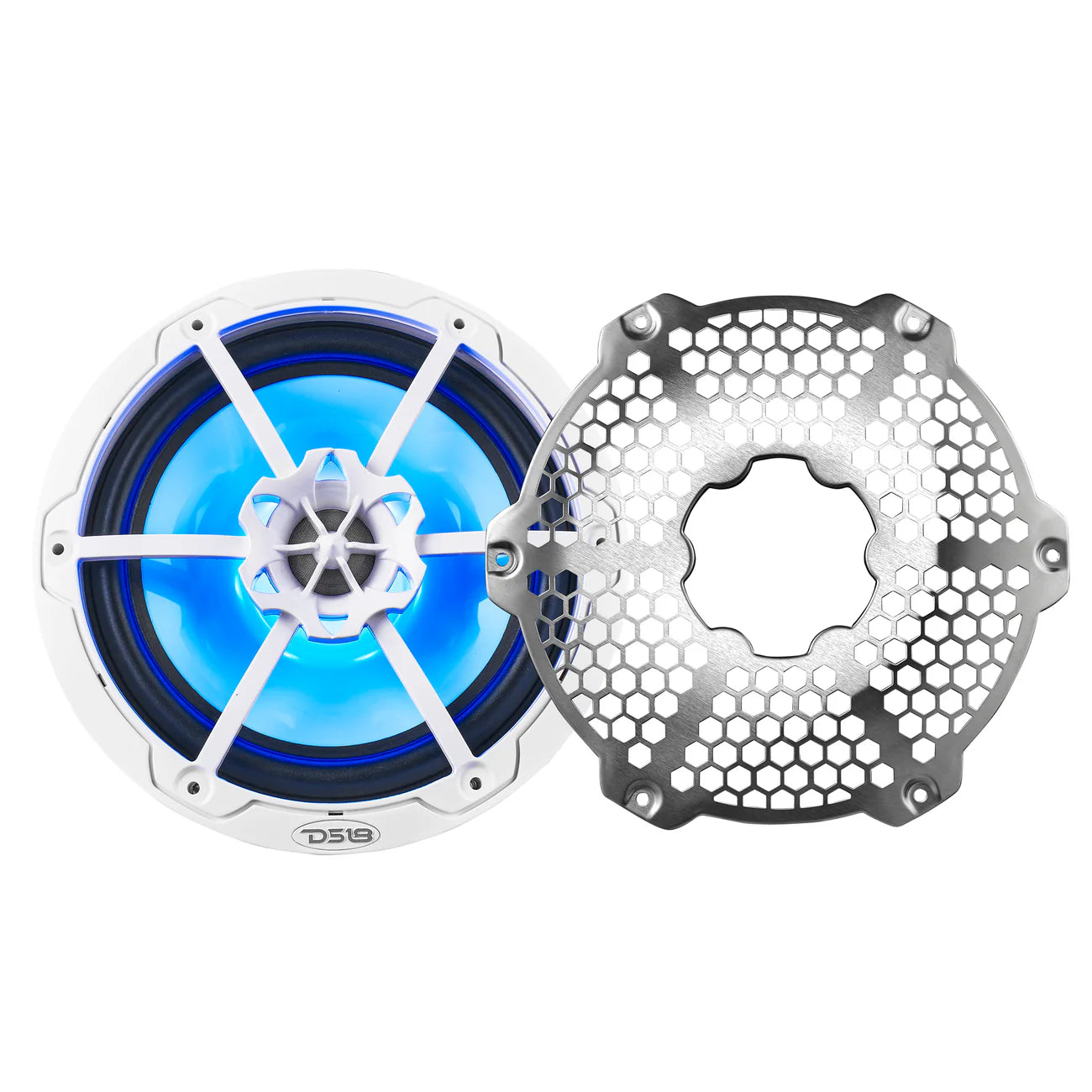

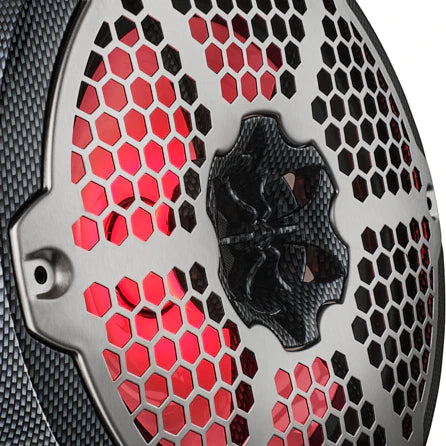

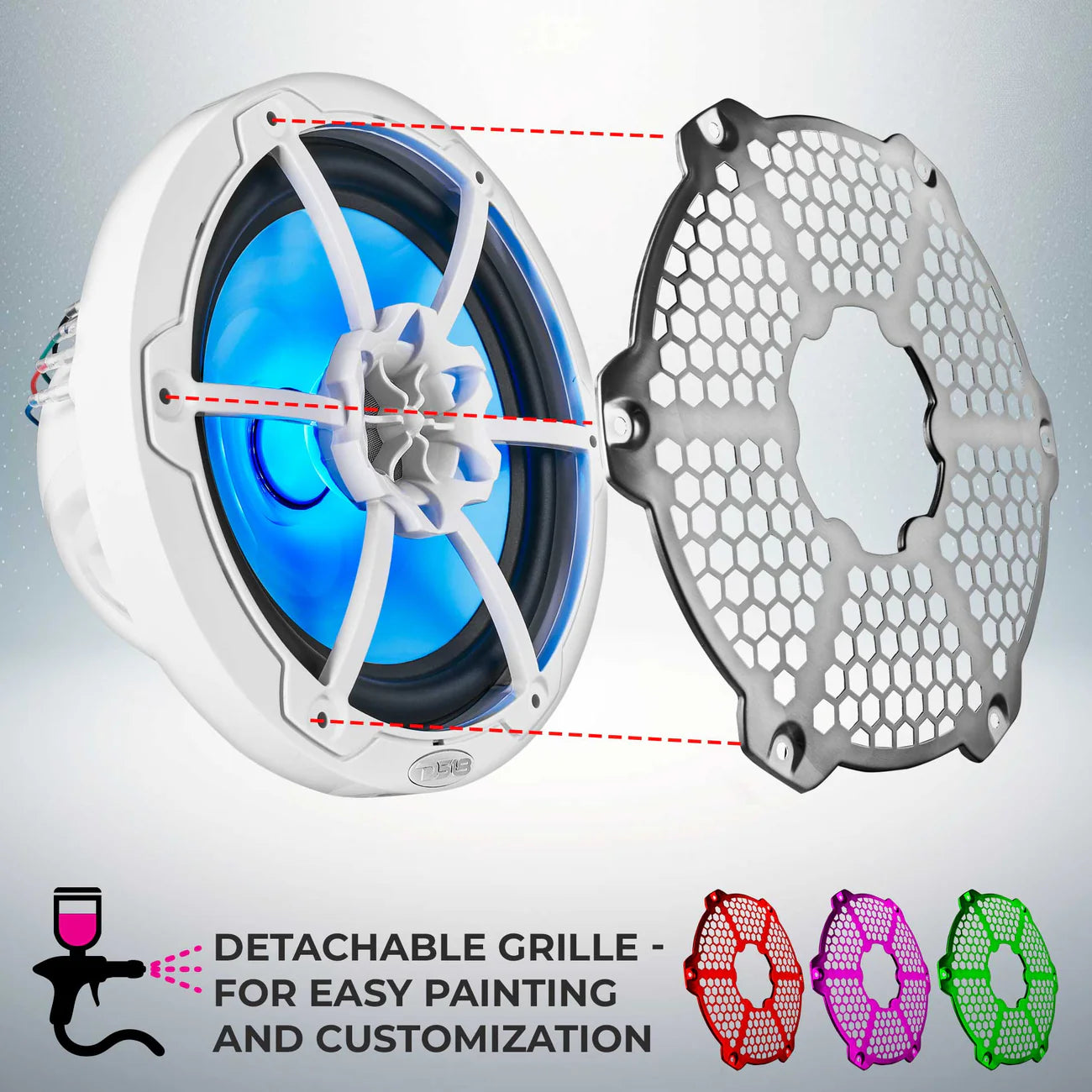

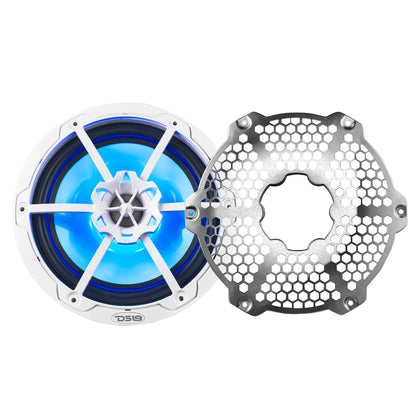

The NXL-8M is the perfect upgrade for your boat, ATV, or powersport rig. These 8” beasts are built marine-tough with IP65 protection, UV-stable components, and a rugged ASA grille with stainless steel mesh.

Sonic Power
You get 125W RMS and 375W MAX of crisp, full-range sound—loud enough to drown out wind and waves without breaking a sweat. With a 93dB sensitivity rating, they stay loud and clear even at low power. The 25mm titanium dome tweeter, paired with the reverse Neodymium magnet, captures every note from 35Hz to 23KHz with stunning clarity and punch.

Ready to Shine

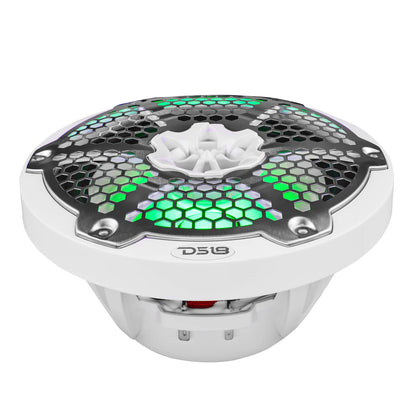

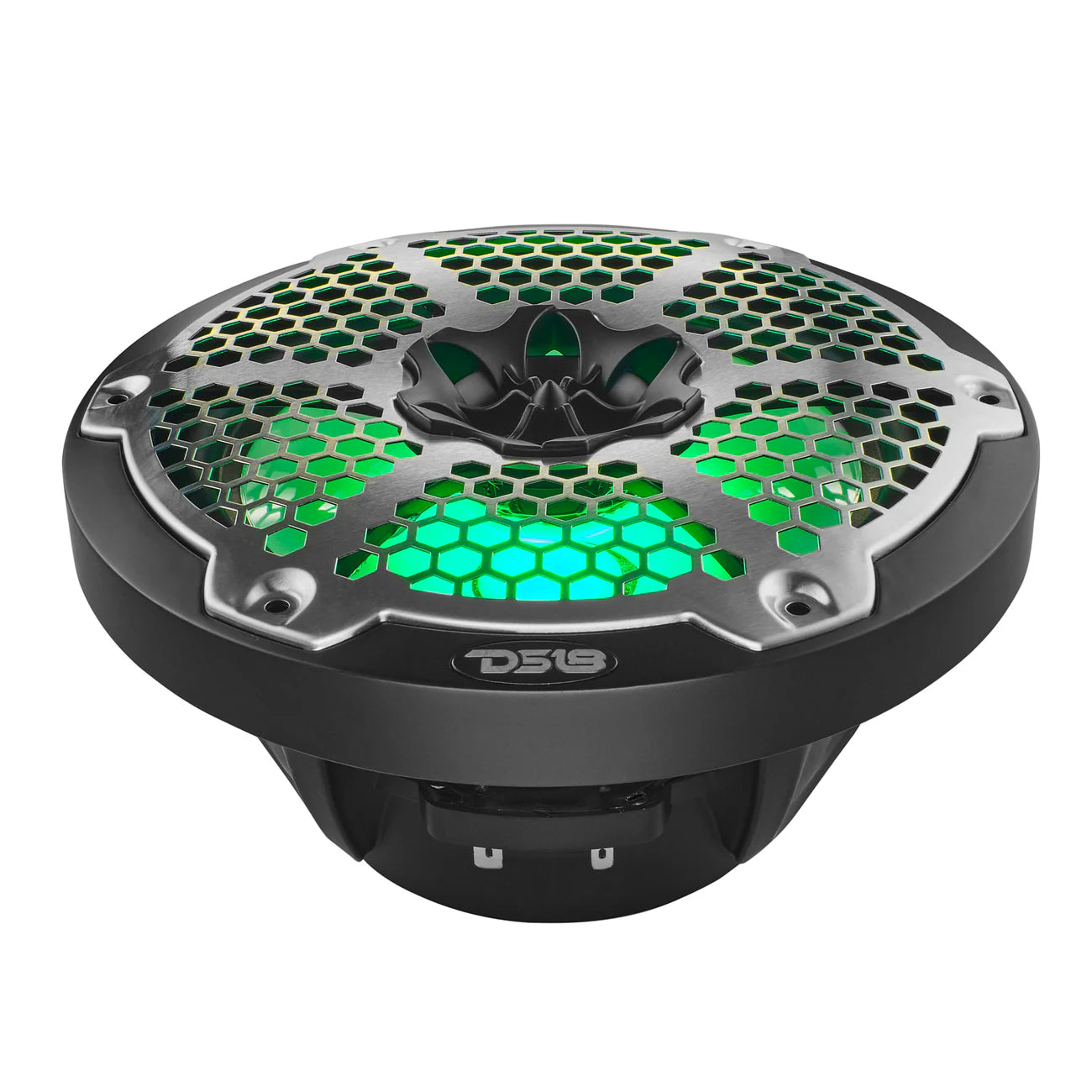

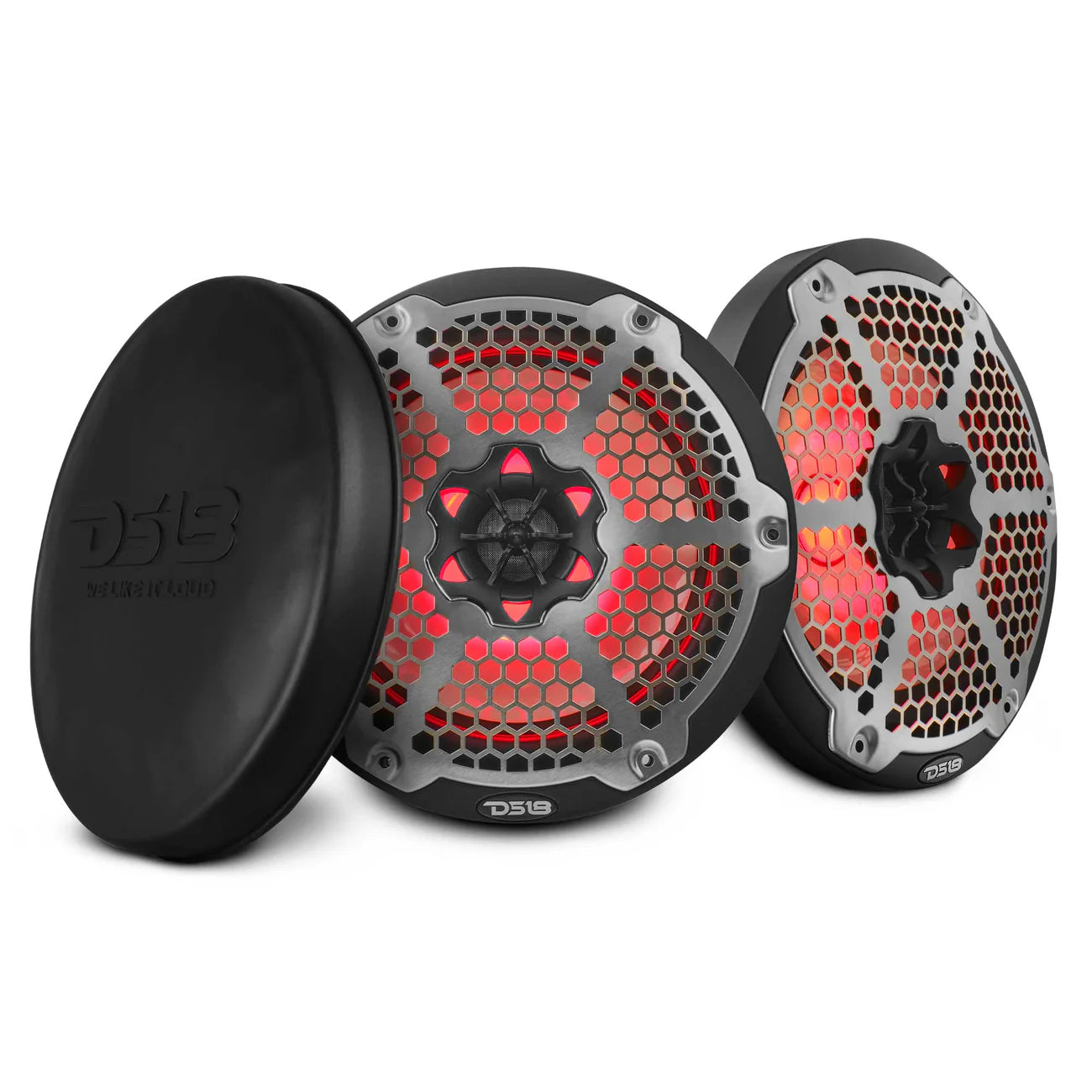

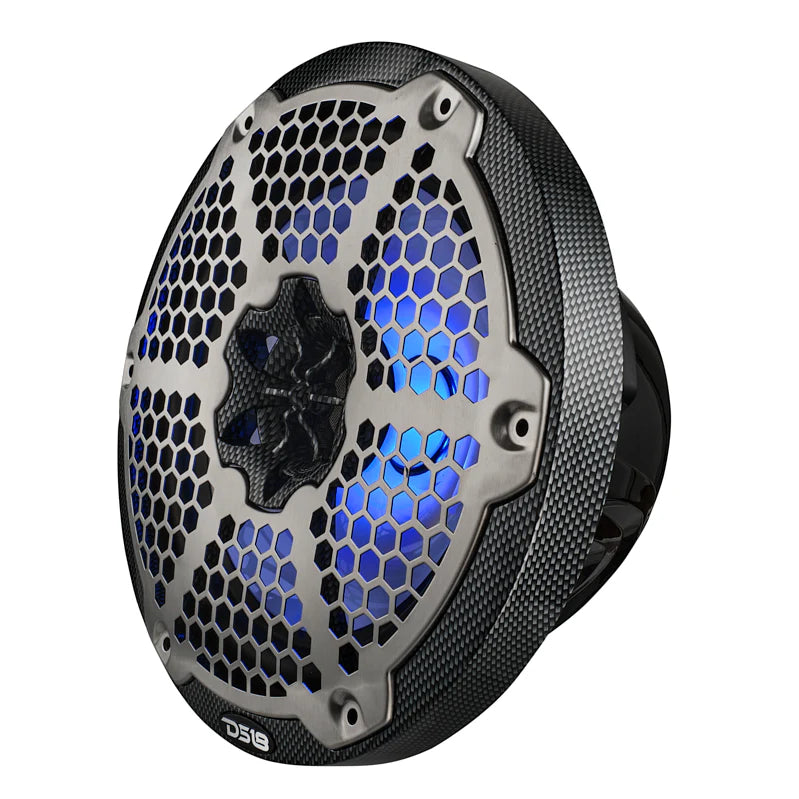

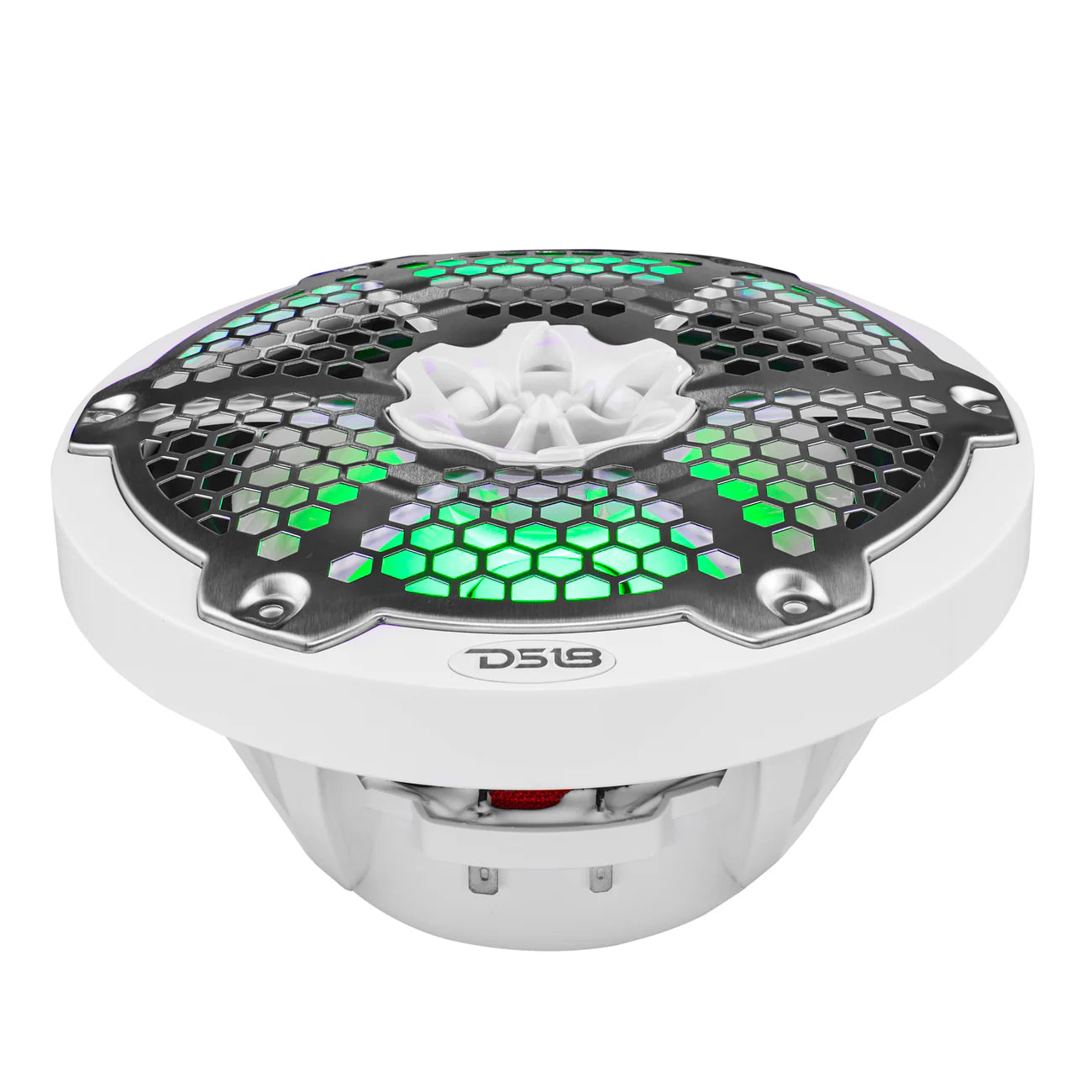

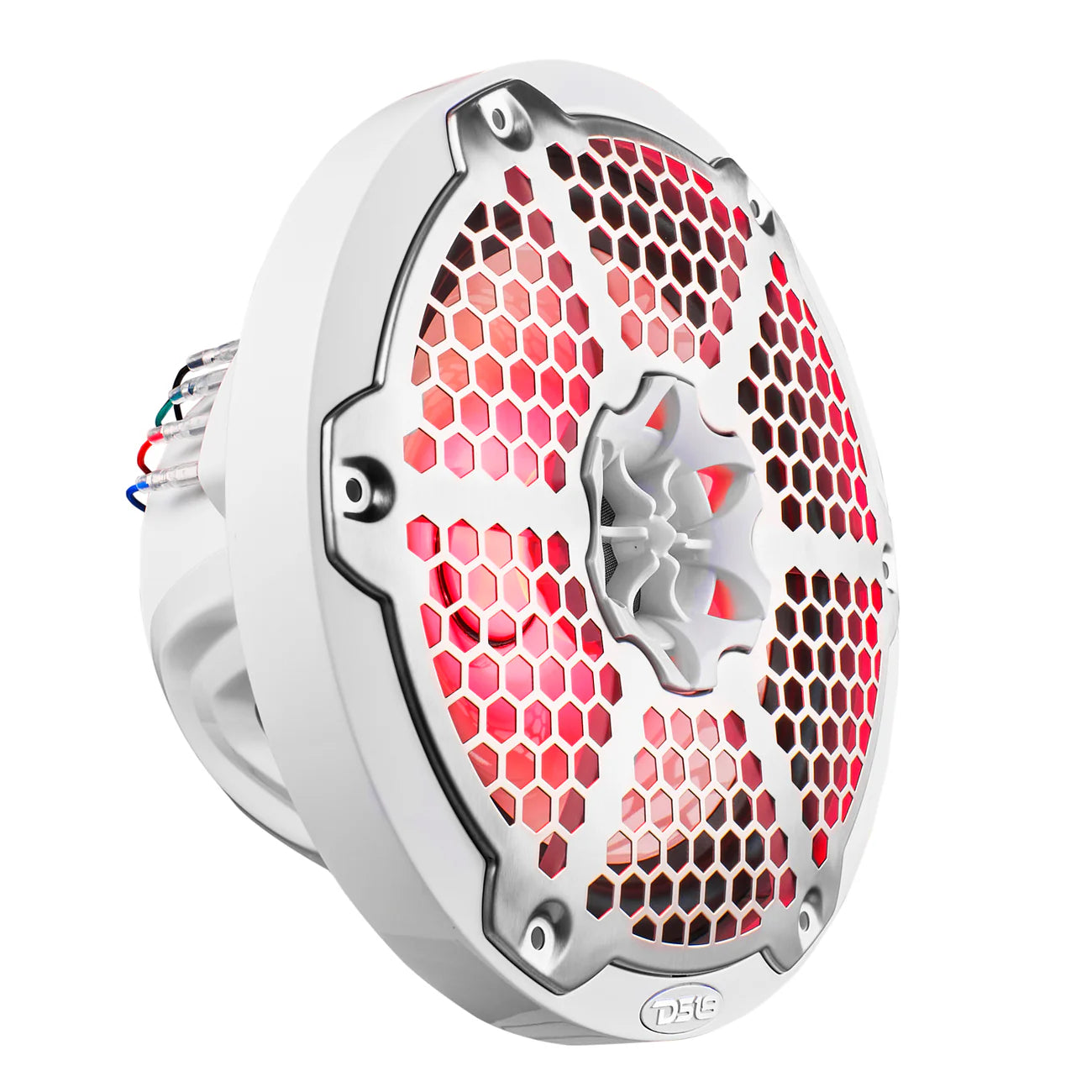

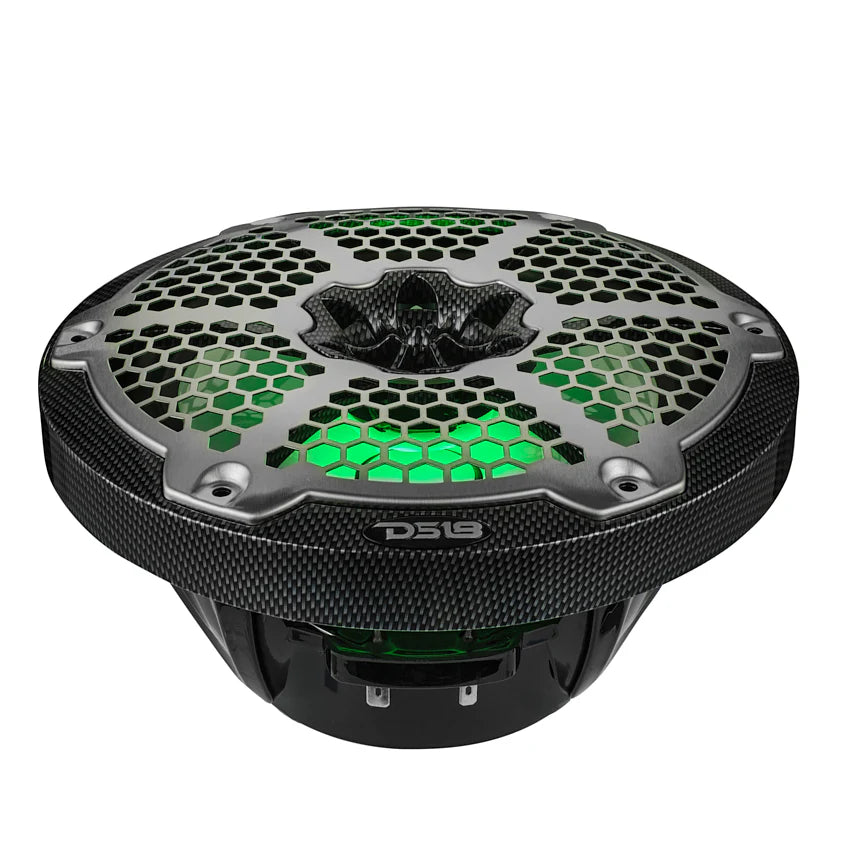

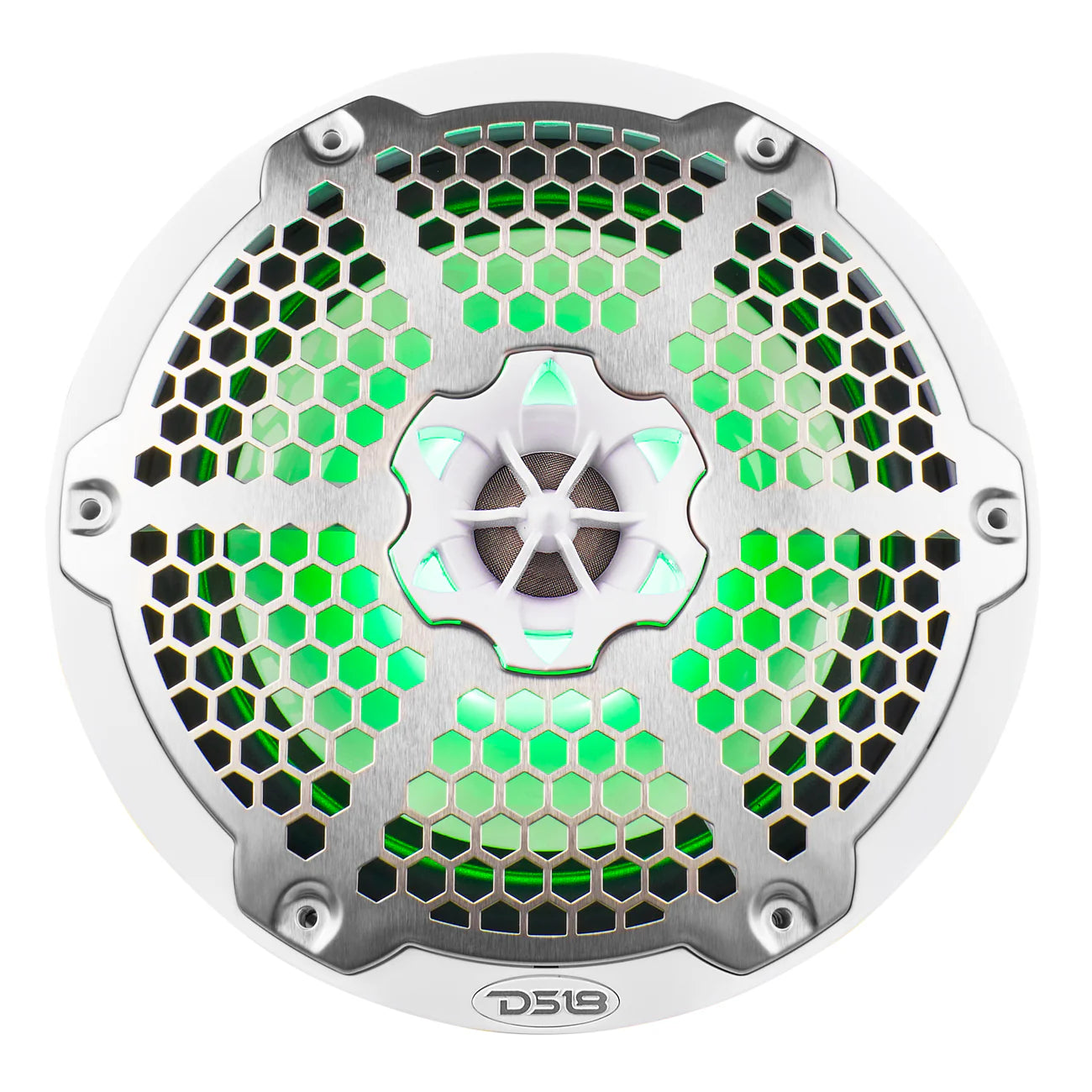

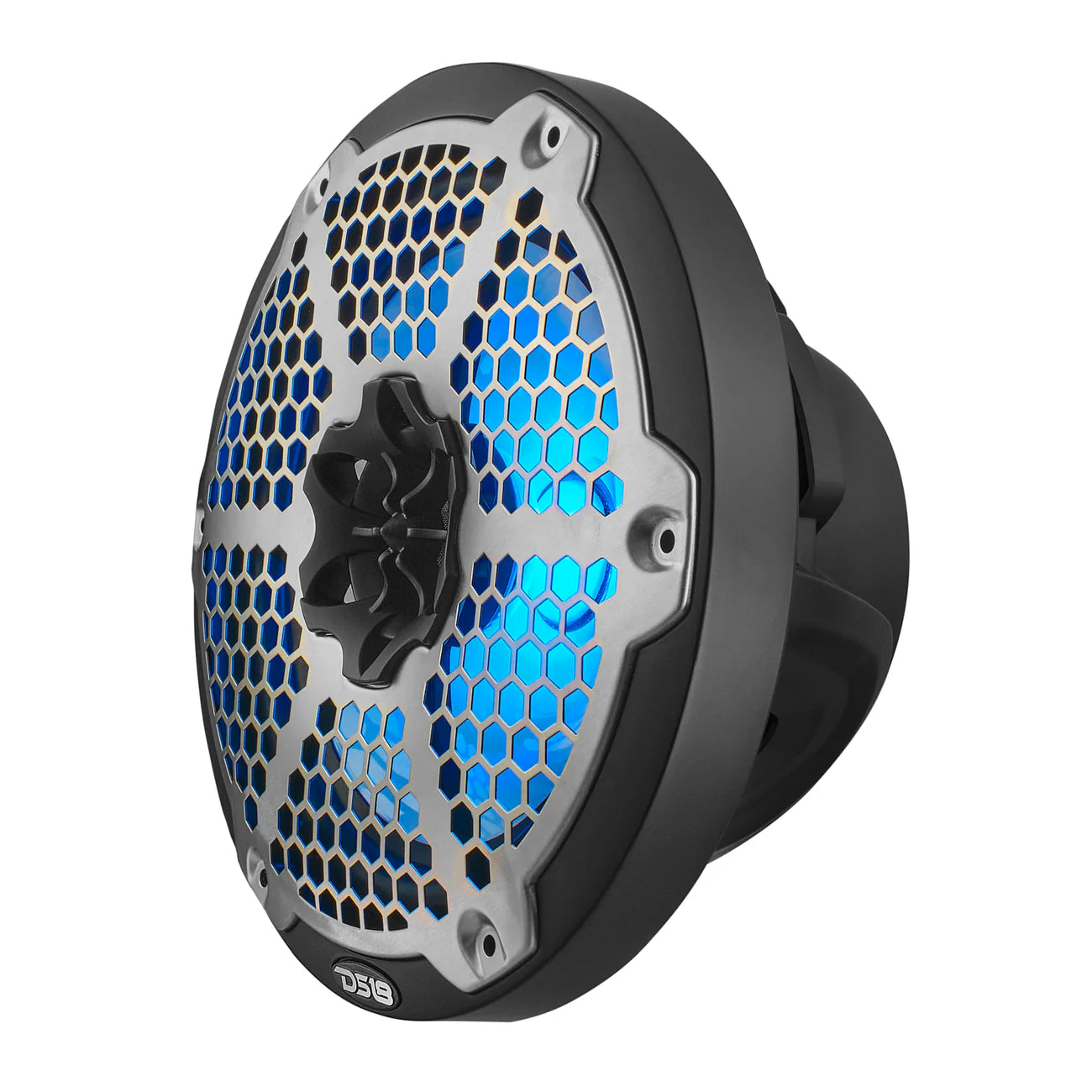

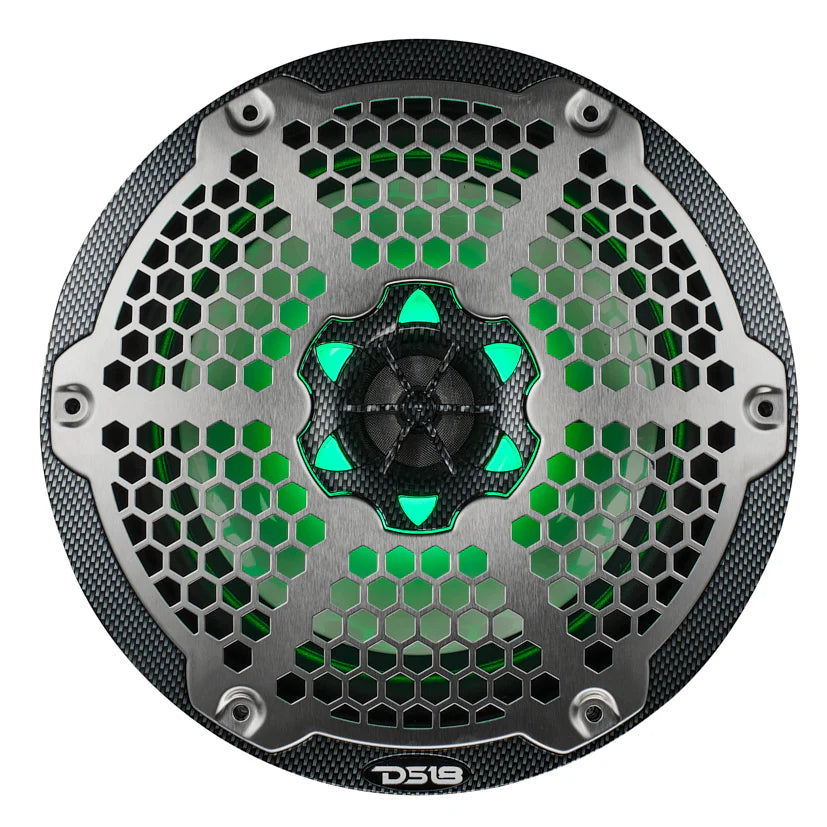

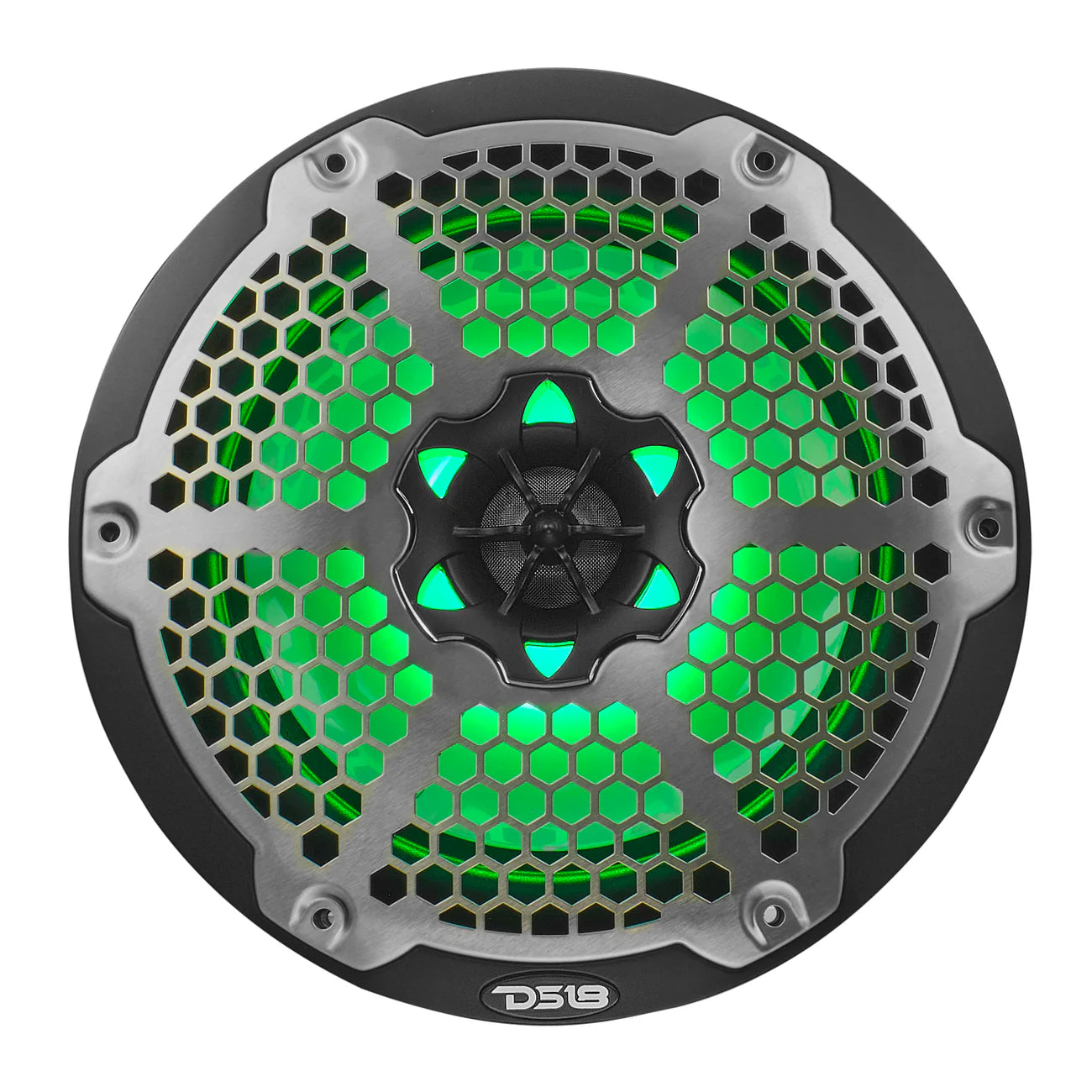

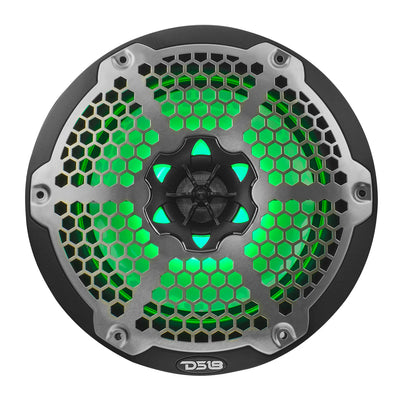

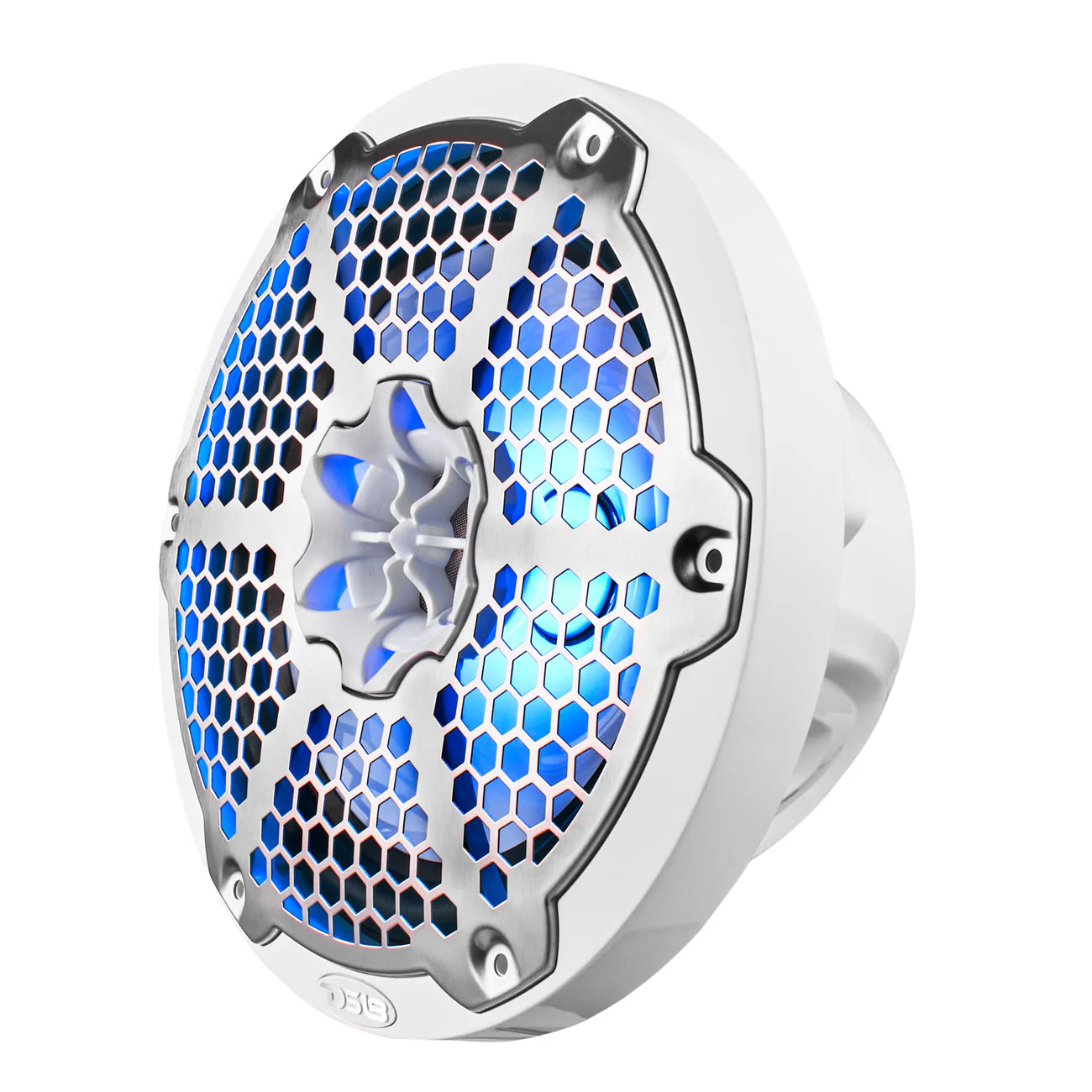

Integrated RGB LED lighting gives your setup a whole new vibe. Sync with DS18's LC-RGB (sold separately) to unlock full color control and animation.

Design That Goes the Distance

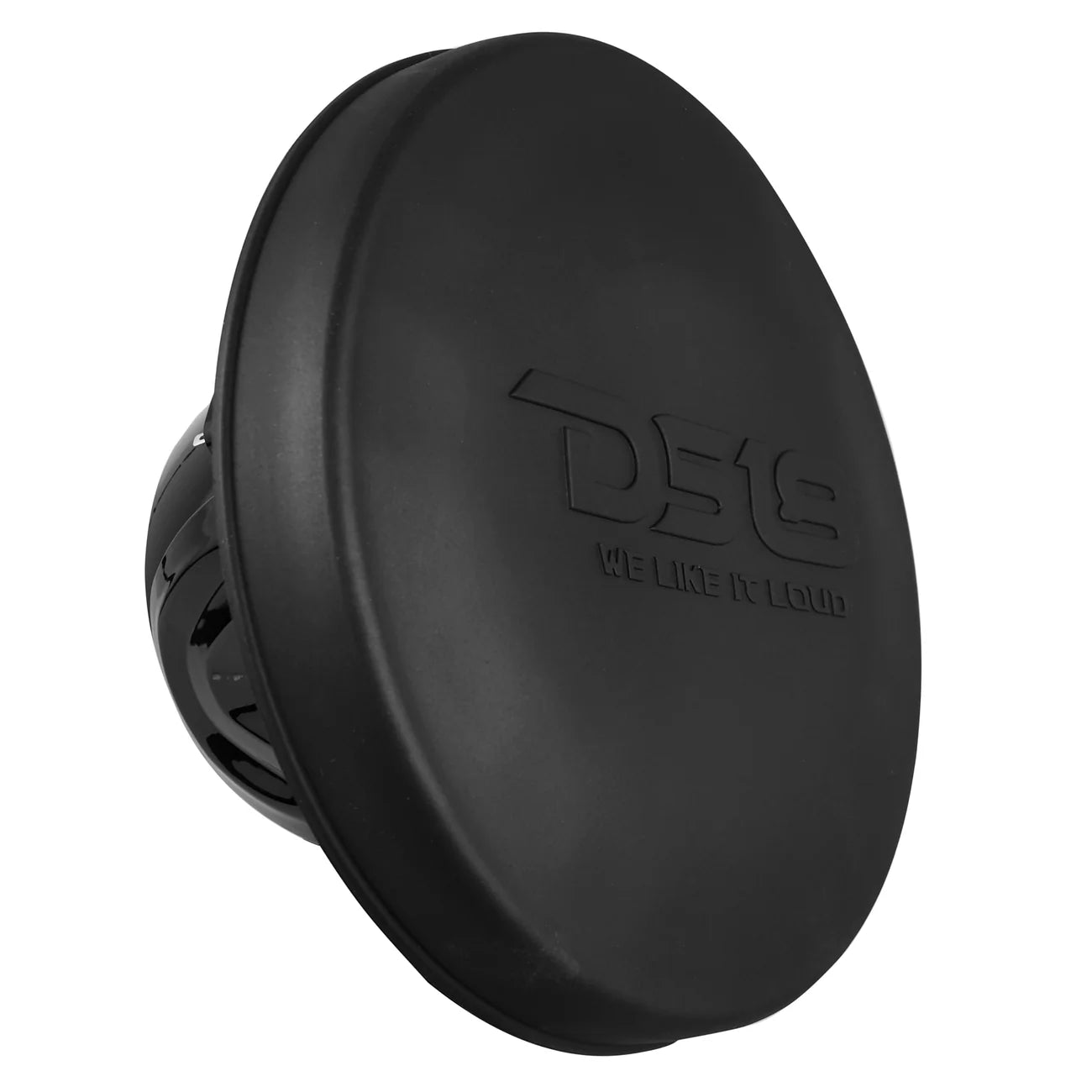

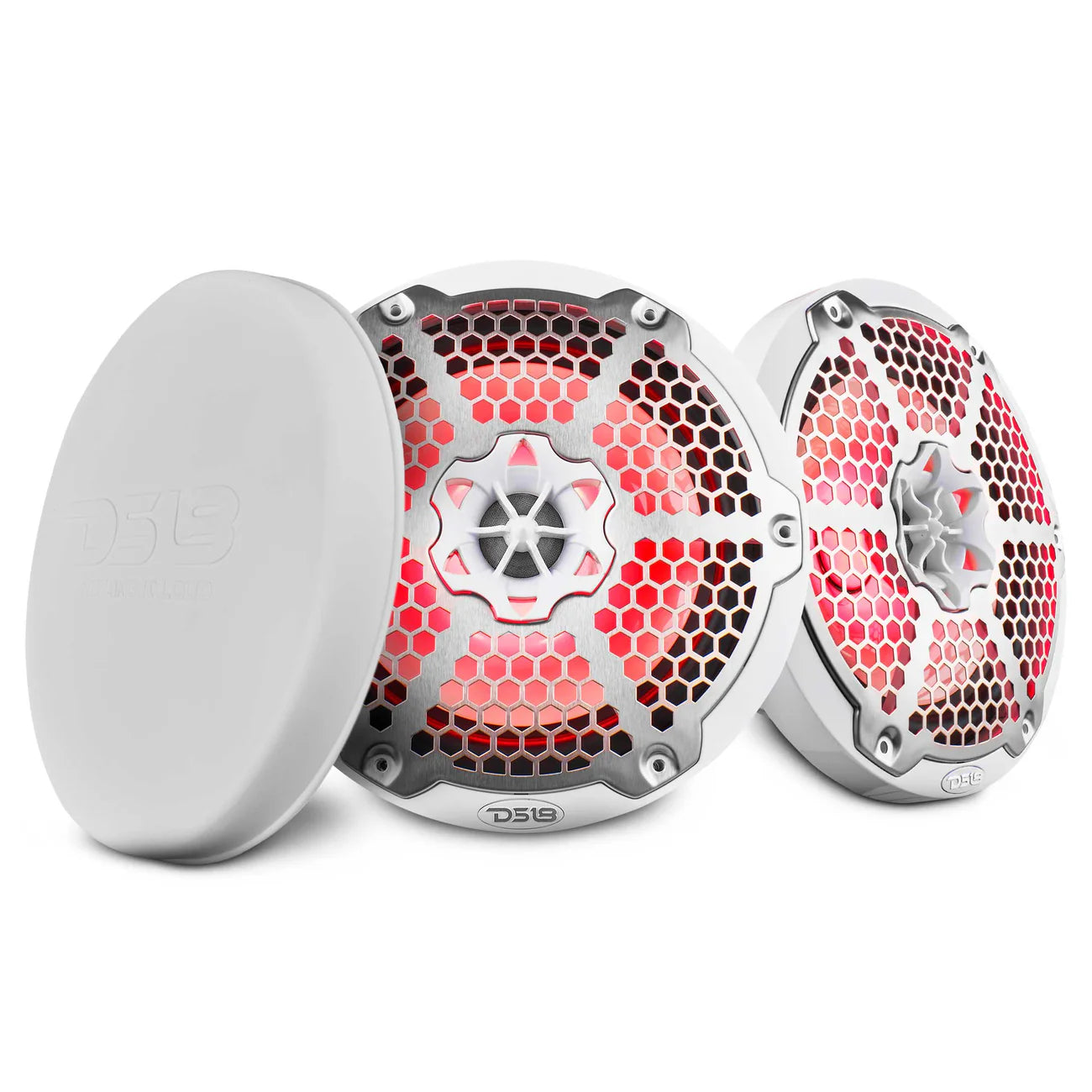

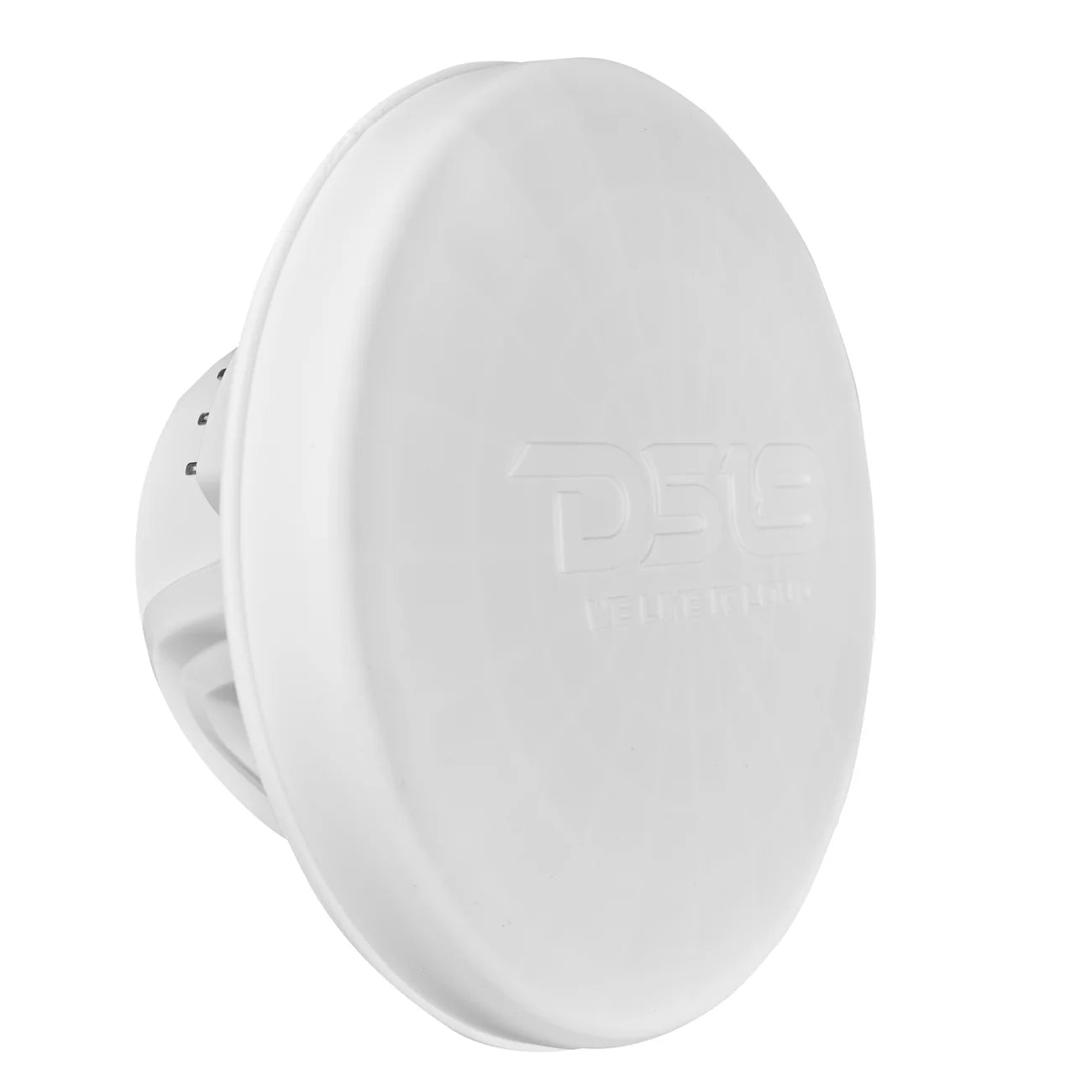

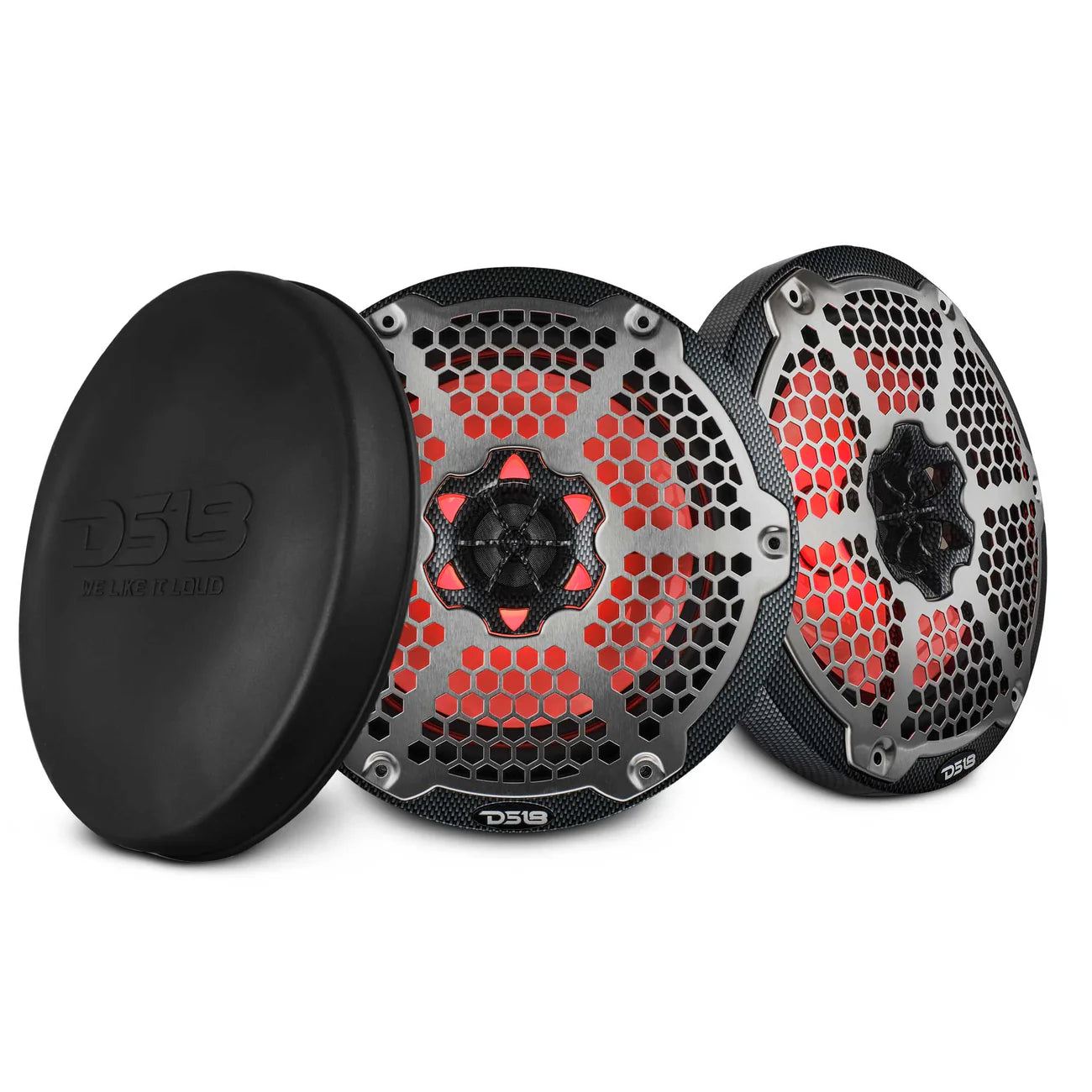

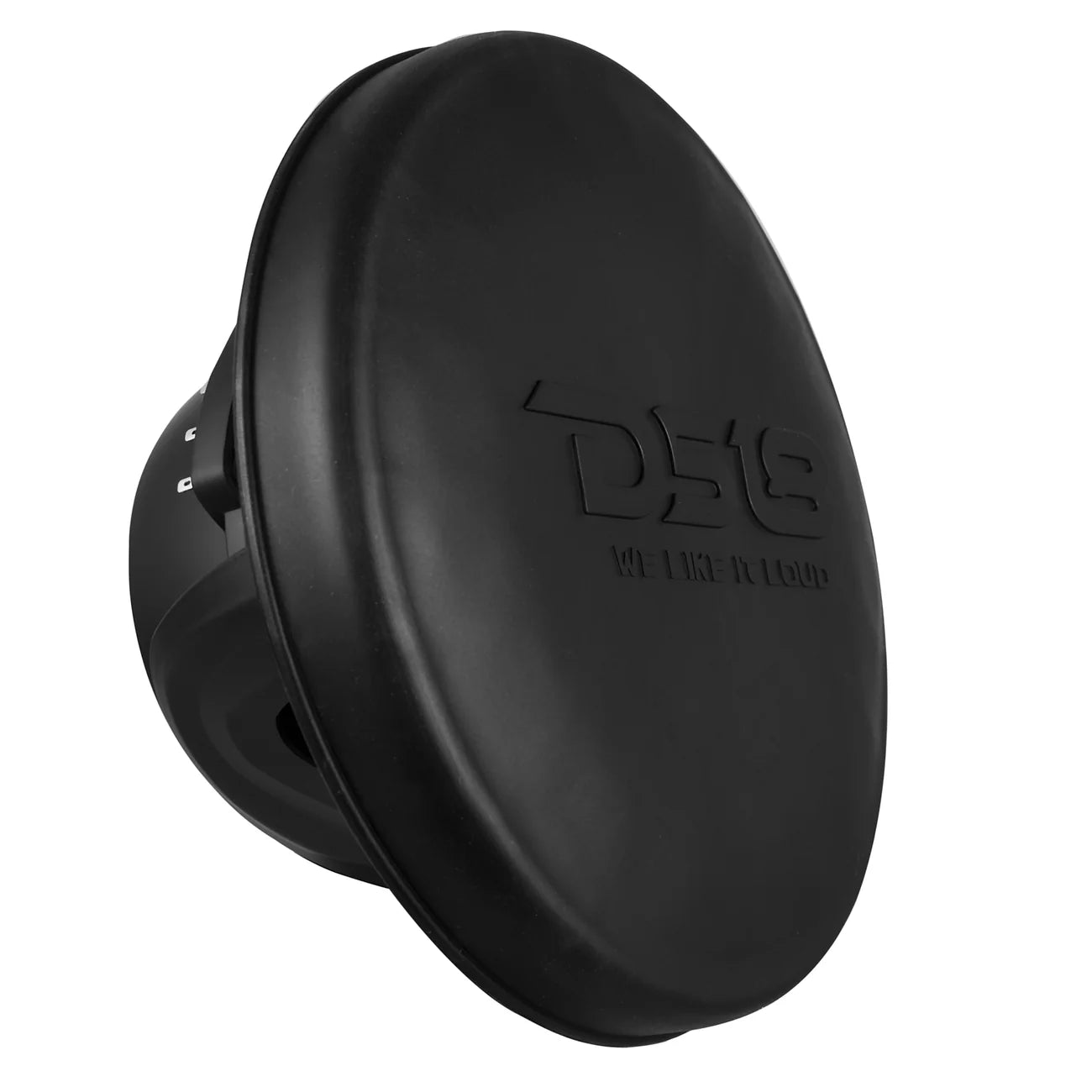

Crafted from high-temp injection-molded composite with UV protection, the NXL-8M is designed to last and stay looking sharp. The new silicone cover adds even more durability.

The NXL-8M delivers DS18’s signature style, performance, and attitude in one killer package!

SPECS

SKU
NXL-8M
Nominal Diameter
8" / 203mm
Nominal Impedance
4 Ohm
RMS Power Handling
125W
MAX Power Handling
375W
Sensitivity (1w/1m)
93dB
Frequency Response
35Hz-23KHz
Recommended HI Pass Crossover
50 Hz


Body / Features

UV Compliant
Yes, 100% Stable
Marine Grade Type
IP65
RGB LED
Yes, RGB integrated
Grill Type
Injection Molded Composite ASA with 316 Stainless Steel mesh
Pair
Yes
Color / Finish
Glossy White


Woofer Specifications

Voice Coil Diameter
1.2" / 30.5mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Injection Molded Polypropylene + UV Compliant
Surround Material
Butyl (Rubber)
Basket Material
High Temp Injection Molded Composite ASA with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
24oz + 0.32oz


Tweeter Specifications

Nominal Diameter
1" / 25.4mm
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Titanium + PEI Surround
Magnet Material
Neodymium (N38H)
Magnet Weight
0.54oz


Thiele & Small Parameters

Equivalent Volume Vas
66.7L / 2.35ft3
Excursion (one way) Xmax
8.5 mm
Free Air Resonance Fs
56Hz
Mechanical Factor Qms
7.701
Electrical Factor Qes
0.899
Total Factor Qts
0.805
Moving Mass Mms
7.265g
Compliance Cms
1.119mm/N
Bl Factor Bl
2.98
Voice Coil Inductance Le
0.49mH
Cone Area Sd
206.12cm2
DC Resistance Re
3.15ohms
Efficiency Bandwidth Product EBP
62.2

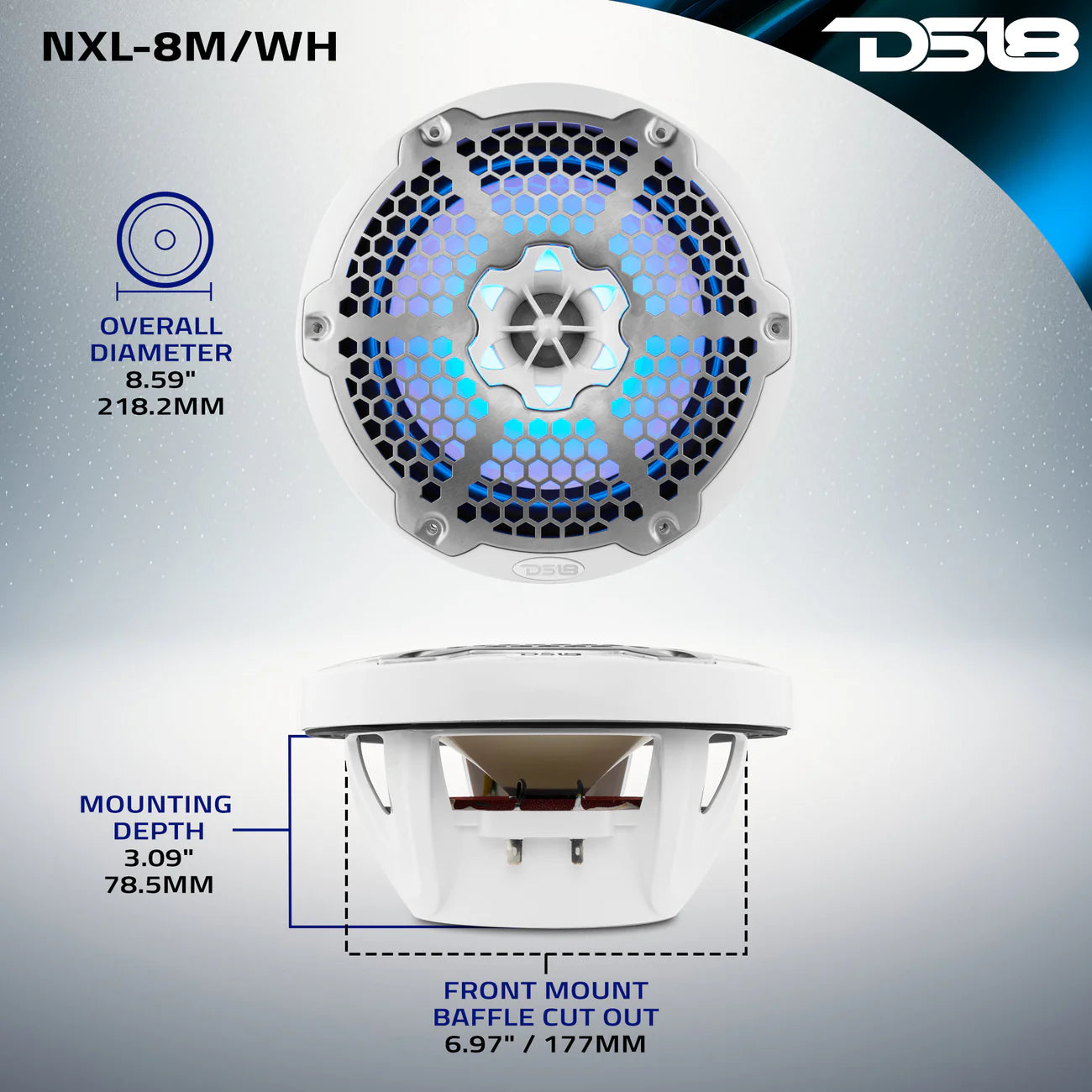

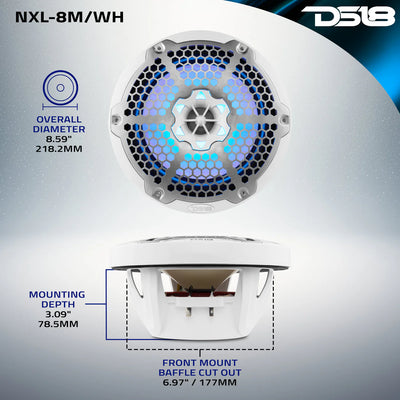

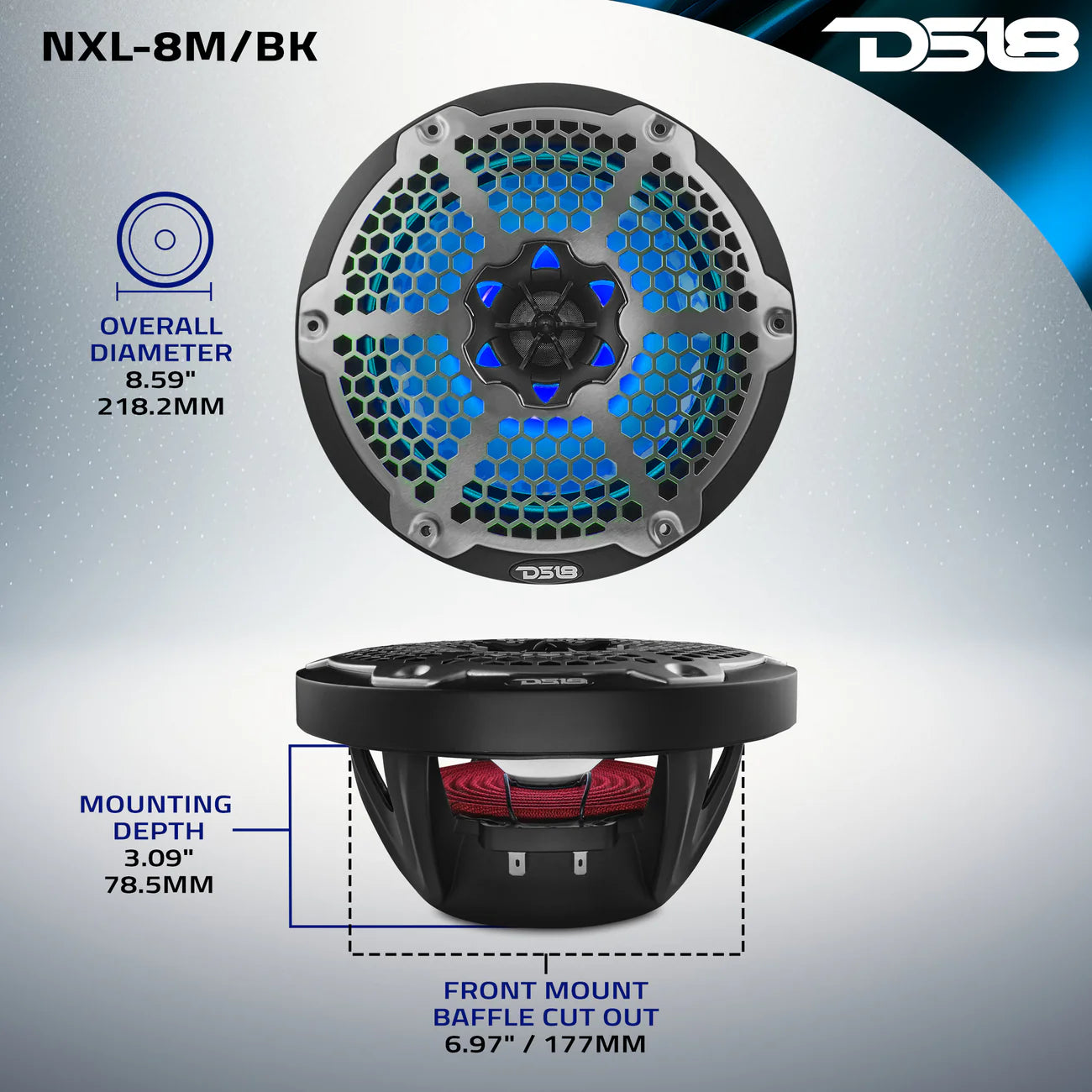

Speaker Measurement

Overall Diameter
8.59" / 218.2mm
Overall Depth
4.45" / 113mm
Front Mount Baffle Cutout
6.97" / 177mm
Mounting Depth
3.09" / 78.5mm
Motor Diameter
4.32" / 110mm
Gross Single Unit Weight (lb)
10.5
Single Unit Box Dimensions W x L x H (Inches)
20 x 10.5 x 5.5
Quantity of Units in Master Carton
2
Gross Master Carton Weight (lb)
23
Master Carton Dimensions W x L x H (Inches)
20 x 11.5 x 11.5
