NXL-IQ8

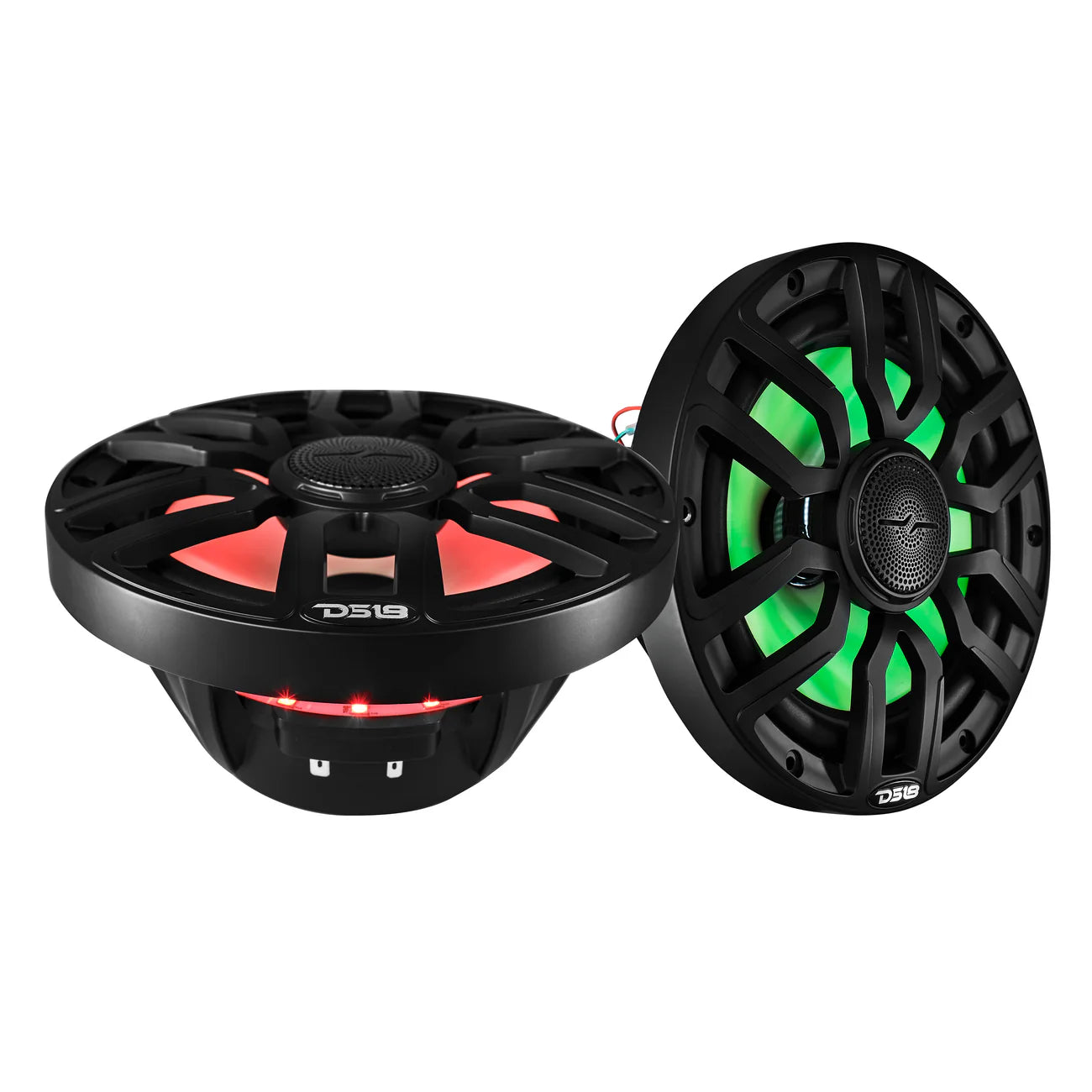

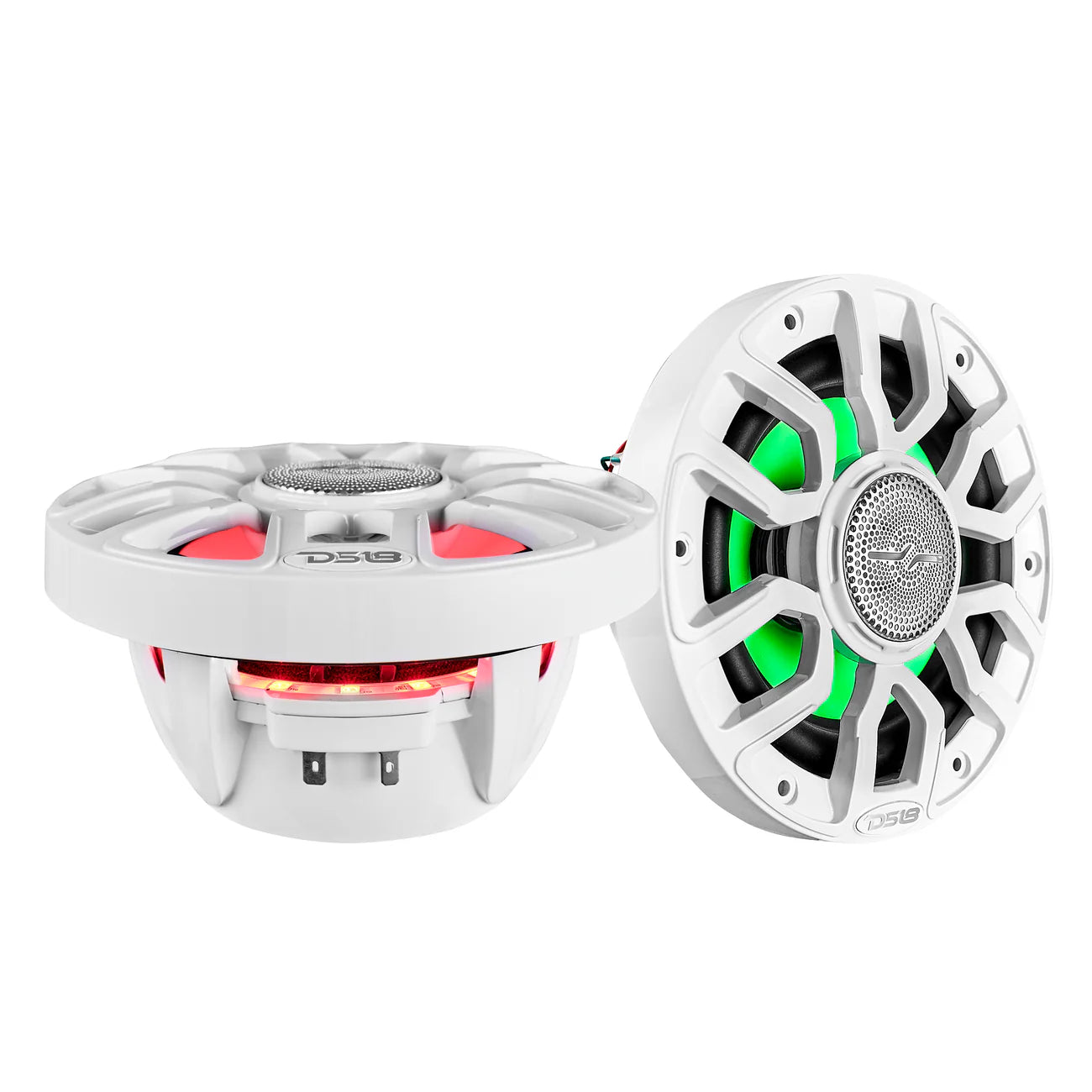

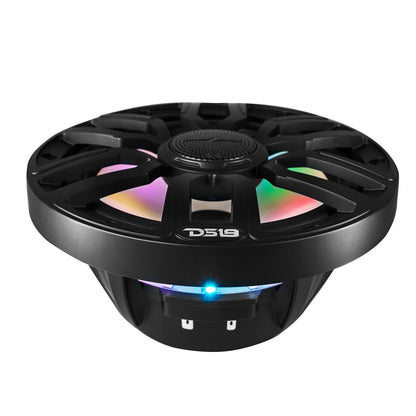

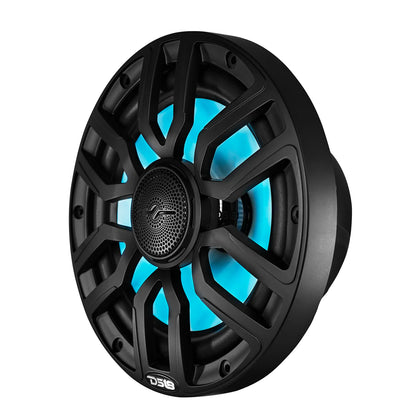

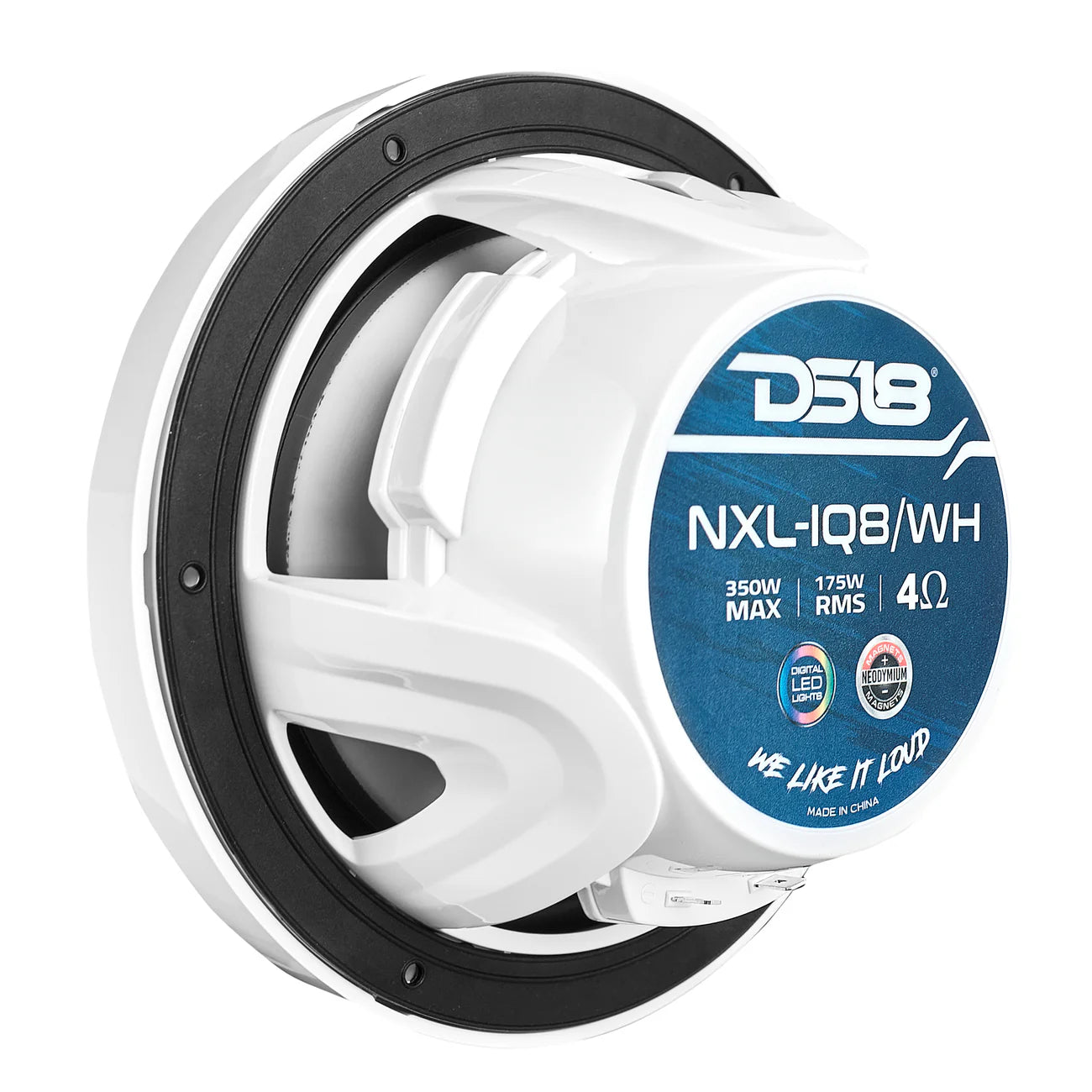

8” Marine Grade Coaxial Speaker With LED Lights & Floating Bullet Tweeter

The NXL-IQ8’s are a DS18-engineered, weatherproof, LED-lit speaker set designed to throw sound across open water and make it look good.

Big Sound in Any Environment
Each 8” 2-way coaxial speaker delivers 175W RMS / 350W MAX and is tuned for high quality full-range performance.

Built for the Elements
Rated IP65 waterproof and 100% UV stable, the NXL-IQ8 is built for real marine use—rain, salt, and sun included. Injection-molded polypropylene cones, soft rubber surrounds, and ASA composite baskets keep everything tight and tough no matter the conditions.

Pro-Level Clarity
The 25mm floating bullet tweeter, powered by a Neodymium magnet and aluminum diaphragm, is mounted right in the grill for max clarity and projection. Copper motor rings in the woofer enhance long-distance sound so your music hits harder and travels farther.

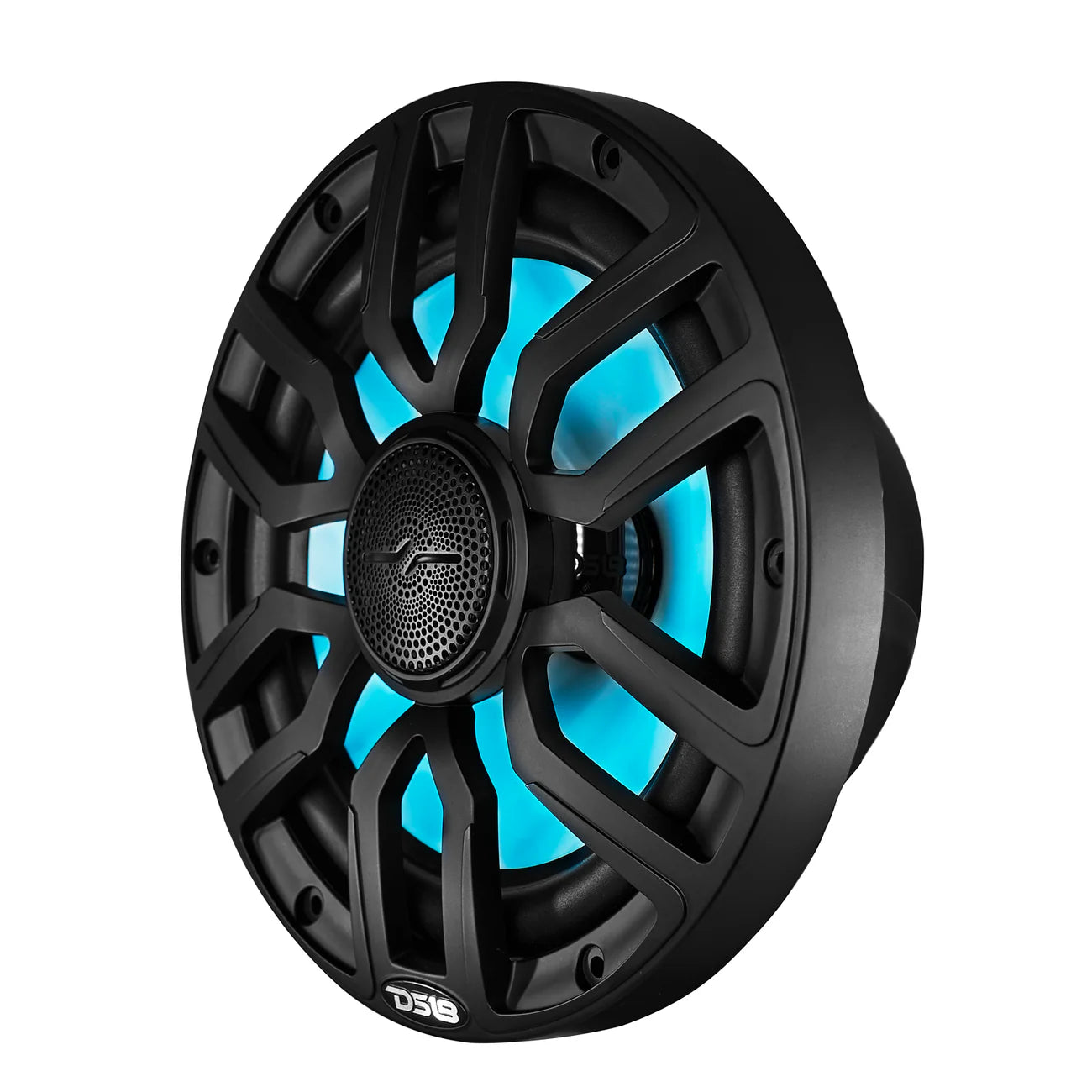

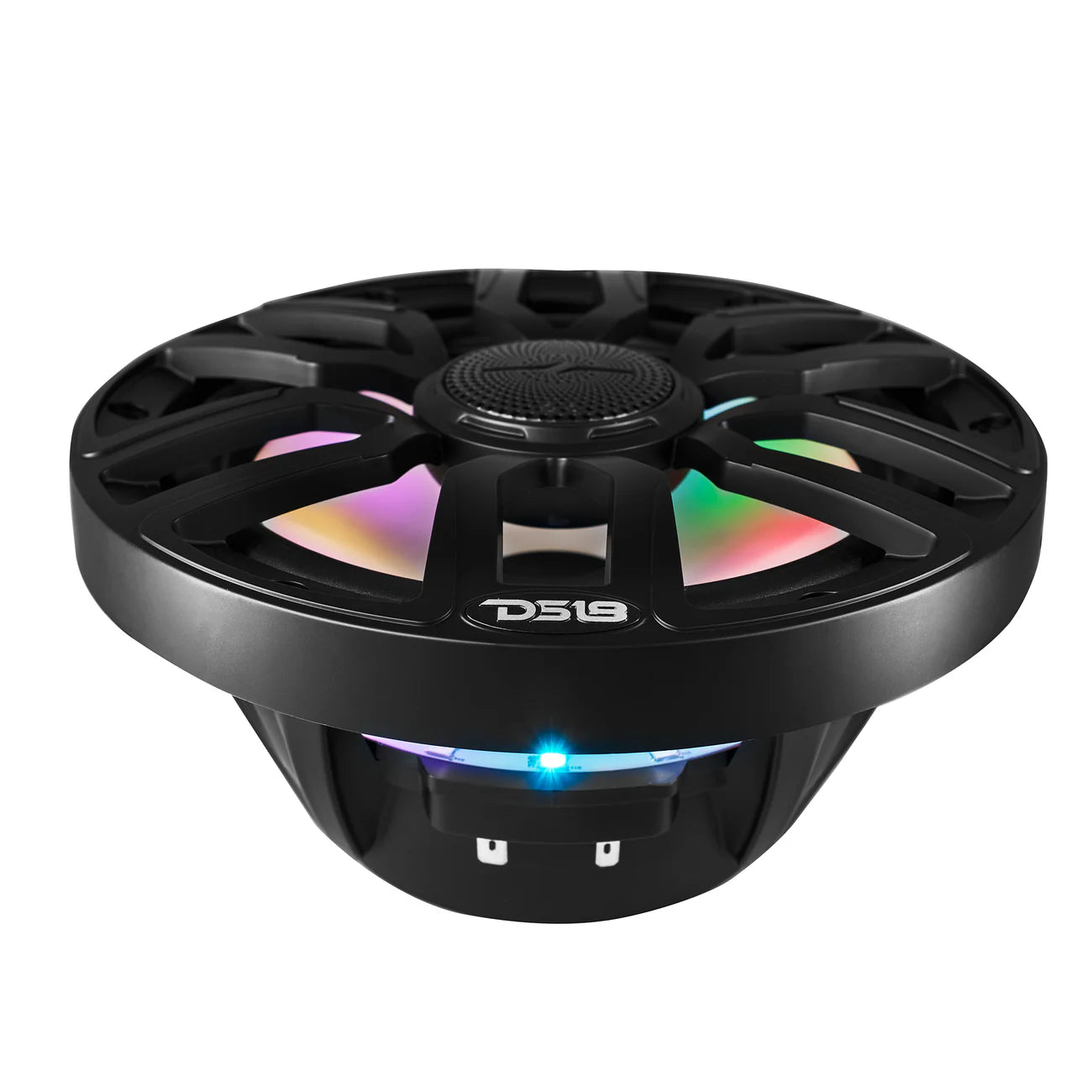

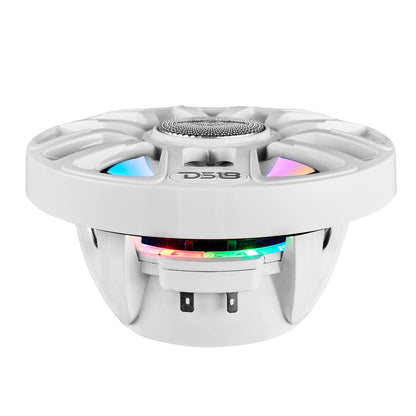

Custom Digital LED Lighting

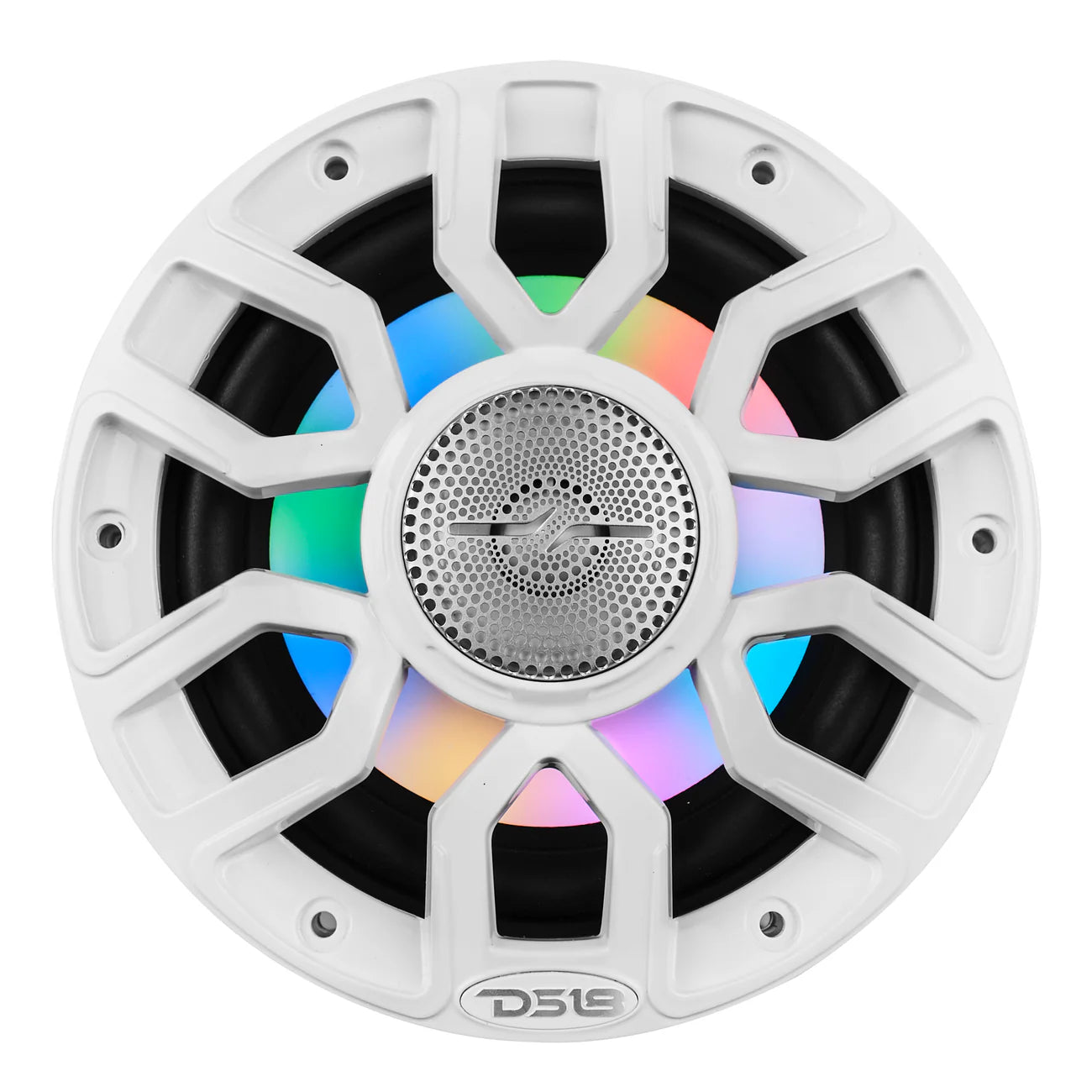

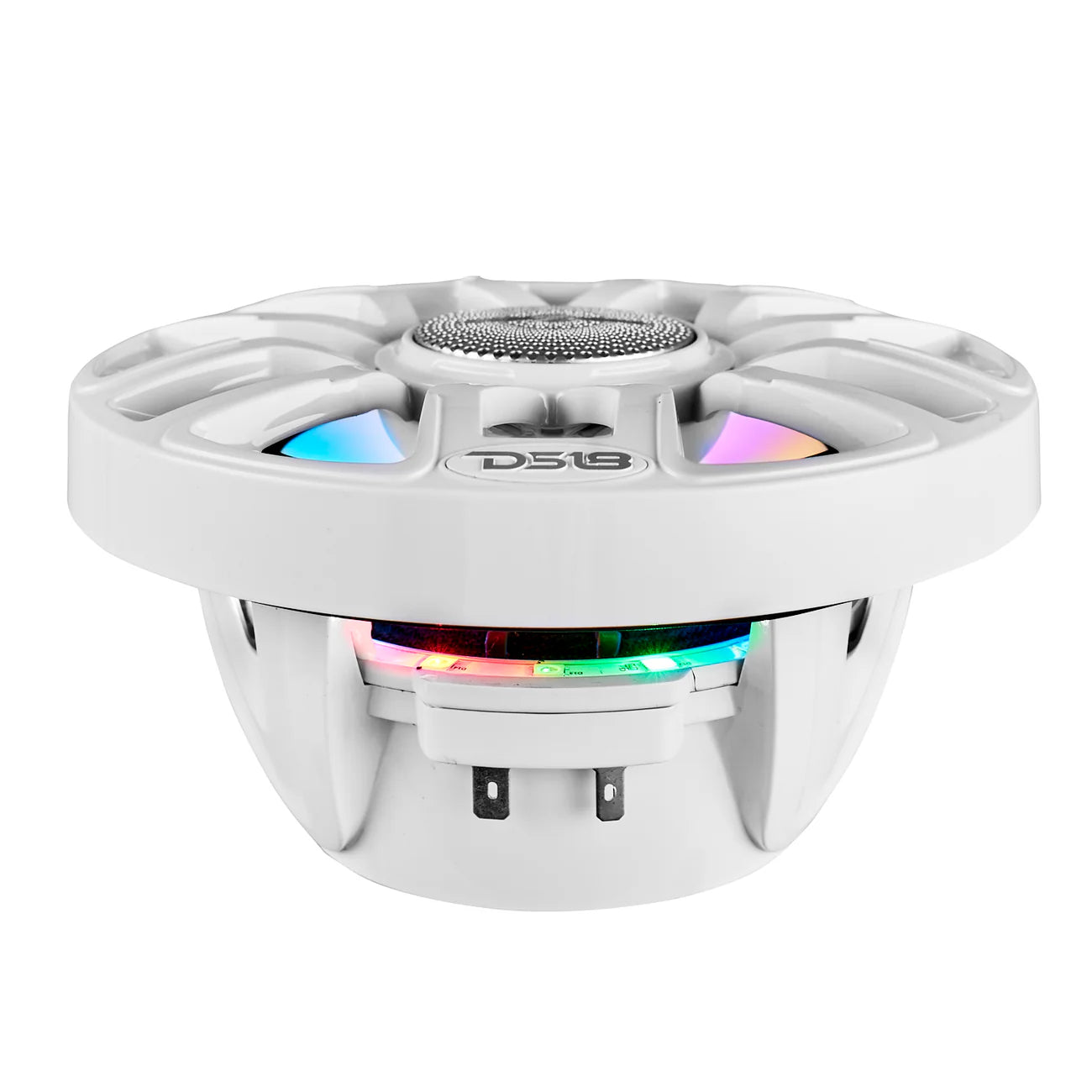

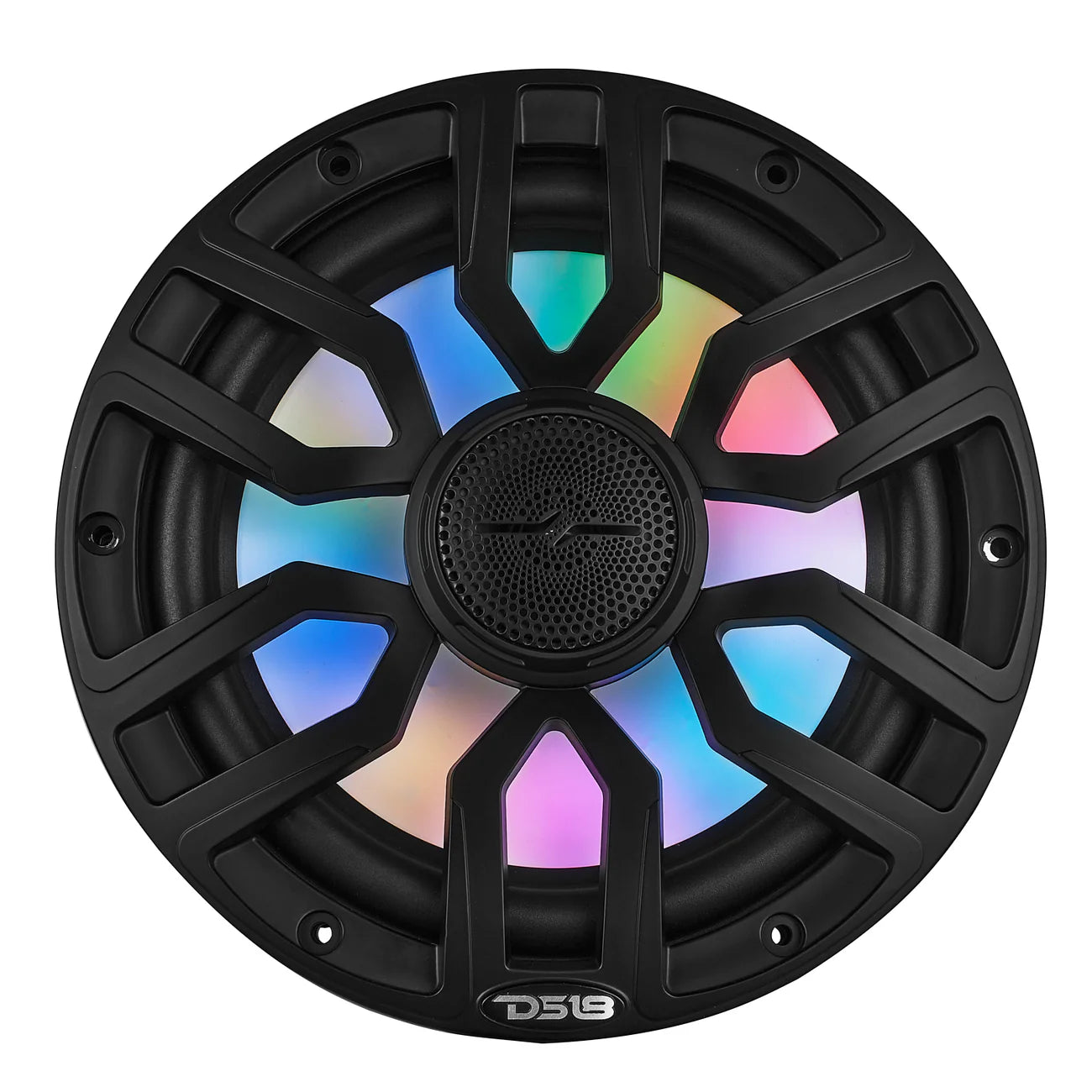

Digital RGB LEDs are built into the speaker cone for smooth, vibrant lighting. Just grab the DS18 LC-DRM controller—sold separately—to unlock full control of your digital LED’s.

Easy Install

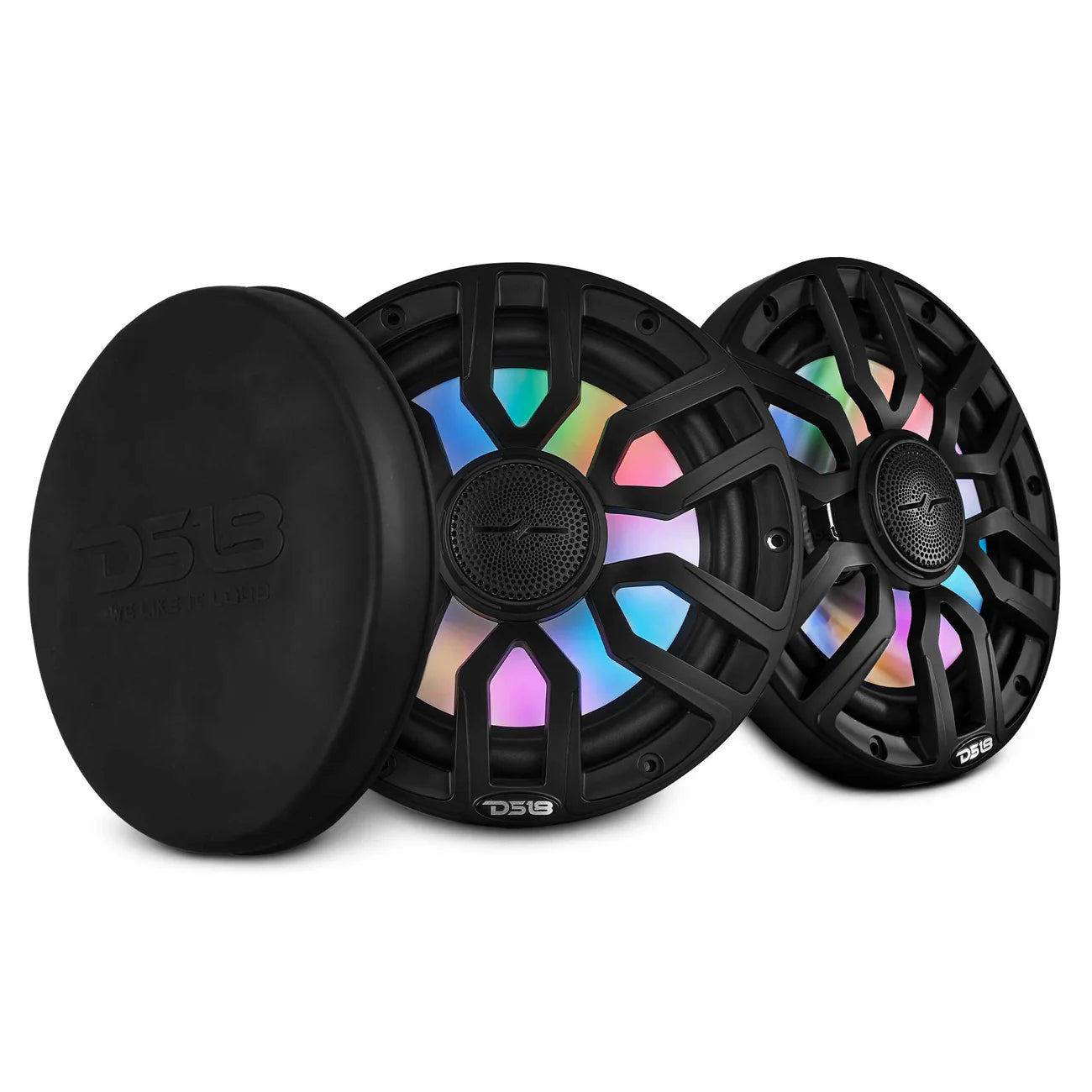

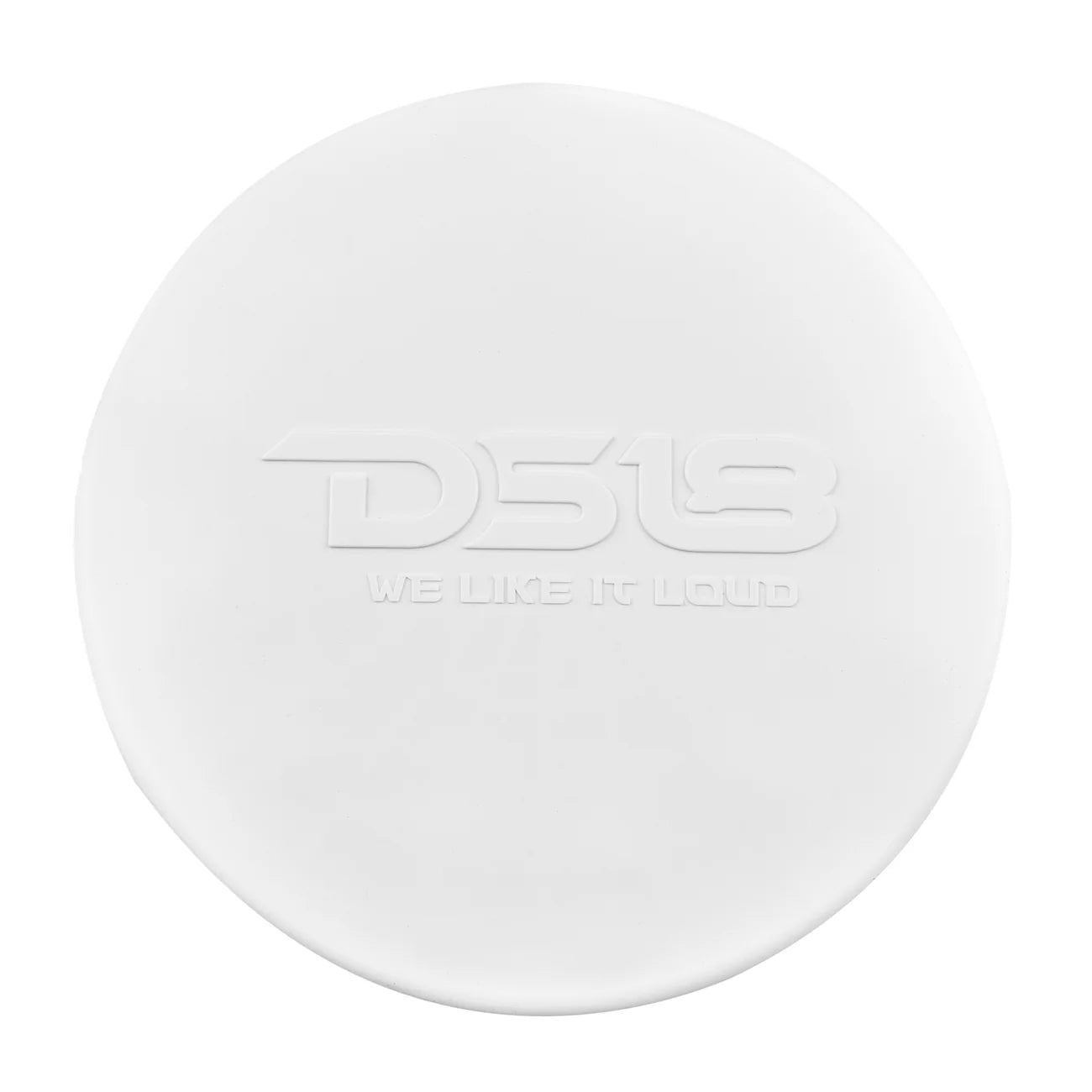

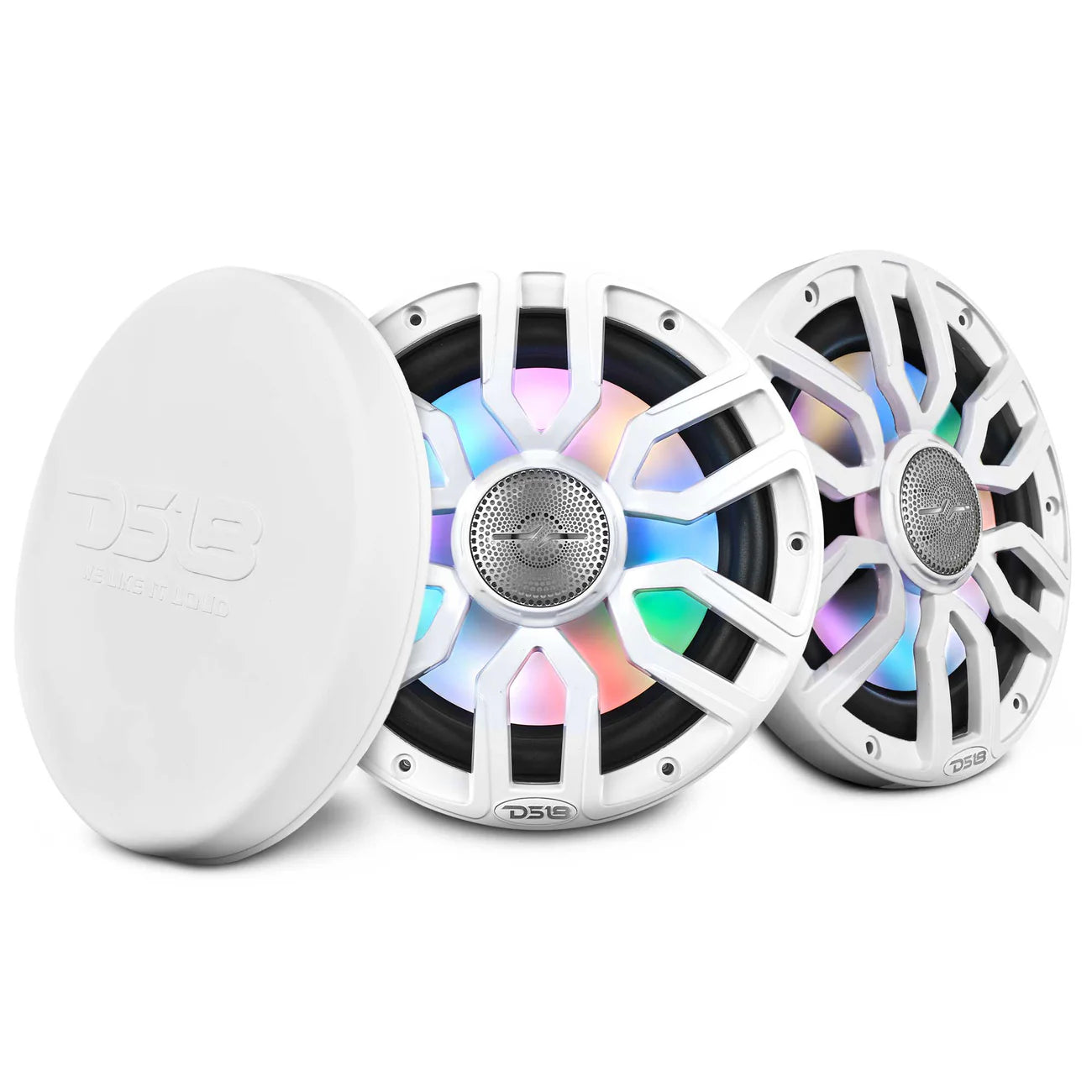

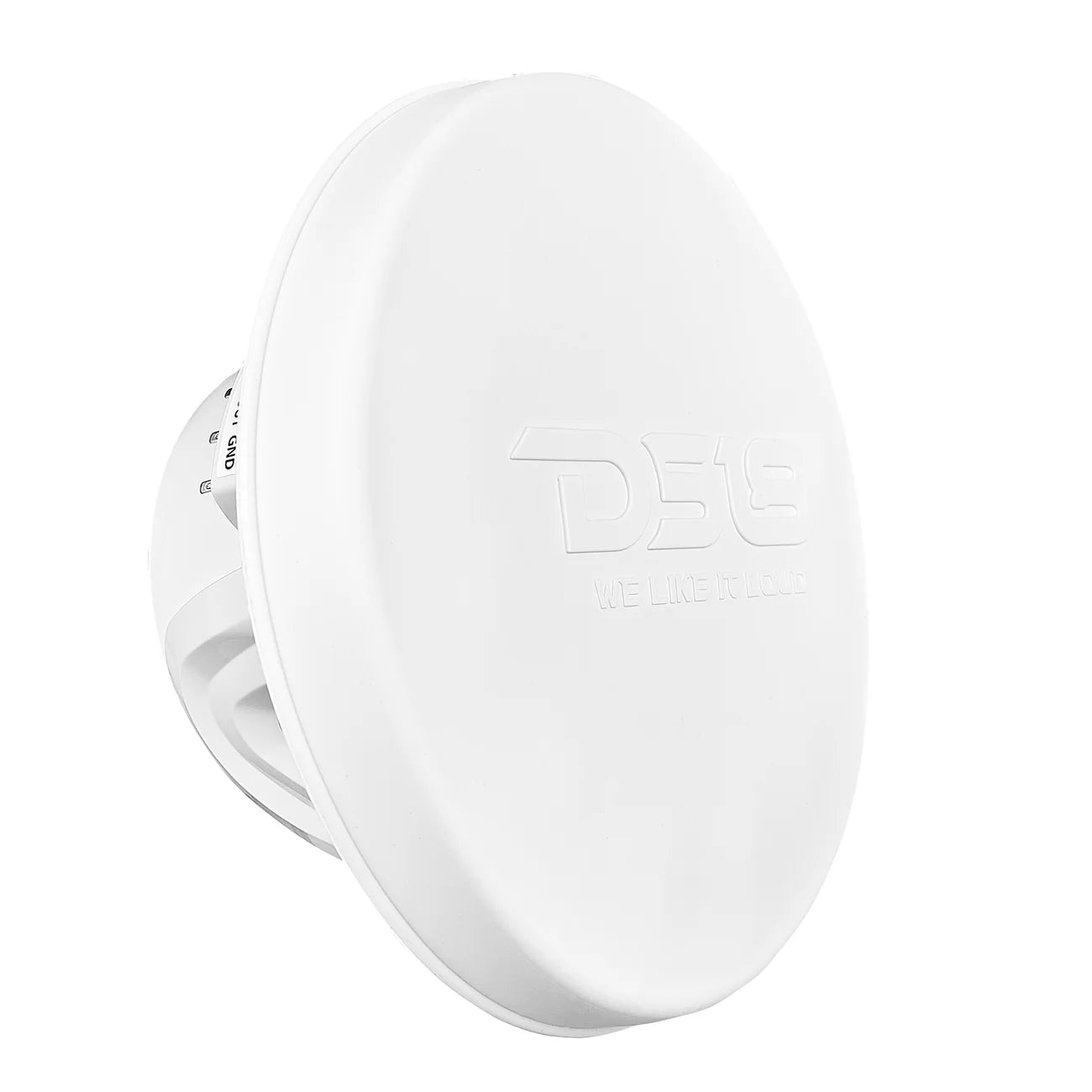

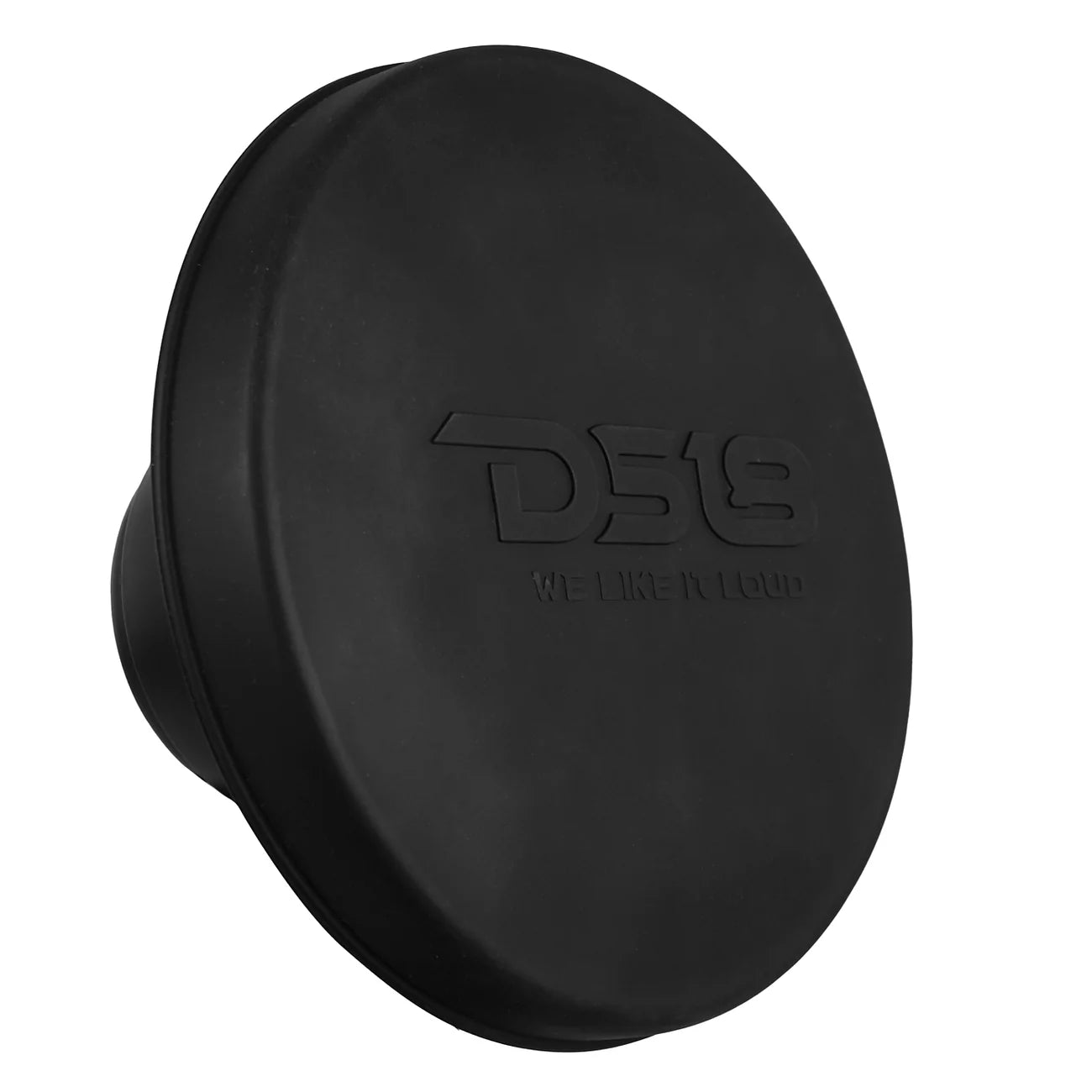

Sold as a pair, each speaker includes stainless steel hardware, silicone protectors, and plug-and-play wiring for both audio and lighting. Drop them in, wire them up, and you’re ready to show out.

The BT Digital LED Control Module (LC-DRM) is required to operate multifunctional digital RGB-LED lighting. The lights will not function without this module.

General
Specifications

SKU
NXL-IQ8
Nominal Diameter
8" / 203mm
Nominal Impedance
4 ohms
RMS Power Handling
175W
MAX Power Handling
350W
Sensitivity (1w/1m)
96dB
Frequency Response
35Hz-20KHz
Number of Ways
2-Ways
Recommended High-Pass Crossover
40Hz
Sold in Pair or Single
Pair


Body
Features

UV Protection
Yes, 100% Stable
Marine Grade Type
IP65
LED Lights
Yes, Digital LED integrated (behind cone)
Digital LED Connection Type
12V & Digital IN/OUT terminal
Digital LED Chip Type
1815S
Grill Type
Injection Molded Composite ASA with UV Protection coating
Color / Finish
White


Woofer
Specifications

Voice Coil Diameter
1.5" / 38.6mm
Voice Coil Former Material
Glass Fiber
Winding Material
CCAW
Cone Material
PPI
Dust Cap Material
PPI
Surround Material
Rubber
Basket Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Ferrite+Neodymium
Magnet Weight
24 oz + 1.1 oz


Tweeter
Specifications

Type
Floating Bullet Tweeter
Voice Coil Diameter
1" / 25.4mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Diaphragm Material
Aluminium
Bullet Material
Injection Molded Composite PC with UV Protection coating
Magnet Material
Neodymium (N35H)
Magnet Weight
0.4 oz


Thiele
Small Parameters

Equivalent Volume Vas
16.9L / 0.596ft3
Excursion (one way) Xmax
3mm
Free Air Resonance Fs
58Hz
Mechanical Factor Qms
7.599
Electrical Factor Qes
0.834
Total Factor Qts
0.752
Moving Mass Mms
25.604 g
Compliance Cms
0.2875 mm/N
Bl Factor BI
6.016
Voice Coil Inductance Le
1.4 mH
Diaphragm Area Sd
203.58cm2
DC Resistance Re
3.3 Ohms
Efficiency Bandwidth Product EBP
69.5


Speaker
Measurement

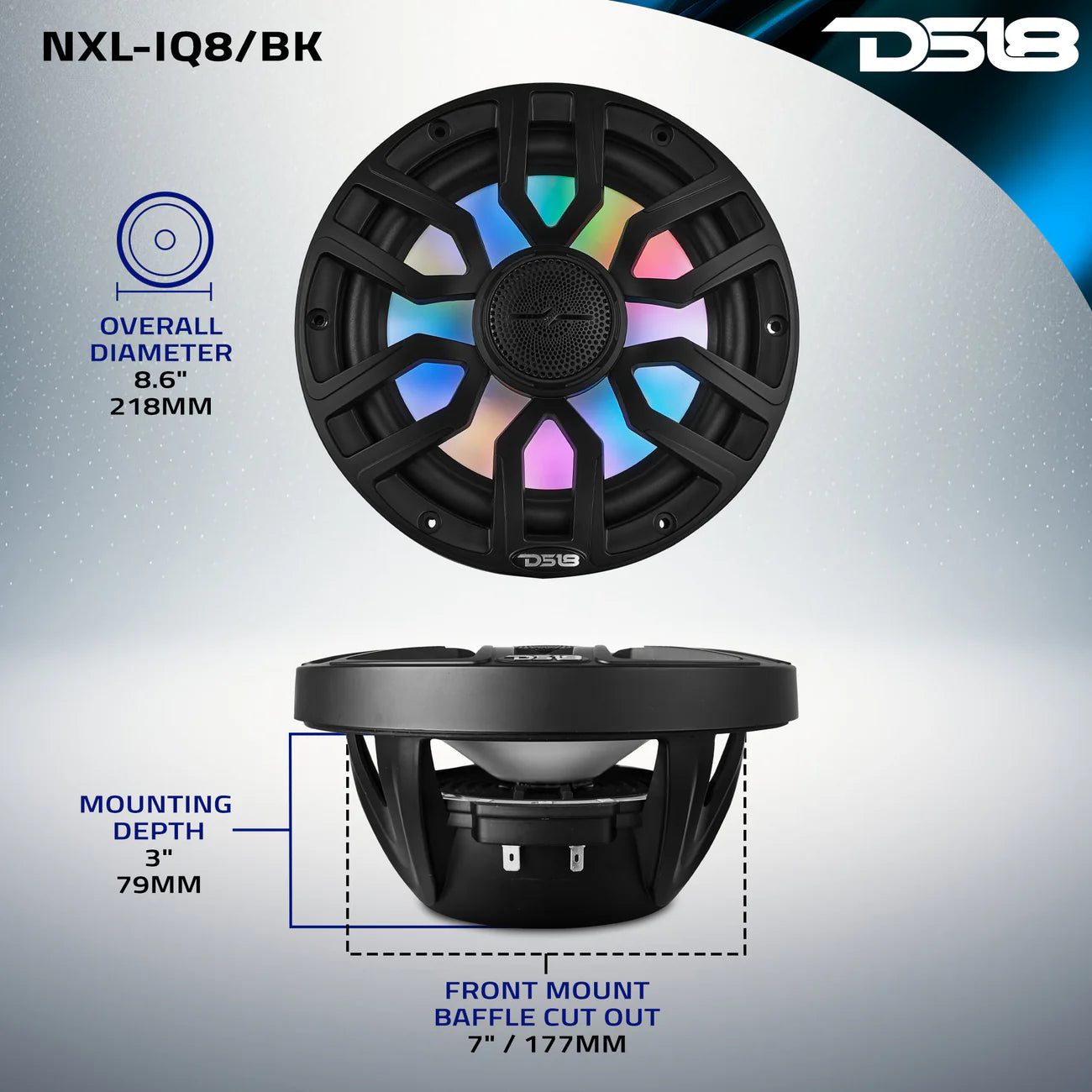

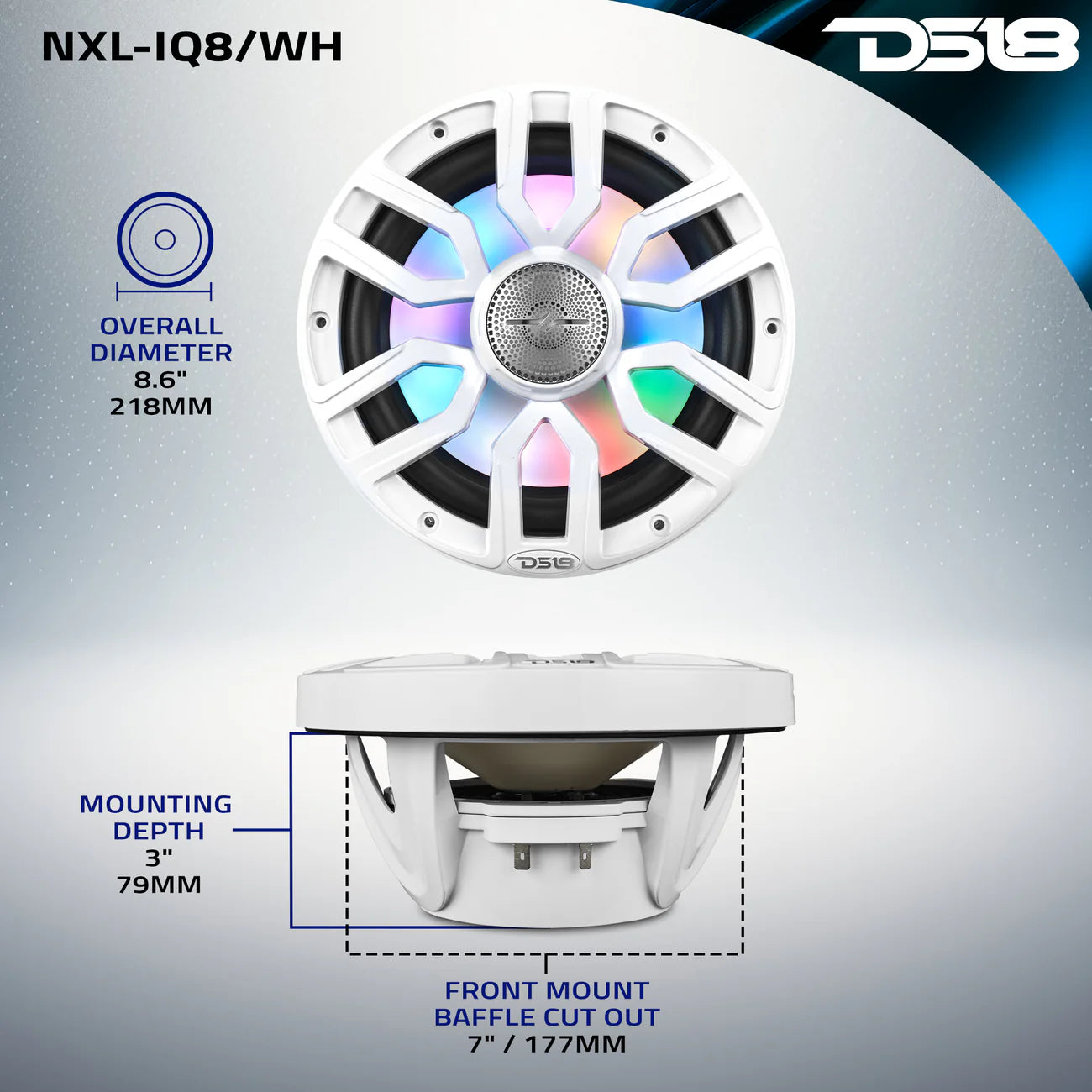

Overall Diameter
8.6" / 218mm
Overall Depth
4.4" / 112mm
Front Mount Baffle Cutout
7" / 177mm
Mounting Depth
3" / 79mm
Motor Diameter
4.5" / 115mm
