DS18 SB37BTX

Amplified Soundbar With Bluetooth® and USB Player

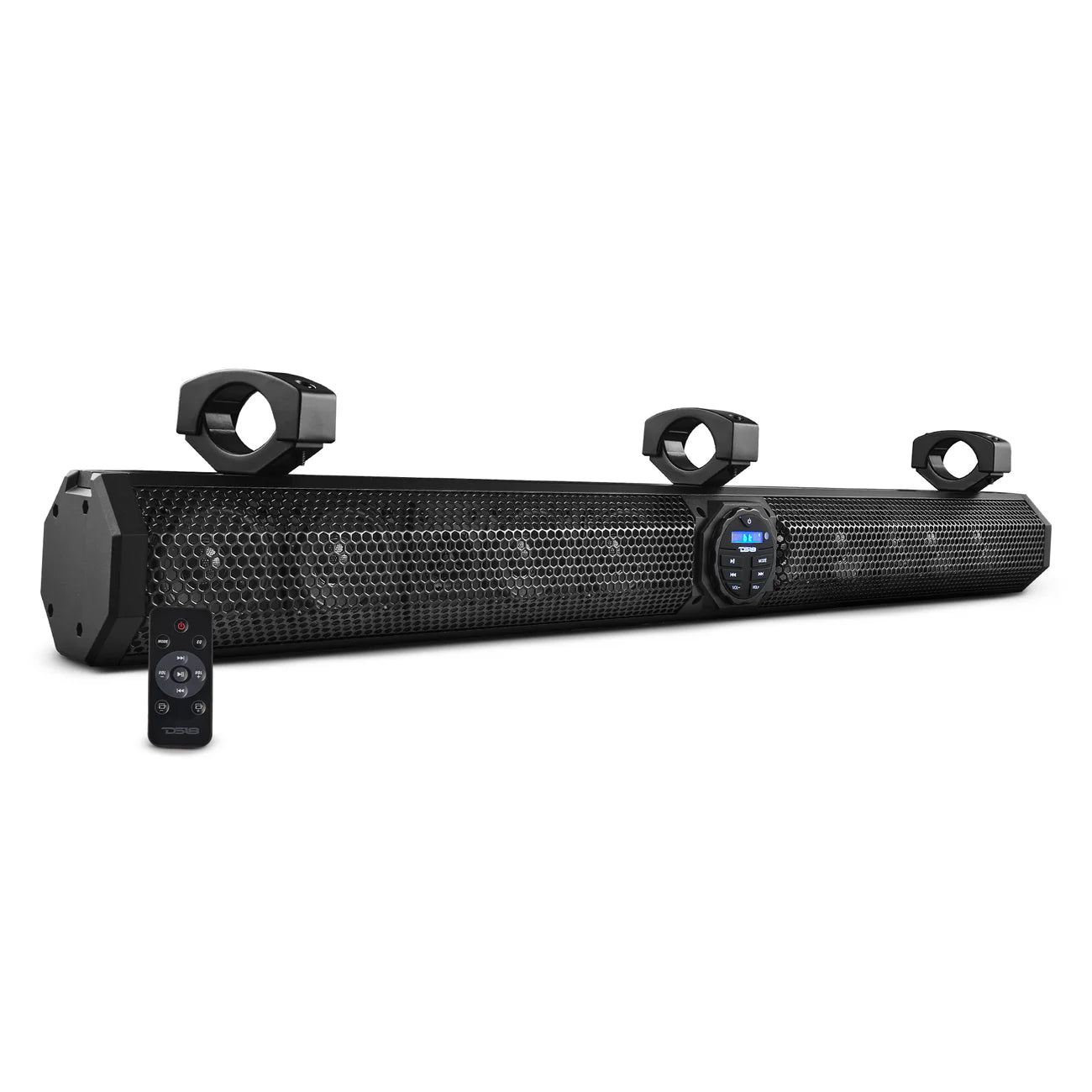

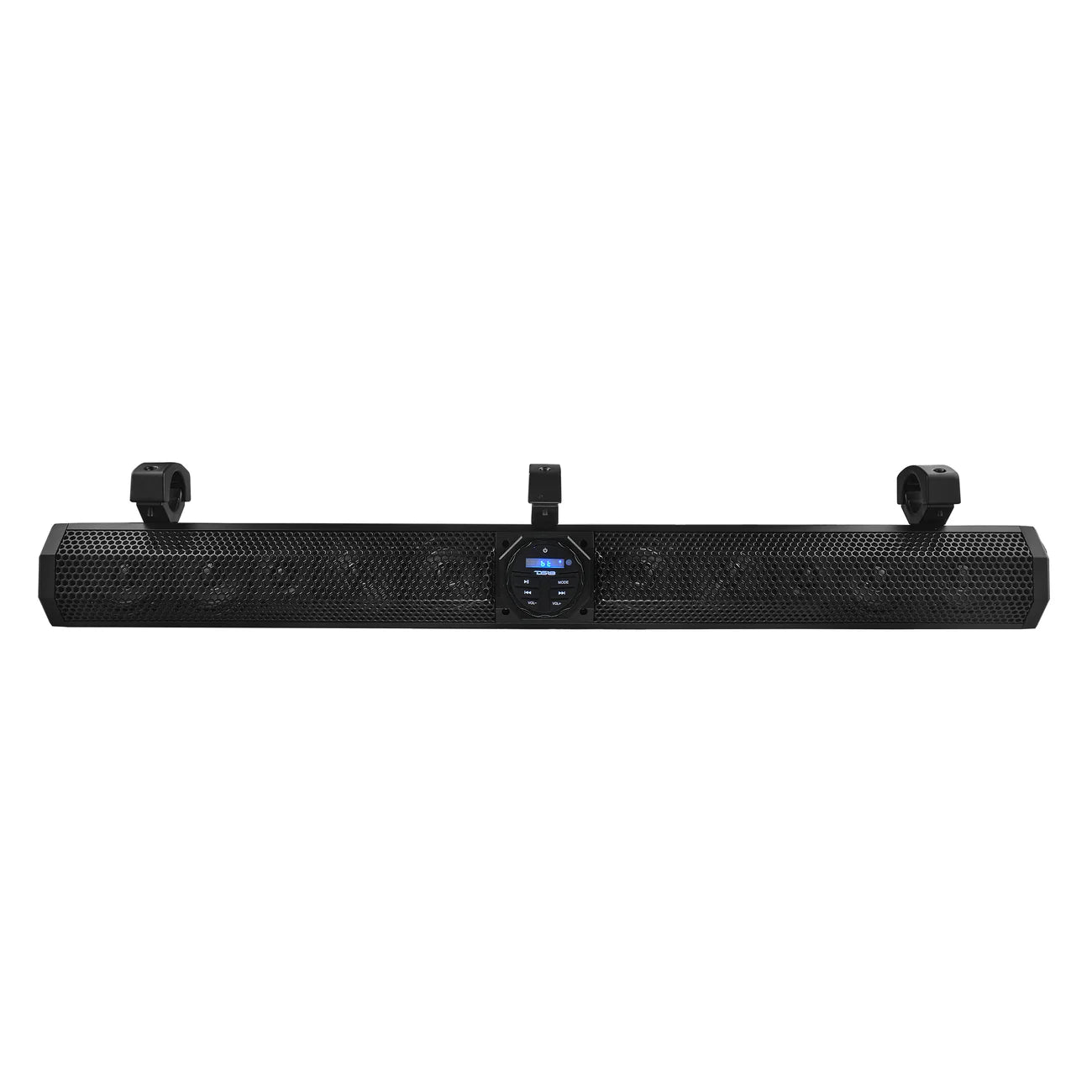

DS18’s SB37BTX is a Bluetooth® soundbar, engineered for serious riders who want their music LOUD and clear.

Built-In Power
Inside the 37.8" frame sits a 200W RMS / 400W Max @ 4Ω amplifier that drives the eight 3" woofers and two 1" tweeters. Designed with water-resistant woofer cones and a frequency response from 45Hz–20kHz, the SB37BTX is your one-piece powerhouse.

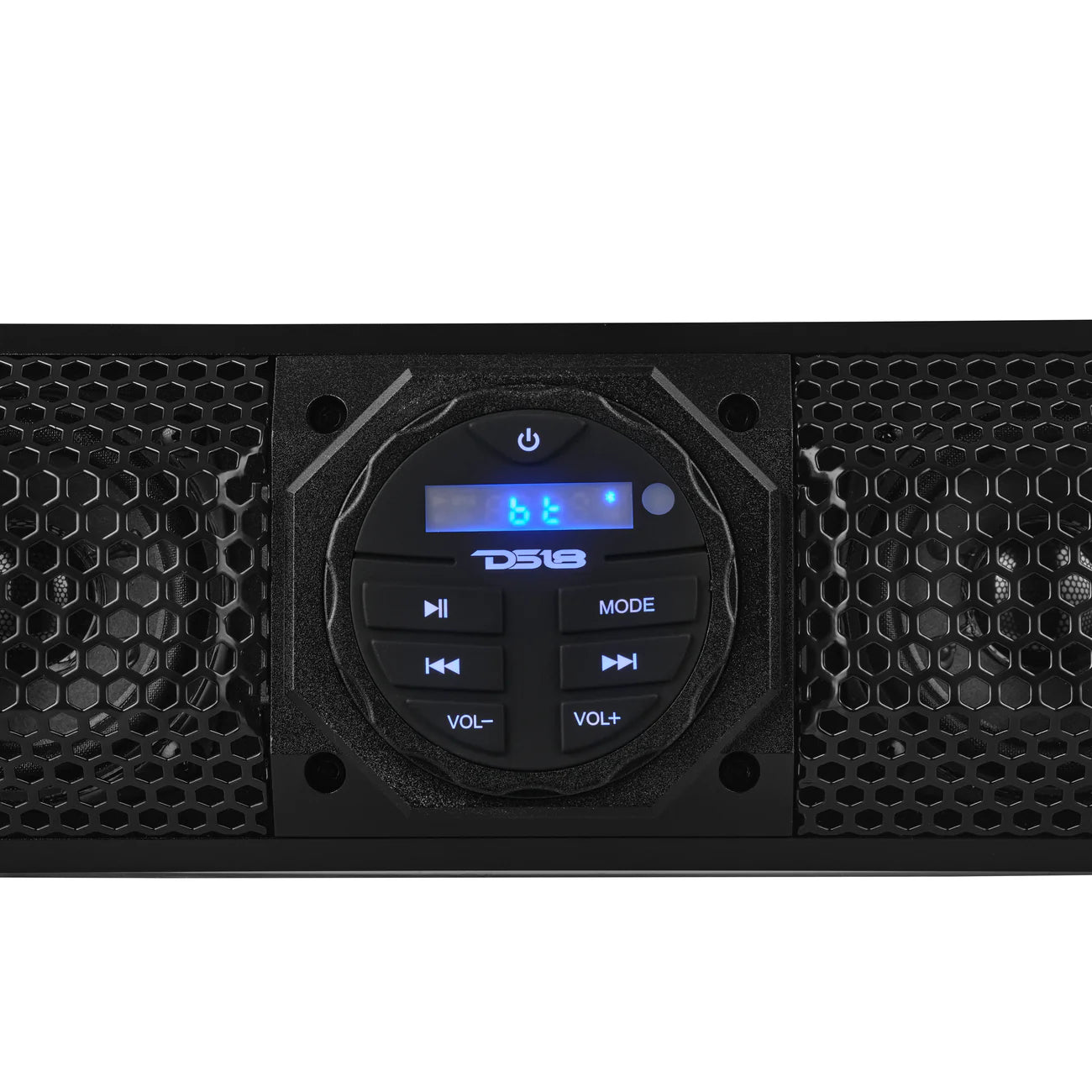

Rotatable Control Panel
Mount it however you’d like—the rotatable interface means easy control from any position.

Multi-Source Input + RCA Output

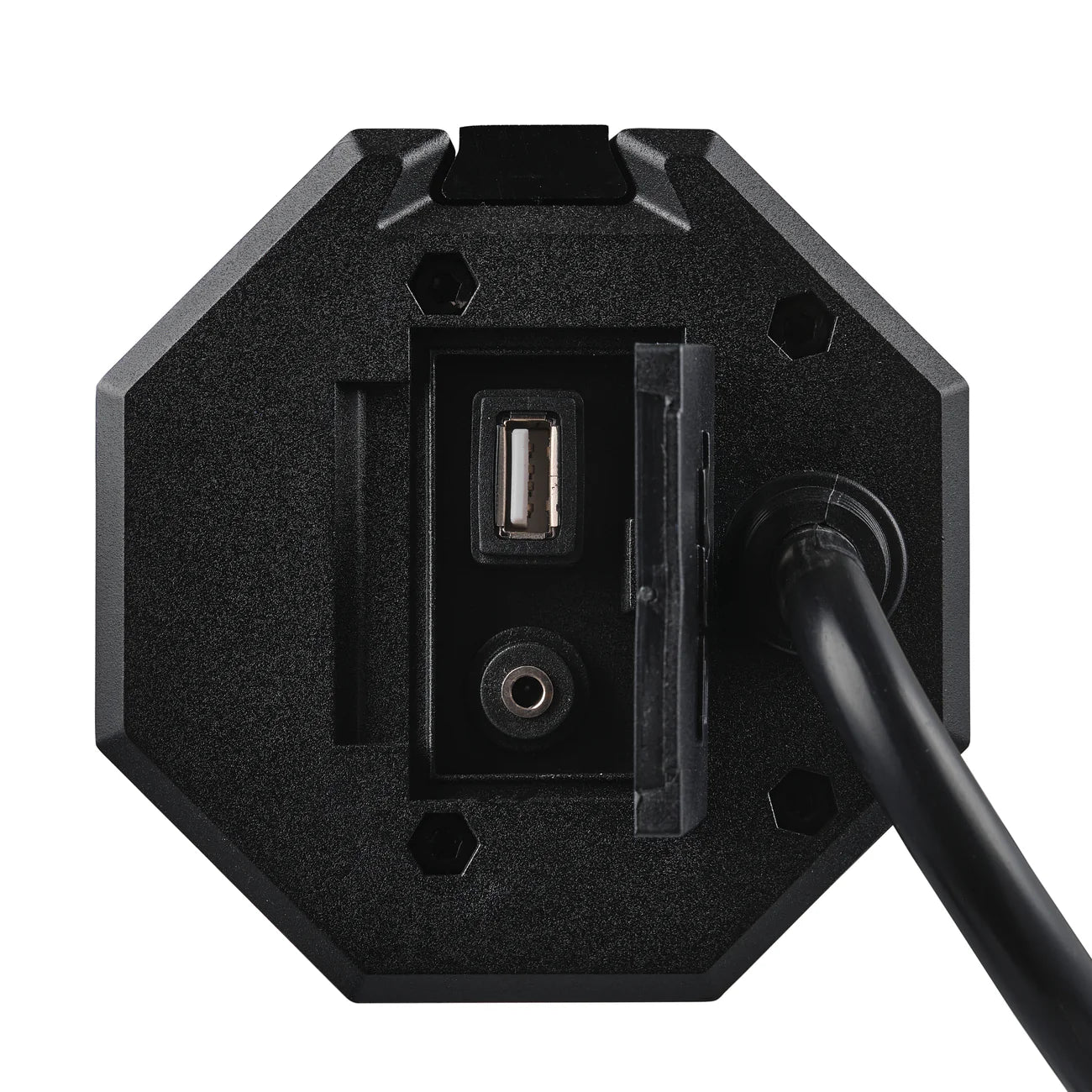

Stream via Bluetooth®, AUX, or USB, then expand your system using the RCA pre-out to connect subs or additional amps for next-level volume.

Secure Mounting Anywhere

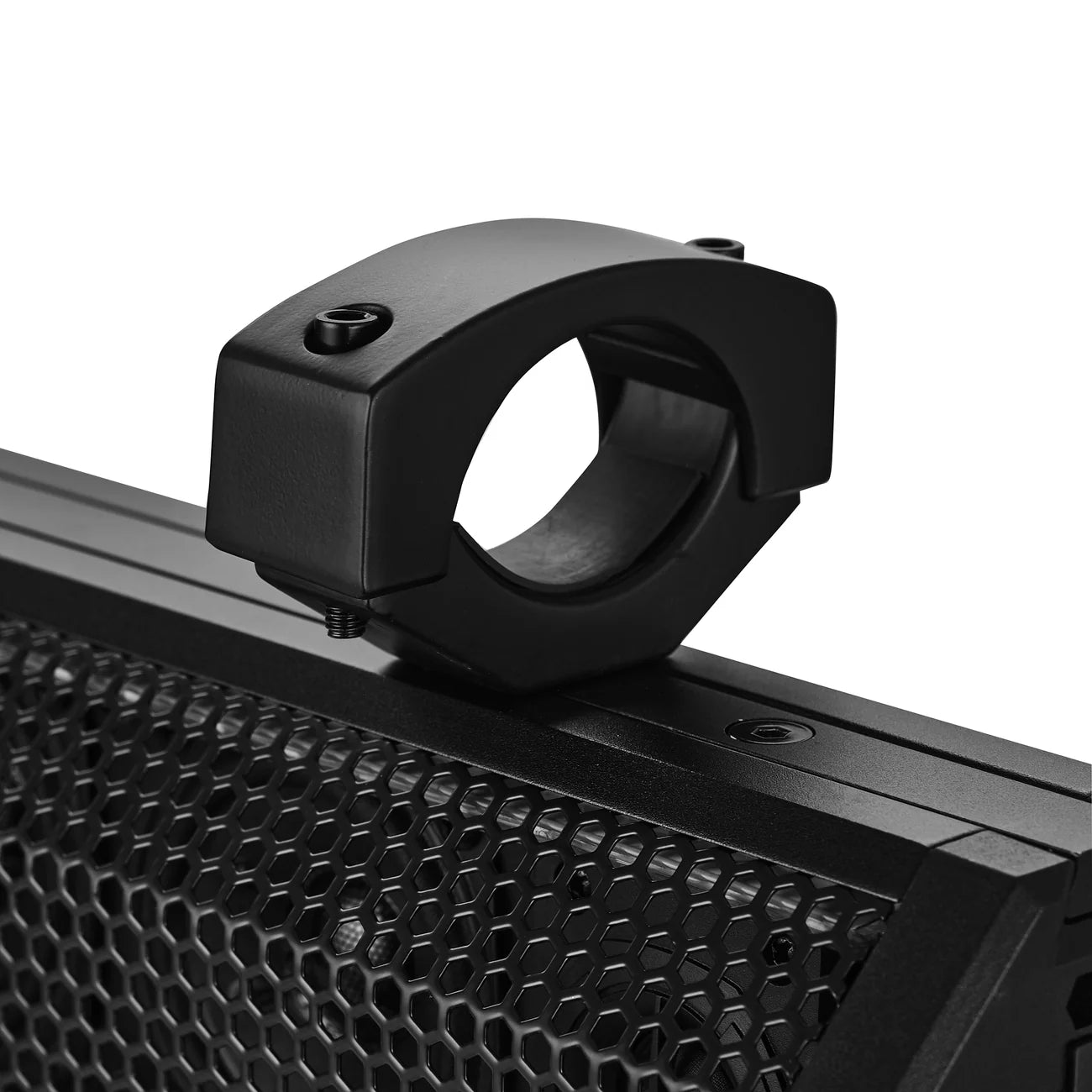

Mount the SB37BTX safely on 1.5” bars using the CLP-SB1.5 bracket clamps from DS18. Built to handle vibration, water, and hard riding, these heavy-duty adaptors make it easy to secure your soundbar on roll cages, rear racks, or ATV/UTV crossbars.

Adventure-Ready
Built with an oxidized black aluminum chassis, steel mesh grille, and IP35 water resistance, this soundbar is ready for mud, splash zones, rain, and real-life riding.

Remote Included

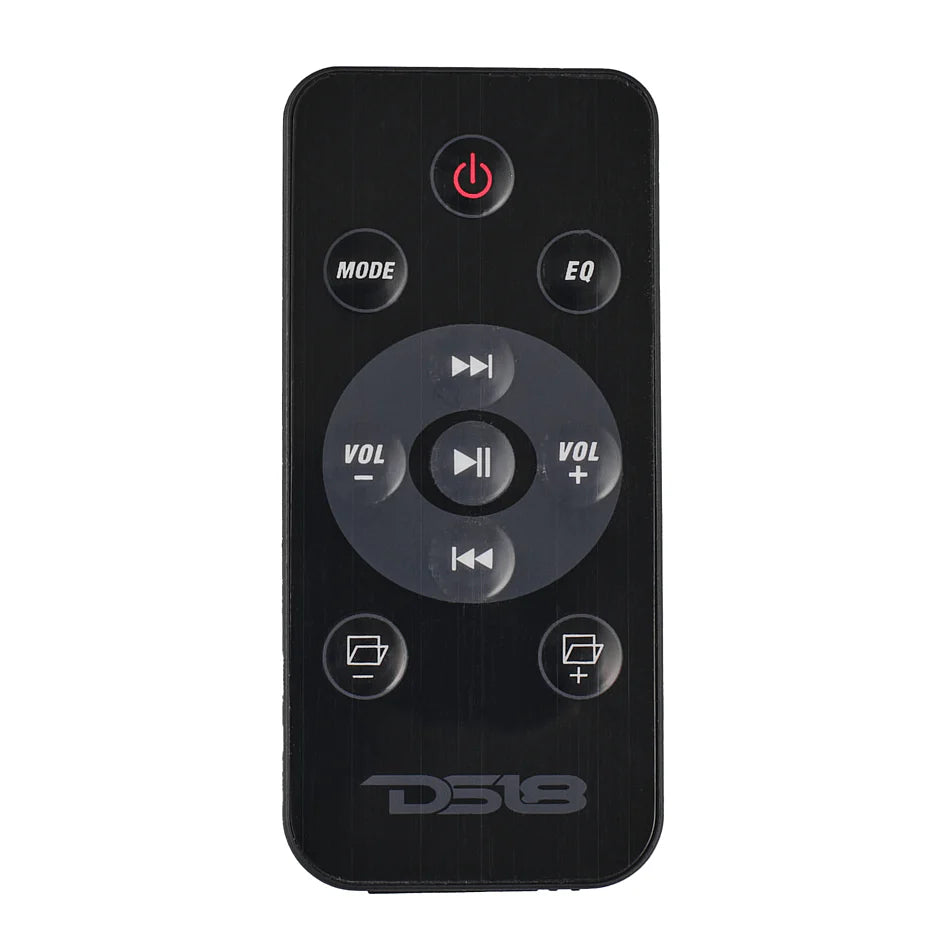

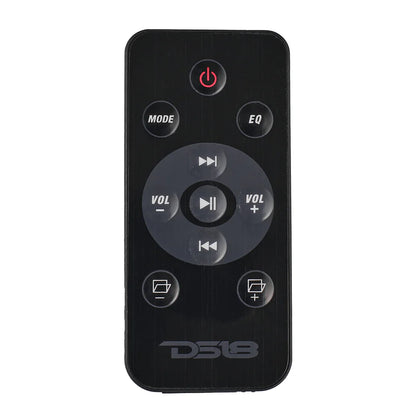

Skip tracks, swap sources, adjust EQ and volume—right from the onboard interface or the included IR remote.

Specifications

SKU
SB37BTX
Nominal Size
37" / 940mm
Total Watts (Peak)
1200W
RMS Power @ 4 ohm (Internal Amp)
200W
MAX Power @ 4 ohm (Internal Amp)
400W
Frequency Response
45Hz-20KHz
Storage Temperature
5°F ~ 176°F (-15°C ~ 80°C)
Operation Temperature
32°F ~ 140°F (0°C ~ 60°C)
Operation Voltage
12 Volts (10~16 Volts Range)


Body / Features

Marine Grade Type
IP35
Body Material / Color / Finish
Aluminum / Oxidized Black Hemp Sand
Grill Type
Steel Mesh
Qty on box
1 Pcs

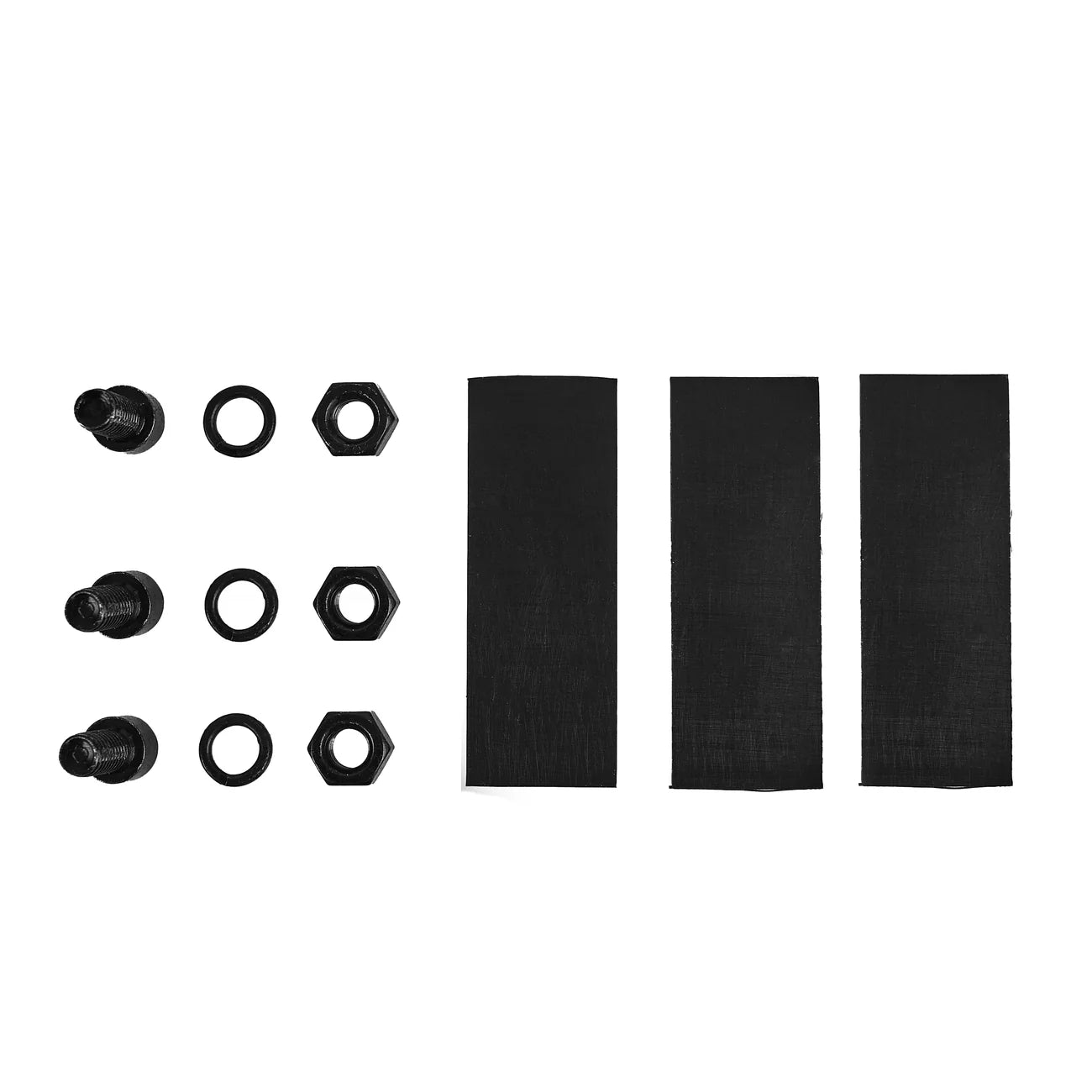

Clamps
3 Set (Tube Clamp Adjustable 1.5" ~ 2.25")
Front Logo
Yes
RCA Line Out (Pre-Amp)
Yes (L/R 2 Volts)
Aux Line Input
Yes (720mV)
EQ / DSP
5 Preset EQ (for BT and USB Mode)
Remote Out
Yes (+12V)
USB Player
Yes (WMA, MP3 files)
USB Charger
Yes (1Amp)
Buttons / Controls
Yes (Power, Mode, Play/Pause, Fwd, Bwd, Vol+/Vol-)
Rotatable Control Panel
Yes (345?)
Remote Control
Yes (IR Card Type)
Illumination
Yes (Blue Backlit)
Bluetooth Version
v5.0
Audio Protocols
A2DP
Range
>33ft (10m)* / Class 2
Voice Coil Former Material
Kapton
Cone Material
Water Resistant Paper
Surround Material
Cloth
Basket Material
Steel
Magnet Material
Ferrite
Motor Diameter
2.36" / 60mm


Tweeter Specifications

Nominal Diameter
0.94" / 24mm (2 Pcs)
Voice Coil Diameter
0.8" / 20.4mm
Type
Dome
Diaphragm Material
Soft Dome
Magnet Material
Neodymium
Crossover
6dB/oct


Amplifier Specifications

Amplifier Class
Class A/B
Amplifier Type
Stereo Full Range
Number of Channels
8
Minimum Impedance
4 ohm
Signal to Noise Ratio
68dB
T.H.D.
1% @ 1000Hz
Channel Separation
60dB
Audio Source
BT / USB / AUX
Power Input Wire Size
2x14ga
Recommend Fuse Size
15A
MAX Current Draw
11A
Thermal Protection
Yes (>284?F / 140?C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
No


Measurements

Overall Width
37.8" / 960 mm
Overall Height
3.98" / 101 mm
Overall Depth
3.98" / 101 mm
